18.5” LCD Color Monitor HCL HCMELWBT11
10

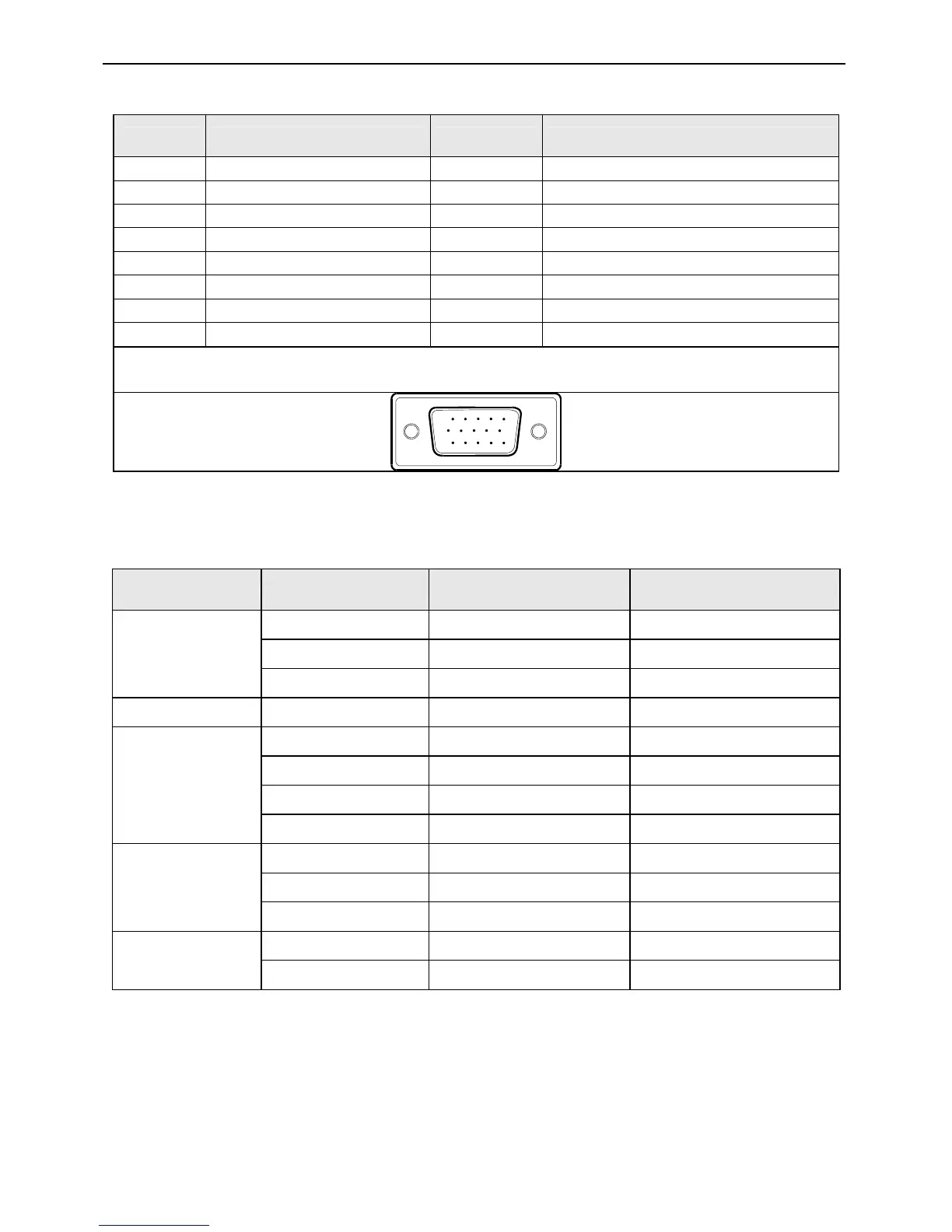

4. Input/Output Specification
4.1 Input Signal Connector
Pin No. Description Pin No. Description
1. Red 9. +5V
2. Green 10. Logic Ground
3. Blue 11. Monitor Ground
4. Monitor Ground 12. DDC-Serial Data
5. DDC-return 13. H-Sync
6. R-Ground 14. V-Sync
7. G-Ground 15. DDC-Serial Clock
8. B-Ground
15 - Pin Color Display Signal Cable
15
6
10
11 15
4.2 Factory Preset Display Modes
Standard
Resolution Horizontal Frequency(KHz) Vertical Frequency(Hz)
640×480 @60Hz 31.469 59.940
640×480 @72Hz 37.861 72.809
VGA
640×480 @75Hz 37.500 75.000
DOS-Mode 720×400 @70Hz 31.469 70.087
800×600 @56Hz 35.156 56.250
800×600 @60Hz 37.879 60.317
800×600 @72Hz 48.077 72.188
SVGA
800×600 @75Hz 46.875 75.000
1024×768 @60Hz 48.363 60.004
1024×768 @70Hz 56.476 70.069
XGA
1024×768 @75Hz 60.023 75.029
1360x768@60HZ 47.712 60.015
WXGA
1366x768@60HZ 47.765 59.85
