HearthStone Quality Home Heating Products Inc Stowe Model #8321
02044-1
11

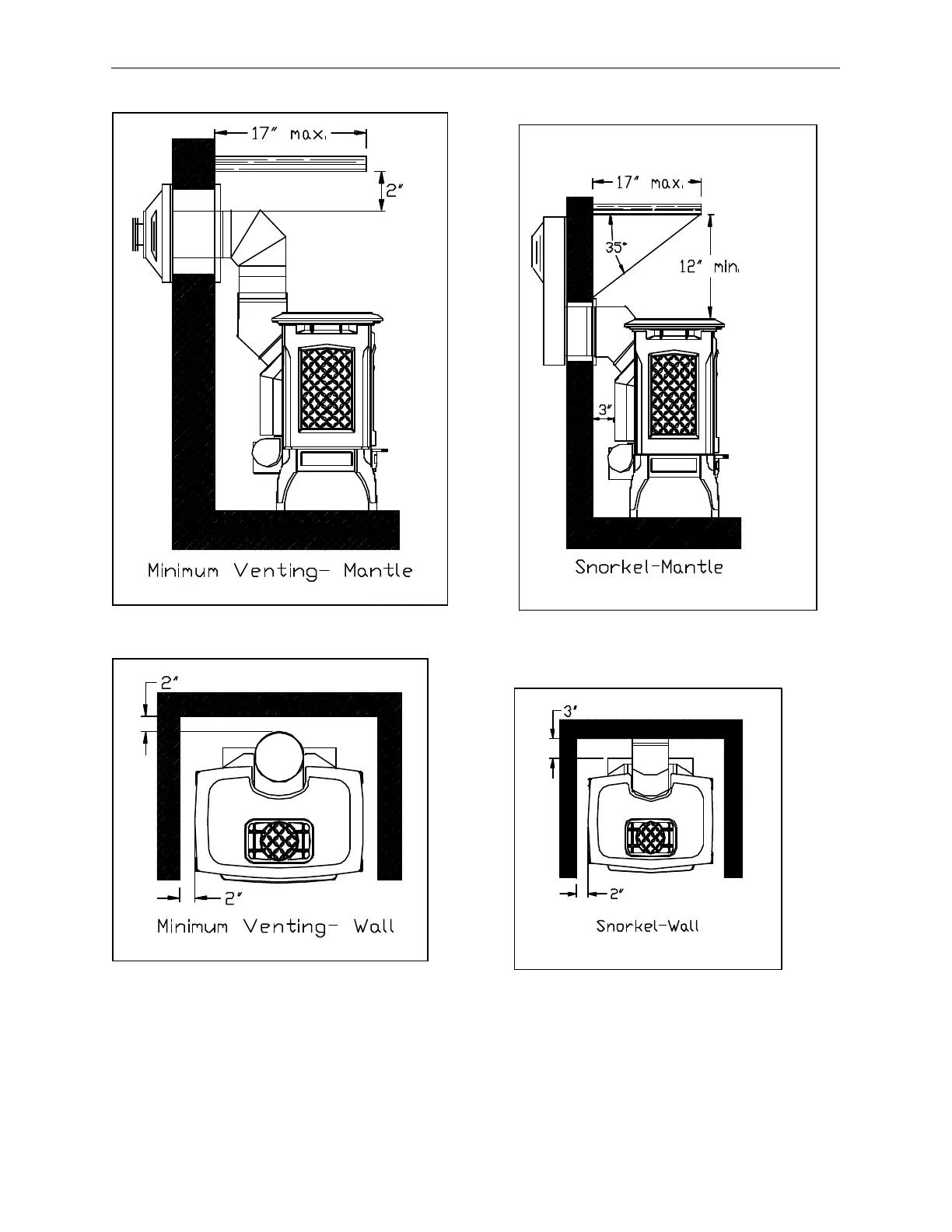

Figure 2: Minimum Venting-Mantle Clearance To
Combustibles
Figure 3: Minimum Venting-Wall Clearance To
Combustibles
Figure 4: Snorkel-Mantle Clearance To
Combustibles
Figure 5: Snorkel-Wall Clearance To
Combustibles
The corner clearance for the Stowe is 2”
to be measured from the edge of the top
castings, to the adjacent wall.
