HearthStone Quality Home Heating Products Inc Stowe Model #8321
02044-1
16
Centerline of
vent, with a 45
degree elbow
attached.
45 degree elbow
wall thimble cover
9"straight
wall thimble
14" snorkel

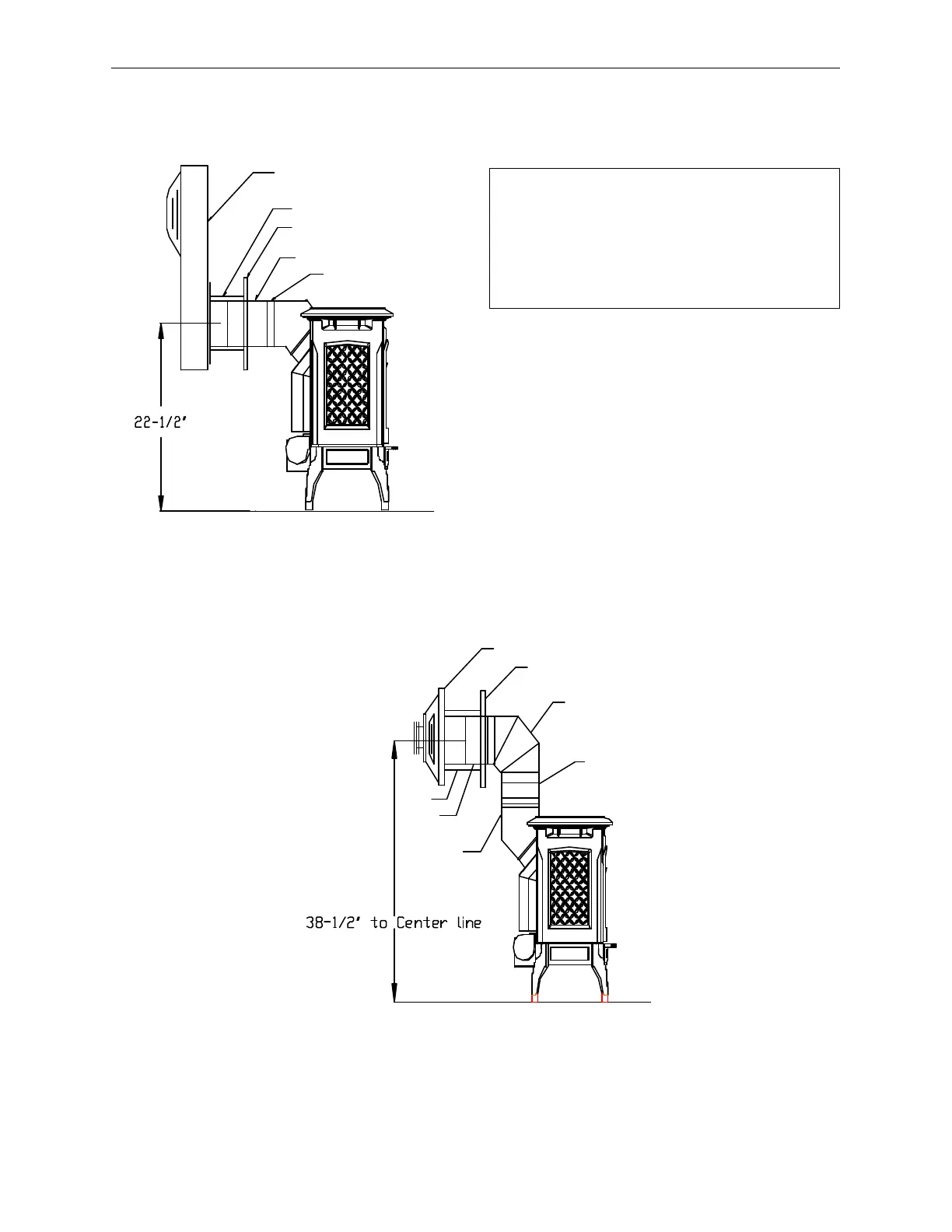

Figure 10: Components For a Typical Snorkel Installation
907B
942
940
945B
907B
990B
984
Figure 11: Components for a Typical Minimum Horizontal Venting Installation
Centerlines shown are approximate.
Please dry fit your venting and take a
measurement. Pipe dimensions will vary
by manufacturer and supplier.
See installation instructions on page 23.
