APPROVED CONFIGURATION FOR FIREPLACE INSTALLATION
• The termination must fall within the demarcation line shown in illustration. Use the indicated
restriction plate position. Restriction plate # 5950-922.

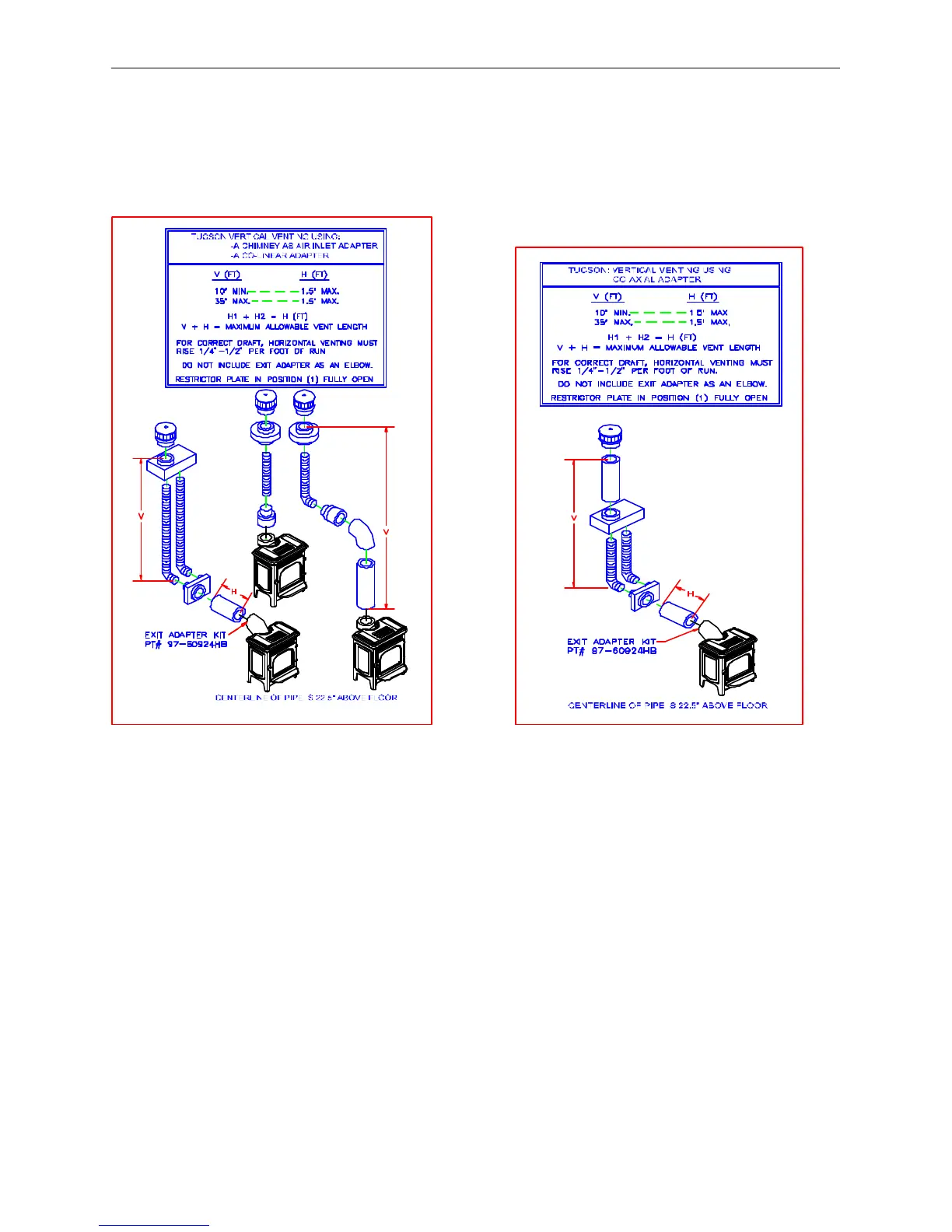

Figure 17: Co-Linear & Chimney as Air Inlet
Figure 18: Co-Axial Installation
The use of an existing chimney as an air
intake is not covered under the ANSI
Z21.88-1998-CSA 2.33-M98 test methods
and the resulting ITS/WHI product
certification. The code Authority Having
Jurisdiction must be consulted prior to
proceeding with this installation method.
WARNING: Failure to use only parts
specifically approved with this appliance
may result in property damage or personal
injury.
