IF THERMOSTAT IS NOT SYSTEM POWERED
REPLACE WITH ALKALINE BATTERIES ONCE EVERY YEAR
USE “AA” SIZE
ALKALINE BATTERIES
USE “AA” SIZE
ALKALINE BATTERIES
ELEC
GAS
HP
GAS
Page 16

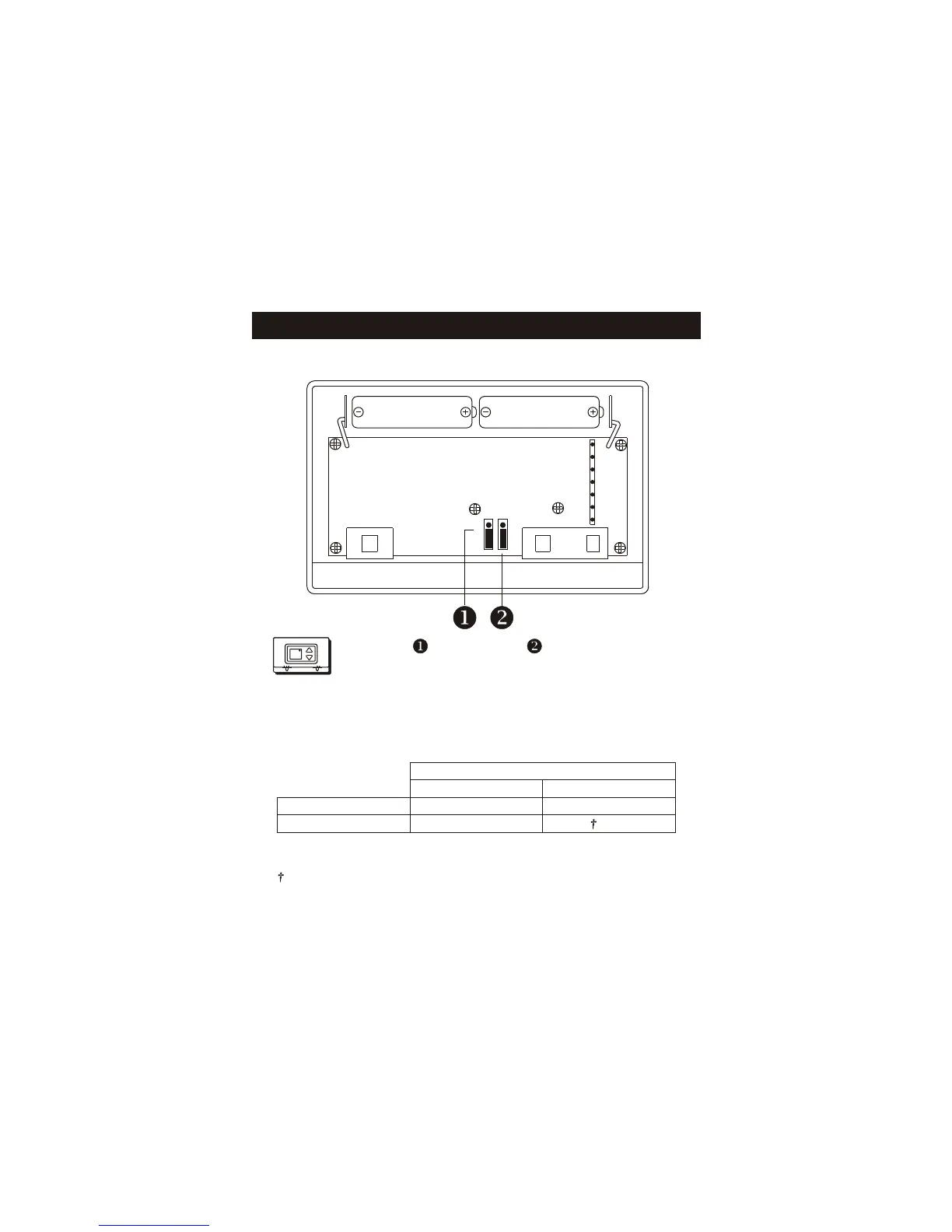

Step #5 Jumper Configuration
Figure-C)
72
Heat
Off
Cool
Fan On
FanA uto
OUTPUTS
No Demand With Demand
Cooling Mode
Heating Mode
O*
Y, G, O*
B**
Y , G, B**
Jumper and Jumper are used to select
heat pump operation. Note: Thermostat
Does Not Have Auxiliary Heat / Emergency
Heat Capability. Leave jumpers in original
factory default positions (figure-A) for non
heat pump applications.
* Output active in Cooling
** Output active in Heating
Y active in Heating
To Next Page
