4 598-1306-02
RANGE
ON-TIMEDUALBRITE™
MAX
DUSK TO
DAWN
TEST 1 5
(MINS)
6 3
HRS
OFF
MIN
Check Operation and Adjustment
Note: When rst turned on or when switching modes wait 30
seconds.
Note: Meets the ENERGY STAR
®
guidelines when DualBrite
®
function is off.
Locate the RANGE control and ON-TIME control on the motion
sensor:
The RANGE control and ON-TIME control are located on the bottom
of the motion sensor. Using your ngernails or a small, at-head
screwdriver, gently pry the cover until it opens.
1. Check Operation. Set the ON-TIME control to TEST mode. Walk in
front of motion sensor. The LED indicator light shouldash when
motion is detected (see illustration for location of LED light).
2. Adjust Motion Sensor. Turn the RANGE control to the mid posi-
tion and ON-TIME control to the TEST position. Walk through
coverage area noting where you are when the LED begins to
ash. Loosen the clamp screw and move the motion sensor to
change the coverage area. Tighten clamp screw when nished.
Do not overtighten clamp screw.
3. Adjust RANGE Control. To increase sensitivity, turn the RANGE
control toward MAX. To decrease sensitivity, turn the RANGE
control toward MIN. Note: If the RANGE is set too high, false
triggering may result in some environments.
Note: When using test mode to check operation in the day time:
A. Set the DETECT control switch to DAY/NIGHT and
B. Set the ON-TIME control to TEST.

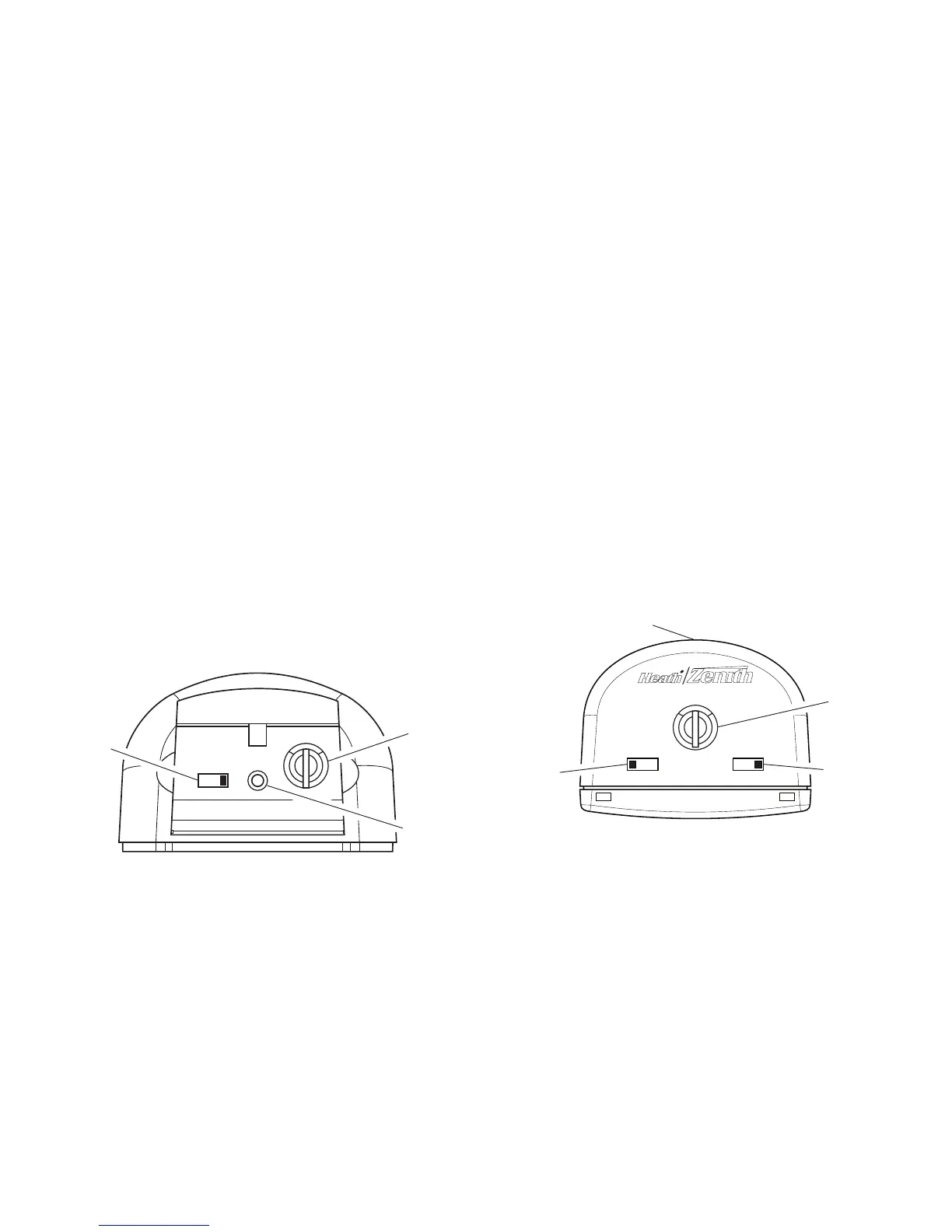

180° Motion Sensor Controls
240° Motion Sensor Controls
4. Set ON-TIME Control. Determine the amount of time you want
the connected device to stay on after motion is detected (1 or
5 minutes). Slide the ON-TIME control to the corresponding
setting.
DualBrite
®
Dimmer Control
(240° Motion Sensor Only)
Light comes on half power for selected time after dusk (Off, 3 or
6 hours, until dawn). When motion is sensed, the light turns on
full power for the selected ON-TIME (1 or 5 minutes) then returns
to accent mode.
1.
Select amount of time desired for accent lighting (DualBrite
®
control).
Off
3 Hours
6 Hours
Dusk to Dawn
IMPORTANT: Avoid Aiming Motion Sensor At:
Objects that change temperature rapidly, such as heating vents,
fans, and air conditioners. These air sources could cause false
triggering.
Areas where pets or trafc may trigger the control.
Nearby large, light colored objects reecting light may trigger the
shut-off feature. Do not point other lights at motion sensor.
LED
Indicator
LED Indicator
Range
Control
Range
Control
ON-TIME
Control
ON-TIME
Control
D
ualBrite
®
Control
