Heath Zenith Motion Sensing 3-Way Wall Switch SL-6107 User Manual

-5-
595-4514-14
2. Replace Other Switch.
❐ Turn the power off at the circuit breaker.
❐ Remove and disconnect the old switch.
Note: If you can’t tell which wire is common, etc., connect the wires
in the following steps as best you can, then follow the test on the
next page.
❐ Connect the black motion sensor wire to the common wire.
❐ Connect the brown motion sensor wire to the jumpered wire on
the remote switch.
❐ Connect the red motion sensor wire to the non-jumpered wire.
❐ Connect the green motion sensor wire to the ground wire.

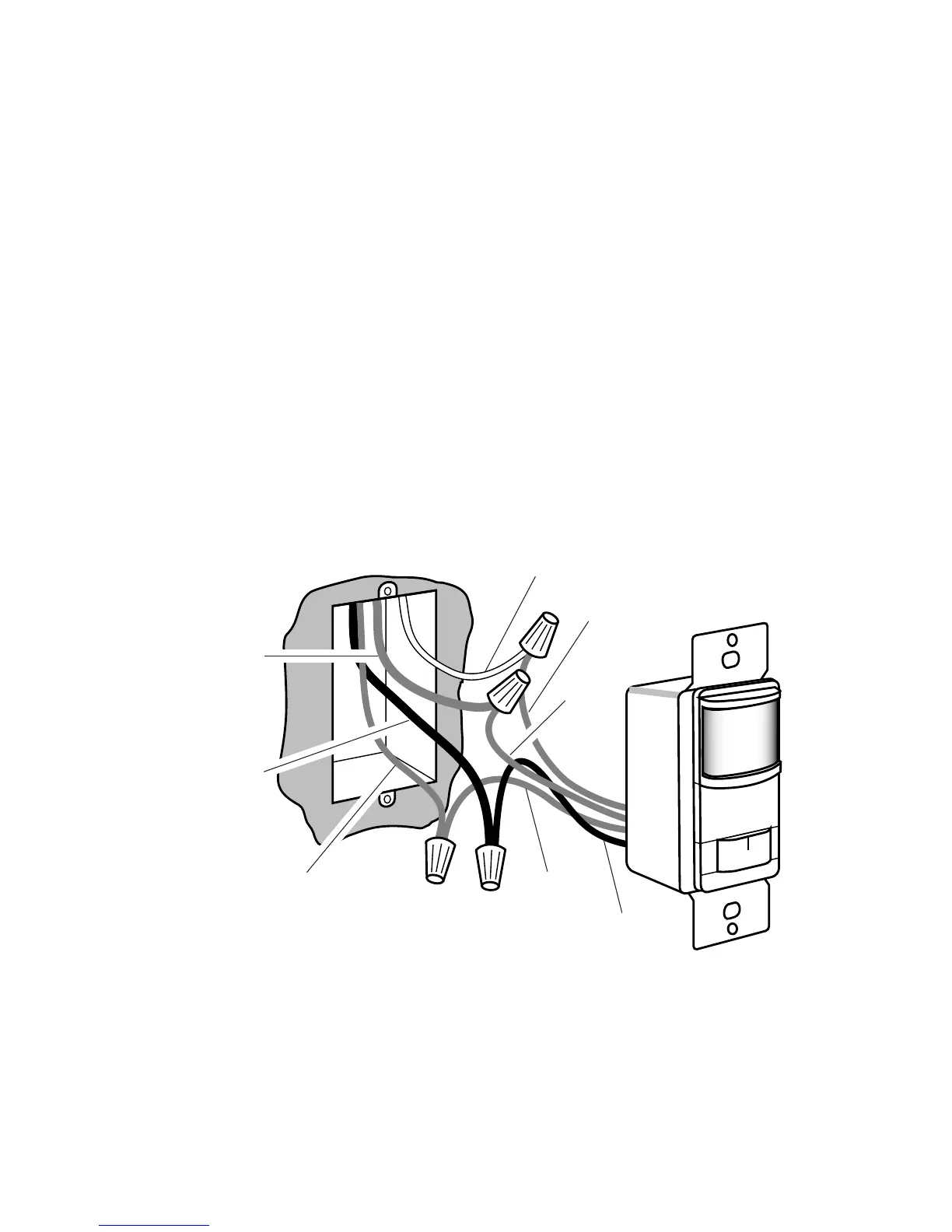

Connect the SL-6107 to Existing Wiring
INSTALLATION
N
O
AUTO
OF
F
Jumpered Wire
Brown
Wire Removed
from Common
Ground Wire
(Green or Bare Wire)
Black
Green
Non-Jumpered
Red
