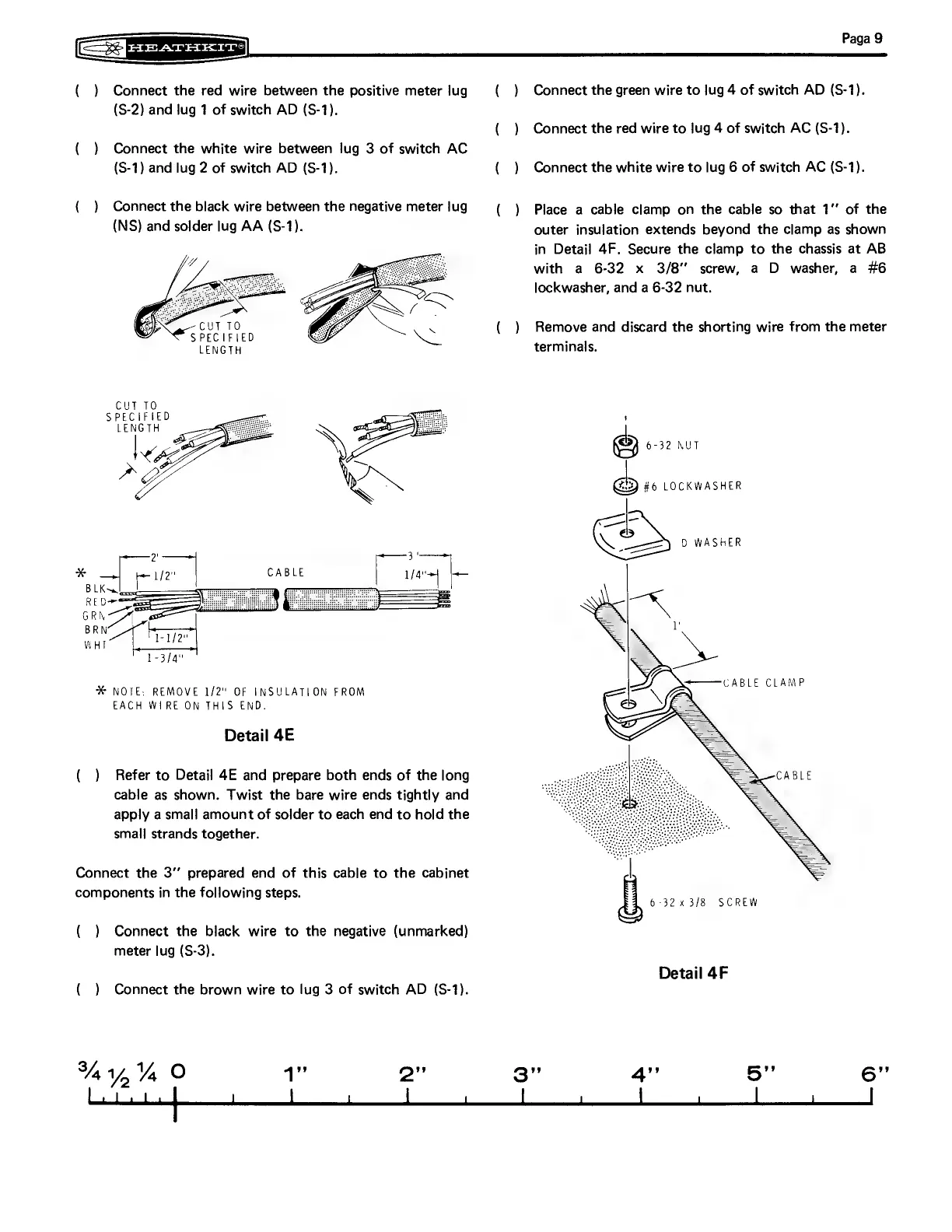

Gaeguearixkite
(_
)
Connect
the
red
wire
between
the
positive
meter
lug
(S-2)
and
lug
1
of
switch
AD
(S-1).
(_
)
Connect
the
white
wire
between
lug
3
of
switch
AC
(S-1)
and
lug
2
of
switch
AD
(S-1).
(
)
Connect
the
black
wire
between
the
negative
meter
lug
(NS)
and
solder
lug
AA
(S-1).
CUT
TO
SPECIFIED
LENGTH
on
3"
*
1/2"
CABLE
1/4"
<—
Bikohod
an
%
NOTE:
REMOVE
1/2"
OF
INSULATION
FROM
EACH
WIRE
ON
THIS
END.
Detail
4E
(_
)
Refer
to
Detail
4E
and
prepare
both
ends
of
the
long
cable
as
shown.
Twist
the
bare
wire
ends
tightly
and
apply
a
small
amount
of
solder
to
each
end
to
hold
the
smalj
strands
together.
Connect
the
3”
prepared
end
of
this
cable
to
the
cabinet
components
in
the
following
steps.
(_
)
Connect
the
black
wire
to
the
negative
(unmarked)
meter
lug
(S-3).
(_
)
Connect
the
brown
wire
to
lug
3
of
switch
AD
(S-1).
Ya,
Va
Oo
4”
2”
Paga
9
(_
)
Connect
the
green
wire
to
lug
4
of
switch
AD
(S-1).
(_
)
Connect
the
red
wire
to
lug
4
of
switch
AC
(S-1).
(
)
Connect
the
white
wire
to
lug
6
of
switch
AC
(S-1).
(
)
Place
a
cable
clamp
on
the
cable
so
that
1"
of
the
outer
insulation
extends
beyond
the
clamp
as
shown
in
Detail
4F.
Secure
the
clamp
to
the
chassis
at
AB
with
a
6-32
x
3/8"
screw,
a
D
washer,
a
#6
lockwasher,
and
a
6-32
nut.
(
)
Remove
and
discard
the
shorting
wire
from
the
meter
terminals.
S
6-32
NUT
&
#6
LOCKWASHER
D
WASHER
|
U
6-32
x
3/8"
SCREW
Detail
4F
5”’
6”
SE
(NS
