Page 6 Gee gHeasatHKiT?
CIRCUIT
BOARD
|
6-32 nut @

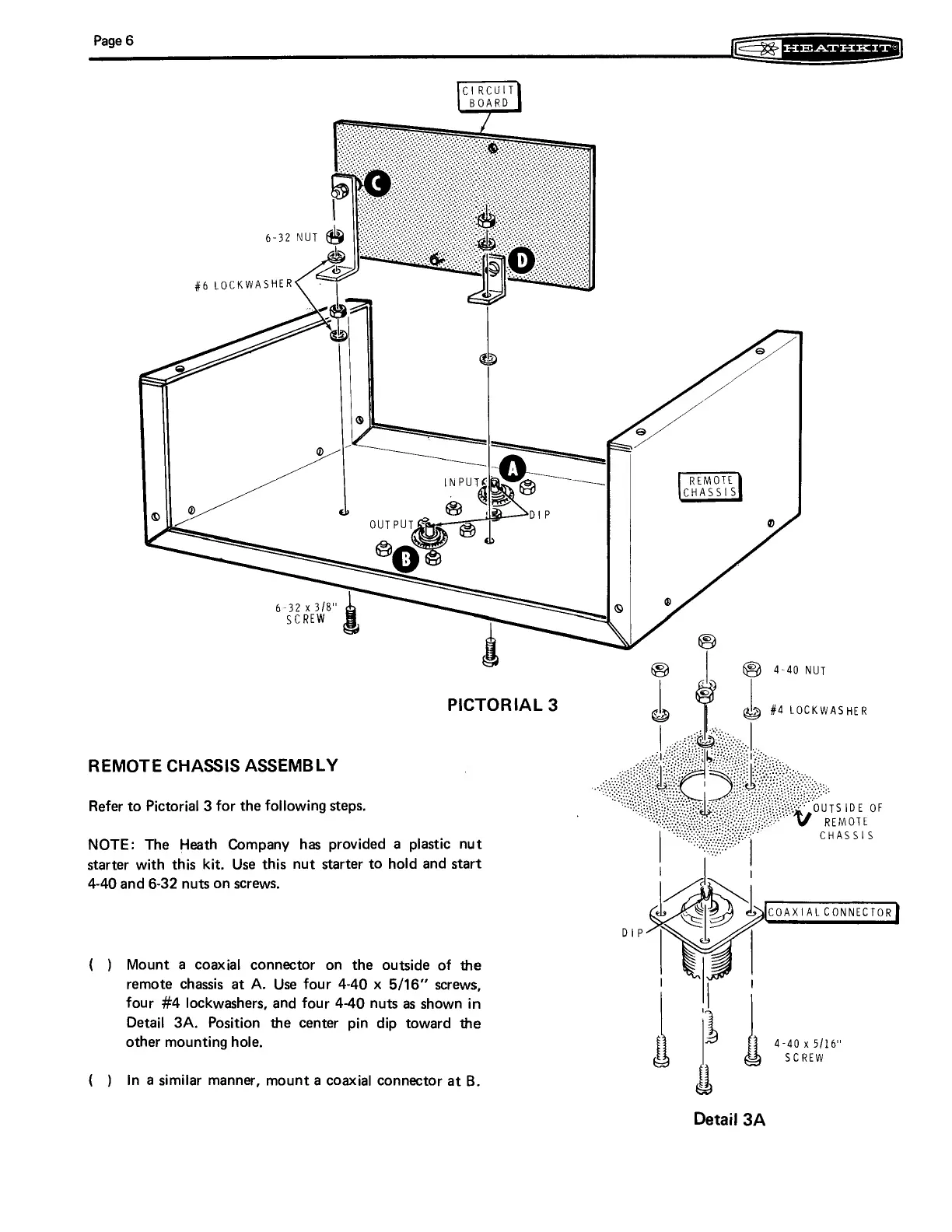

PICTORIAL 3
REMOTE CHASSIS ASSEMBLY
Refer to Pictorial 3 for the following steps.
NOTE: The Heath Company has provided a plastic nut
starter with this kit. Use this nut starter to hold and start
4-40 and 6-32 nuts on screws.
(_ ) Mount a coaxial connector on the outside of the
remote chassis at A. Use four 4-40 x 5/16” screws,
four #4 lockwashers, and four 4-40 nuts as shown in ;
Detail 3A. Position the center pin dip toward the 3
1 |
4-40 x 5/16"
SCREW
other mounting hole.
( ) In a similar manner, mount a coaxial connector at B. &
Detail 3A
