given detailed instructions on how to
install and solder the first part on the
circuit board. Read and perform each
step carefully. Then use the same
procedure whenever you install
parts on the circuit board.
| (47 Position the circuit board as
shown with the printed side
(not the foil side) up.
In the following steps, you will be |
( ) R49: Hold a 3000 © (orange-
black-red) resistor by the body
as shown and bend the leads
straight down.
( wa Push the leads through the holes
at the indicated location on the
circuit board. The &nd with [
color bands may be positioned
either way. : :
(3 Press the resistor against the cir- |
°F
cuit board. Then bend the leads
outward slightly to hold the re-
sistor in place.
/
L
fi
f

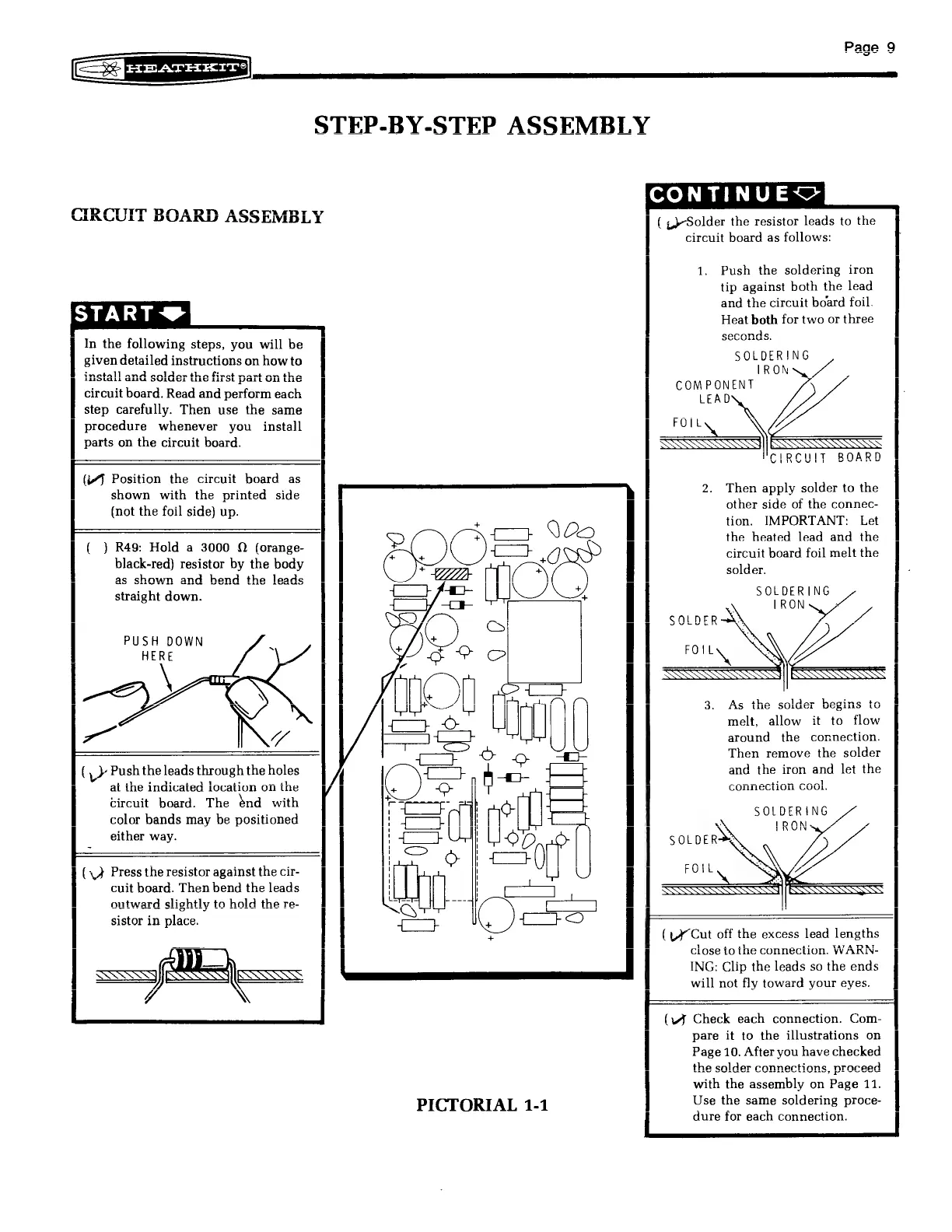

PICTORIAL 1-1
=
t
A Na CO OD |
A ee nse eS PSPS RARE WSO
¢ a
( ,}Solder the resistor leads to the
circuit board as follows:
1. Push the soldering iron
tip against both the lead
and the circuit board foil.
Heat both for two or three
seconds
seconags.
SOLDERING
IRONN Z |
LEAD
2. Then apply solder to the |
other side of the connec-
tion. IMPORTANT: Let
the heated lead and the
circuit board foil melt the
solder. .
SOLDERIN
IR ON
| COMPONENT
begins to
allow it to flow
melt,
around the connection.
Then remove the solder
and the iron and let the
meannuactinn cool
COMMCCIIOM LCUUL,
SOLDERING
IDON.
Eve
(yy Cut off the excess lead lengths
close to the connection. WARN-
ING: Clip the leads so the ends
will not fly toward your eyes.
i. (WW Check each connection. cm |
pare it to the illustrations on
Page 10. After you have checked
SOLDER
the solder connections, proceed |
with the assembly on Page 11.
Use the same soldering proce-
] dure for each connection. |
