Ge
gHEaTHKIT?
Page
19
RUBBER
<)
eS
Eig
e's
<e
=<
Se
Ee
0
-
WA,
.
(Tn
ee
zt
6-32
NUT
Va
i
NS
‘
Pr
snd?
6-32
x3/8"
SCREW
@
©

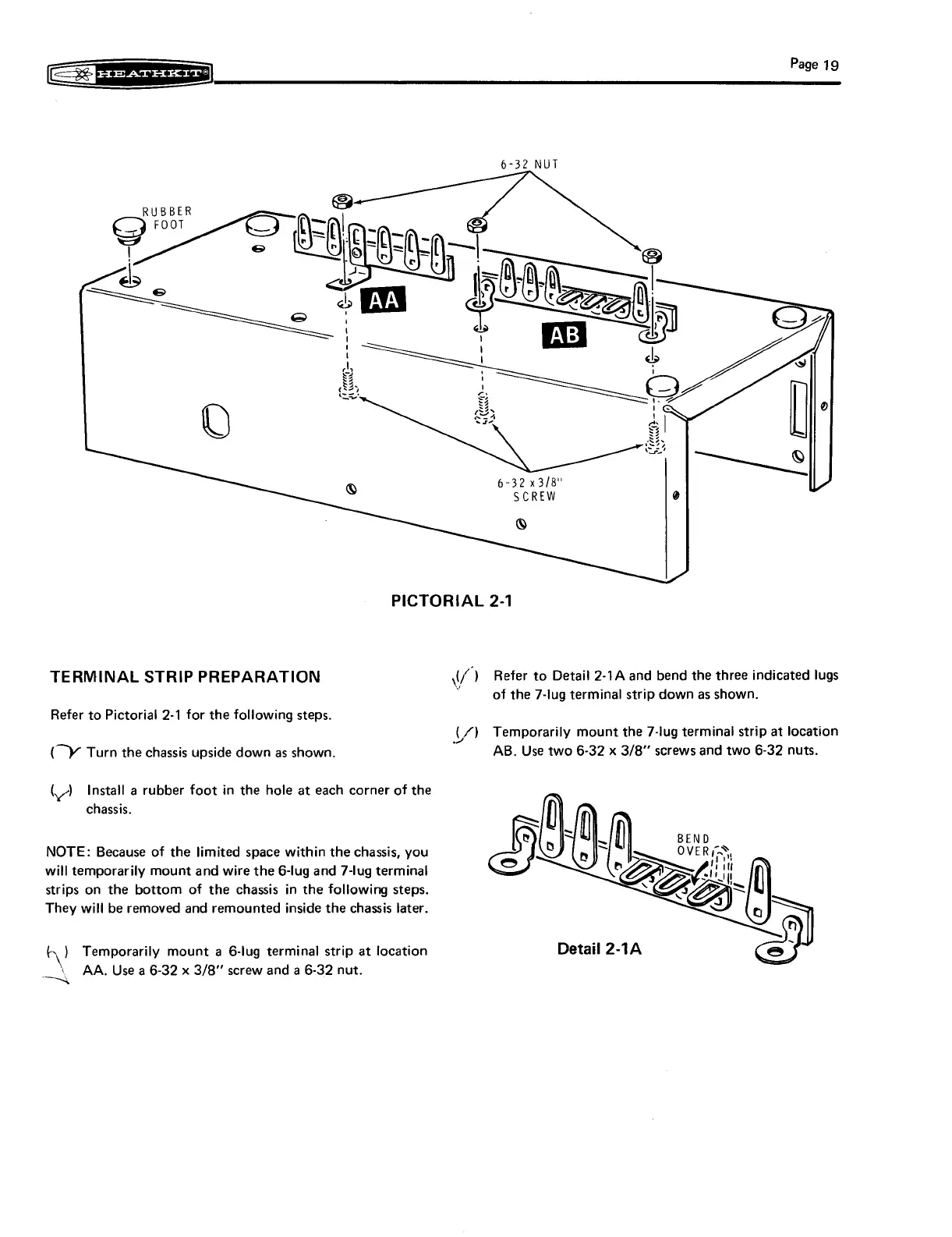

PICTORIAL
2-1
TERMINAL
STRIP
PREPARATION
Refer
to
Pictorial
2-1
for
the
following
steps.
(_¥
Turn
the
chassis
upside
down
as
shown.
(A)
Install a
rubber
foot
in
the
hole
at
each
corner
of
the
chassis.
NOTE:
Because
of
the
limited
space
within
the
chassis,
you
will
temporarily
mount
and
wire
the
6-lug
and
7-lug
terminal
strips
on
the
bottom
of
the
chassis
in
the
following
steps.
They
will
be
removed
and
remounted
inside
the
chassis
later.
h\)
Temporarily
mount
a
6-lug
terminal
strip
at
location
—\
AA.
Use
a
6-32
x
3/8”
screw
and
a
6-32
nut.
WV)
Refer
to
Detail
2-1A
and
bend
the
three
indicated
lugs
.
of
the
7-lug
terminal
strip
down
as
shown.
Temporarily
mount
the
7-lug
terminal
strip
at
location
(7)
“
AB.
Use
two
6-32
x
3/8”
screws
and
two
6-32
nuts.
Detail
2-1A
