Ge
gueaTHKIT?
cla
oF
LO00uF
ap

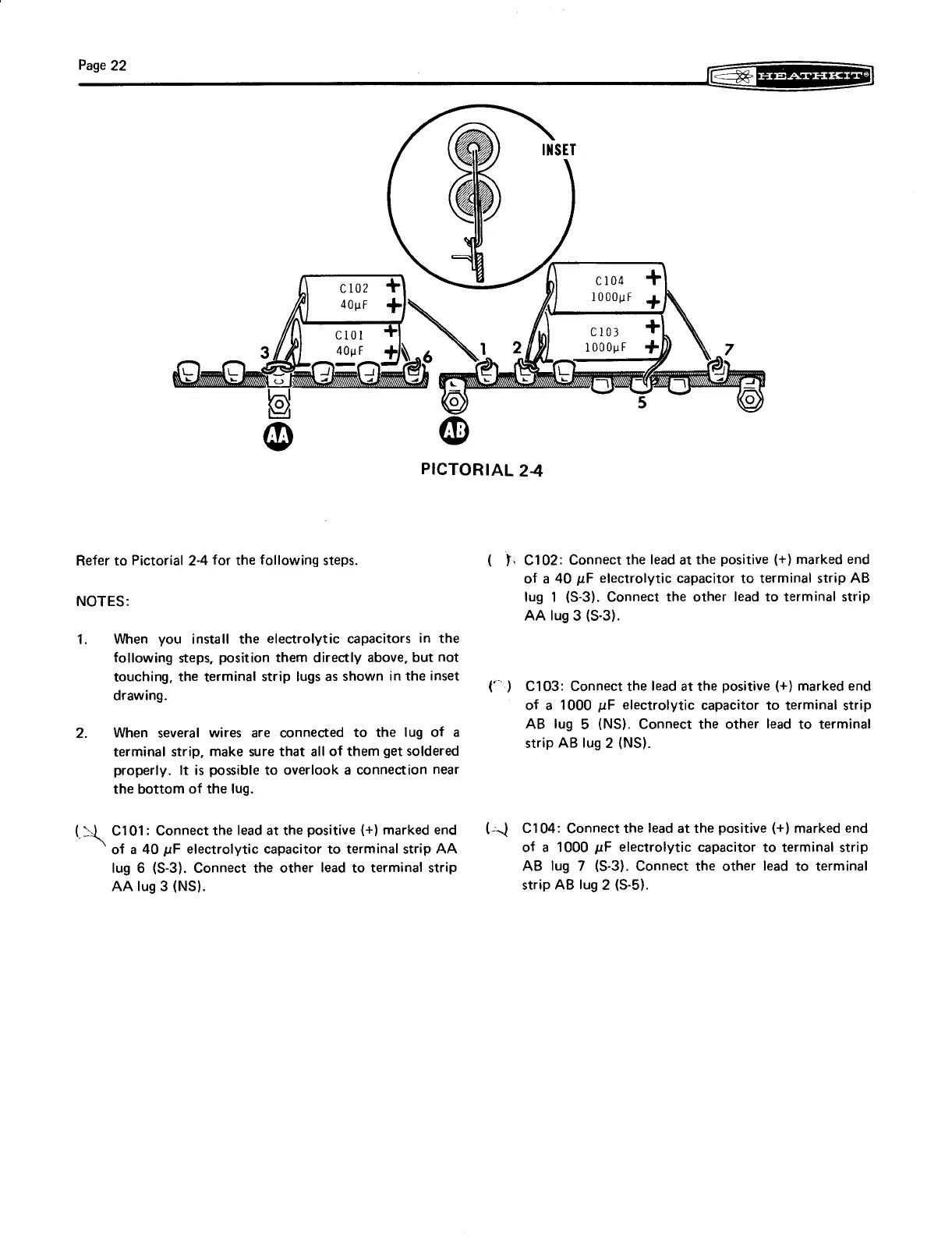

PICTORIAL
2-4
Refer
to
Pictorial
2-4
for
the
following
steps.
NOTES:
1.
When
you
install
the
electrolytic
capacitors
in
the
following
steps,
position
them
directly
above,
but
not
touching,
the
terminal
strip
lugs
as
shown
in
the
inset
drawing.
2.
When
several
wires
are
connected
to
the
lug
of
a
terminal
strip,
make
sure
that
all
of
them
get
soldered
properly.
It
is
possible
to
overlook
a
connection
near
the
bottom
of
the
lug.
(ah
C101:
Connect
the
lead
at
the
positive
(+)
marked
end
of
a
40
uF
electrolytic
capacitor
to
terminal
strip
AA
lug
6
(S-3).
Connect
the
other
lead
to
terminal
strip
AA
lug
3
(NS).
(|
}s
©102:
Connect
the
lead
at
the
positive
(+)
marked
end
of
a
40
uF
electrolytic
capacitor
to
terminal
strip
AB
lug
1
(S-3).
Connect
the
other
lead
to
terminal
strip
AA
lug
3
(S-3).
(")
©103:
Connect
the
lead
at
the
positive
(+)
marked
end
of
a
1000
uF
electrolytic
capacitor
to
terminal
strip
AB
tug
5
(NS).
Connect
the
other
lead
to
terminal
strip
AB
lug
2
(NS).
(-.)
©104:
Connect
the
lead
at
the
positive
(+)
marked
end
of
a
1000
uF
electrolytic
capacitor
to
terminal
strip
AB
lug
7
(S-3).
Connect
the
other
lead
to
terminal
strip
AB
lug
2
(S-5).
