Page 23

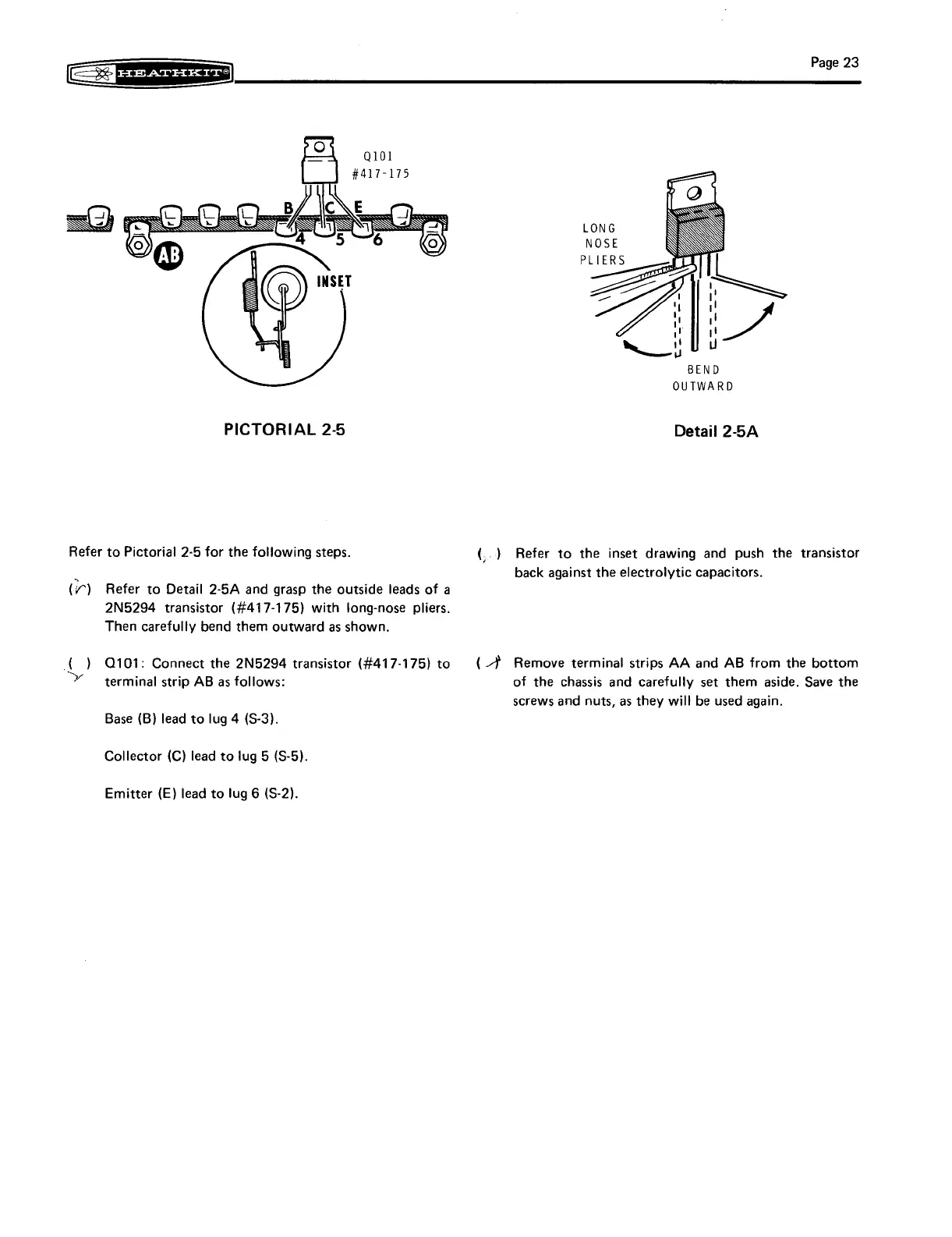

PICTORIAL 2-5
Refer to Pictorial 2-5 for the following steps.
(r)
jm
Refer to Detail 2-5A and grasp the outside leads of a
2N5294 transistor (#417-175) with long-nose pliers.
Then carefully bend them outward as shown.
Q101: Connect the 2N5294 transistor (#417-175) to
terminal strip AB as follows:
Base (B) lead to lug 4 (S-3).
Collector (C) lead to lug 5 (S-5).
Emitter (E) lead to lug 6 (S-2).
LONG
NOSE
BEND
OUTWARD
Detail 2-5A
(,..) Refer to the inset drawing and push the transistor
back against the electrolytic capacitors.
(+ Remove terminal strips AA and AB from the bottom
of the chassis and carefully set them aside. Save the
screws and nuts, as they will be used again.
