FINAL
ASSEMBLY

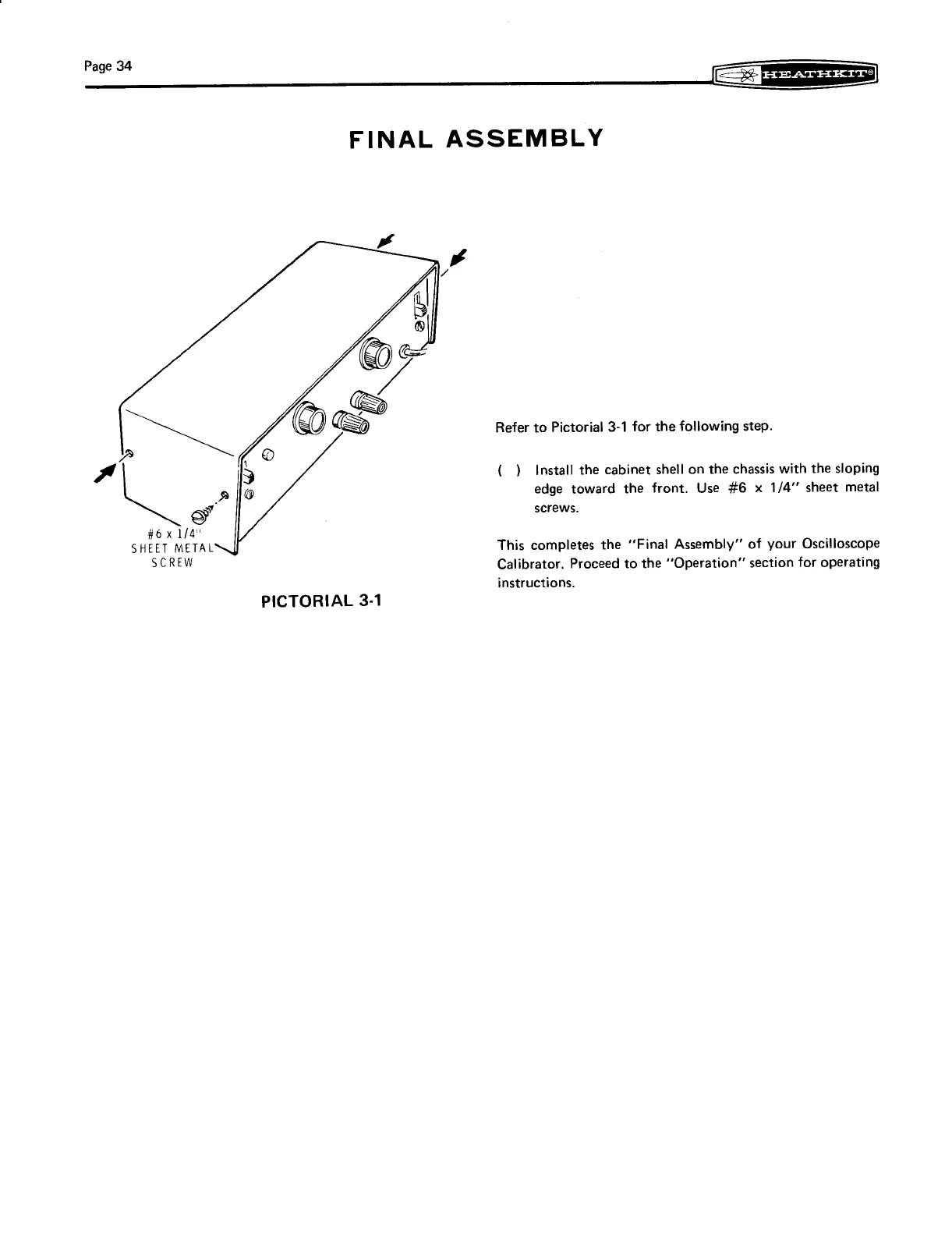

PICTORIAL
3-1
Refer
to
Pictorial
3-1
for
the
following
step.
( )
Install
the
cabinet
shell
on
the
chassis
with
the
sloping
edge
toward
the
front.
Use
#6
x
1/4"
sheet
metal
screws.
This
completes
the
‘Final
Assembly”
of
your
Oscilloscope
Calibrator.
Proceed
to
the
“Operation”
section
for
operating
instructions.
