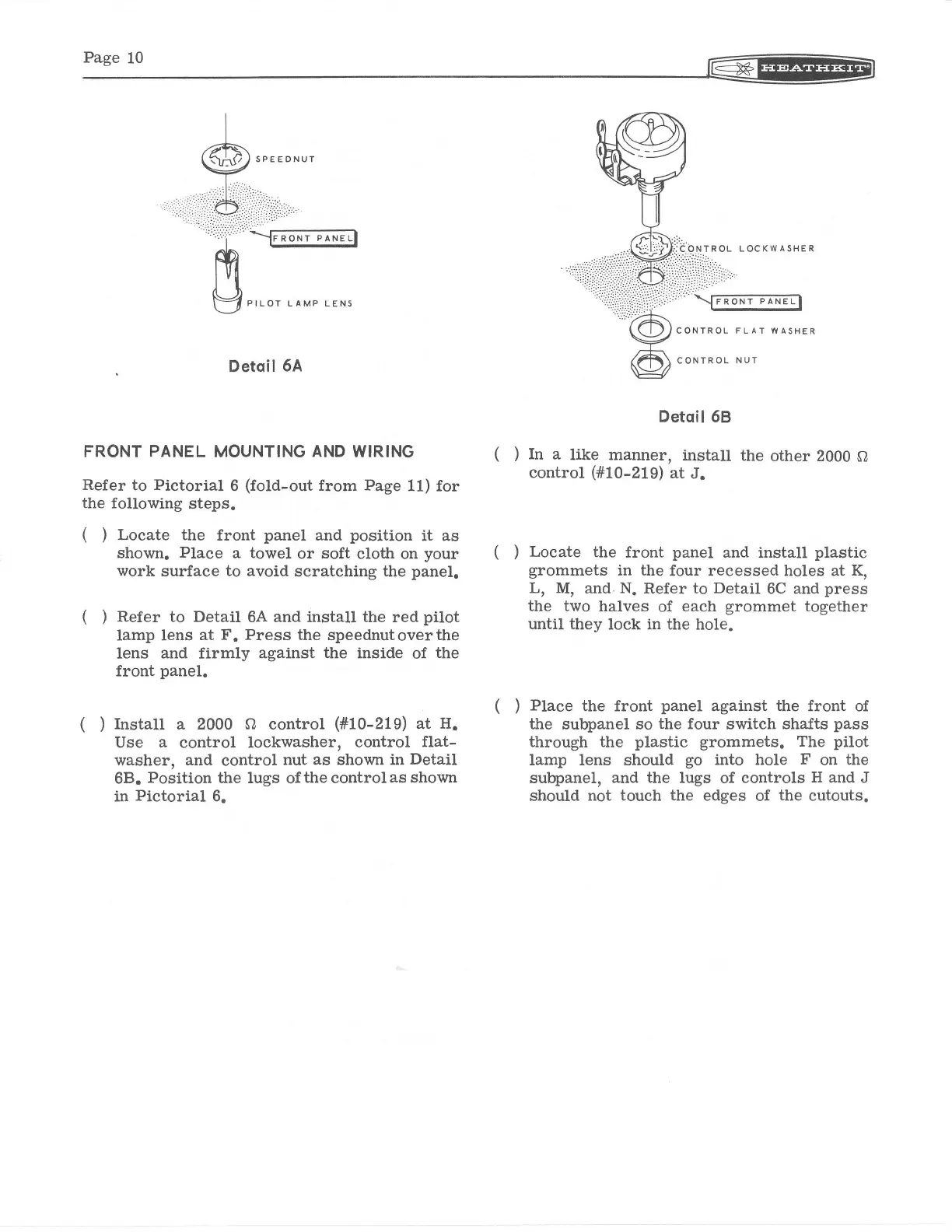

Heathkit IM-16 - Front Panel Assembly Installation

n"*uto
@
SPEEDNUT
PILOT
LAMP LENS
Detail
6A
FRONT
PANEL
MOUNTING
AND
WIRING
Refer
to Pictorial
6
(fold-out
from
Page
11) for
the
following
steps.
(
)
Locate the
front
panel
and
position
it as
shown.
Place
a
towel
or soft cloth on
your
work
surface
to
avoid
scratching
the
panel.
(
)
Refer to
Detail
6A
and install the red
pilot
lamp lens
at
F. Press
the
speednutoverthe
Iens and firmly
against the inside
of
the
front
panel.
(
)
Install
a 2000 Q control
(#10-219)
at H.
Use
a
control lockwasher,
control
flat-
washer,
and
control
nut as shown in
Detail
6E}.
Position the lugs
ofthecontrolasshown
in
Pictorial
6.
Detoil 68
(
)
tn
a
like manner,
install
the
other 2000
sl
control
(#10-219)
at
J.
(
)
Locate
the
front
panel
and
install
plastic
grommets
in the
four recessed holes at
K,
L,
M, and
N.
Refer
to Detail
6C and
press
the two
halves
of
each
grommet
together
until
they
lock in the
hole.
(
)
Place
the front
panel
against
the
front
of
the subpanel so
the four
switch
shafts
pass
through the
plastic grommets.
The
pilot
lamp lens
should
go
into hole
F
on
the
subpanel,
and the
lugs of controls
H
and J
should
not touch the
edges of
the
cutouts.
LOCKWASHER
CONTROL FLAT VIASHER
CONTROL
NUT
