Heathkit im-5210 - Parts List

Page 2

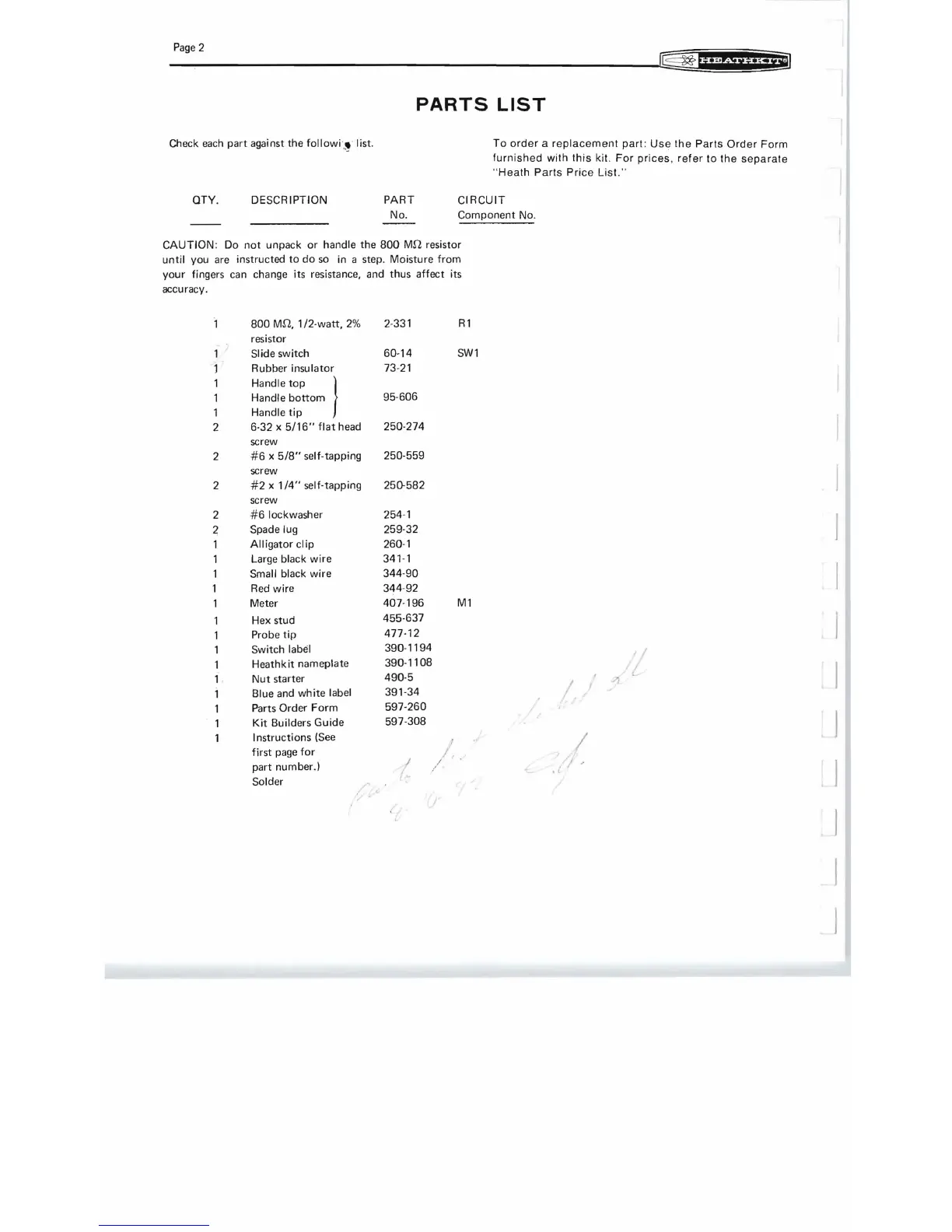

PARTS LIST
Check each pa rt against the followi '., list.
To
order a replacement part : Use the Parts Order Form
furnished with this kit. For prices, refer to the separate
" Heath Parts Price List."
OTY. DESCRIPTION PART CIRCUIT
No . Component No.
CAUTION : Do
not unpack or handle the 800 MD resistor
until you are instructed to do so in a step. Moisture from
your fingers can change its resistance, and thus affect its
accuracy.
-1
800 MD, 1/2·watt, 2%
2-
331
R1
resistor
Slide switch
60-14
SW1
Rubber insulator
73 - 21
H,ndle top }
Handle bottom
95-606
Handle
tip
2
6-32 x 5/16" flat head
250-274
screw
2
#6 x 5/8" self-tapping
250-559
screw
2
# 2 x
1/4" self-tapping
250-582
screw
2
# 6 lockwasher
254-1
2
Spade lug
259-32
Alligator cl ip 260-1
Large black
wire
341-1
Small black
wire
344-90
Red wire
344-92
Meter
407-196
M1
Hex stud
455-637
Probe
tip
477-12
Switch label
Heathkit nameplate
Nut starter
Blue
and white label
390-1194
390-1108
490-5
391-34
I
~1
I
Parts Order
Form
597-260
Kit Builders Guide
597-308
I nstructions
(See
first page for
part number.)
Solder
/
..
(
/
/
1
)
I
.L
/
/
'
