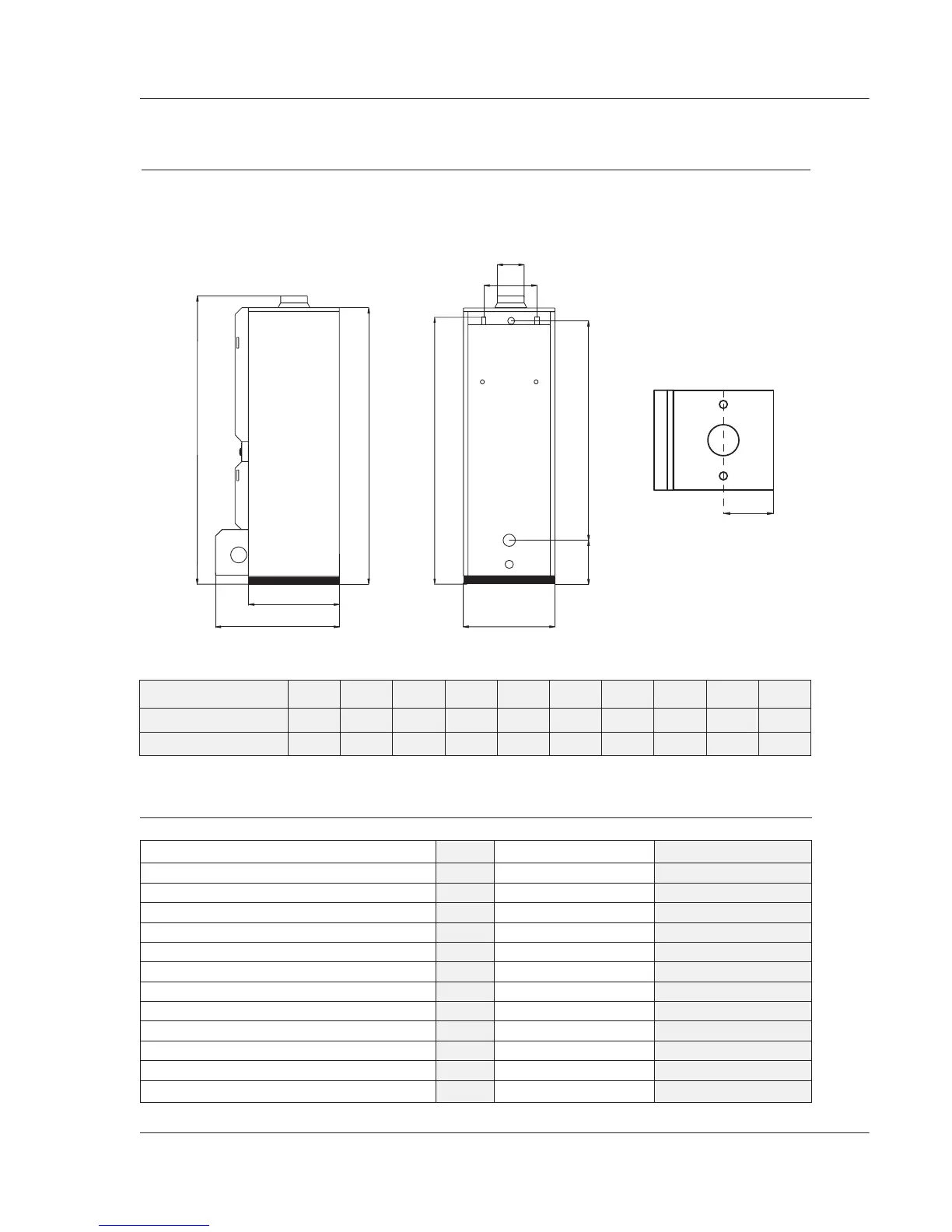

DIMENSIONS
The units are delivered fully assembled, tested and packed on a timber base with shockproof edges and protected by heat-shrunk plastic film.
On delivery and after unpacking, check the equipment for damage. For transport purposes, refer to the weights and dimensions given below.
TECHNICAL SPECIFICATION
HM 71 HM 101
Fuel type Natural gas / propane Natural gas / propane
Maximum Input kW 20 - 69.9 25 - 107 / 22 - 110
Maximum Output kW 63.0 96.8
Maintenance loss at 60 °C of rated value % 0.5 0.4
Total capacity L 239.0 330.0
Primary circuit capacity L 108.0 130.0
Hot water connection Ø 1” 1”
Heating connection Ø 11/2”11/2”
Flue connection Ø mm 150 150
Hot water tank heat exchange surface m
2
3.14 3.95
Weight empty Kg 282 335
Pressure drop primary circuit mbar 46 83
A mm B mm C mm D mm E mm F mm G Ø mm H mm J mm K mm
HM 71 1743 1630 680 937 680 390 150 1289 285 1720
HM 101 2093 2030 680 937 680 390 150 1693 285 2120
