Heatmaster TC series User Manual

EN • 11
ENGLISHFRANCAISNEDERLANDSESPAÑOLITALIANODEUTSCH
664Y2800.B
INSTALLATION INSTRUCTIONS
Min. 300 mm
Min. 25 mm Min. 25 mm
bar
2
1
O
3
4
BOILER ROOM
- Make sure that all air vents are unobstructed any times.
- Do not store any flammable products in the boiler room.
- Do not store any corrosive products, paint, solvents, salts,
chlorine products and other detergent products near the
appliance.
- If you smell gas, do not switch on any lights, turn off the
gas tap at the meter, ventilate the rooms and contact your
installer.
ACCESSIBILITY
The appliance must be positioned in such a way to be
accessible any time. In addition, the following distances
are required around the appliance.

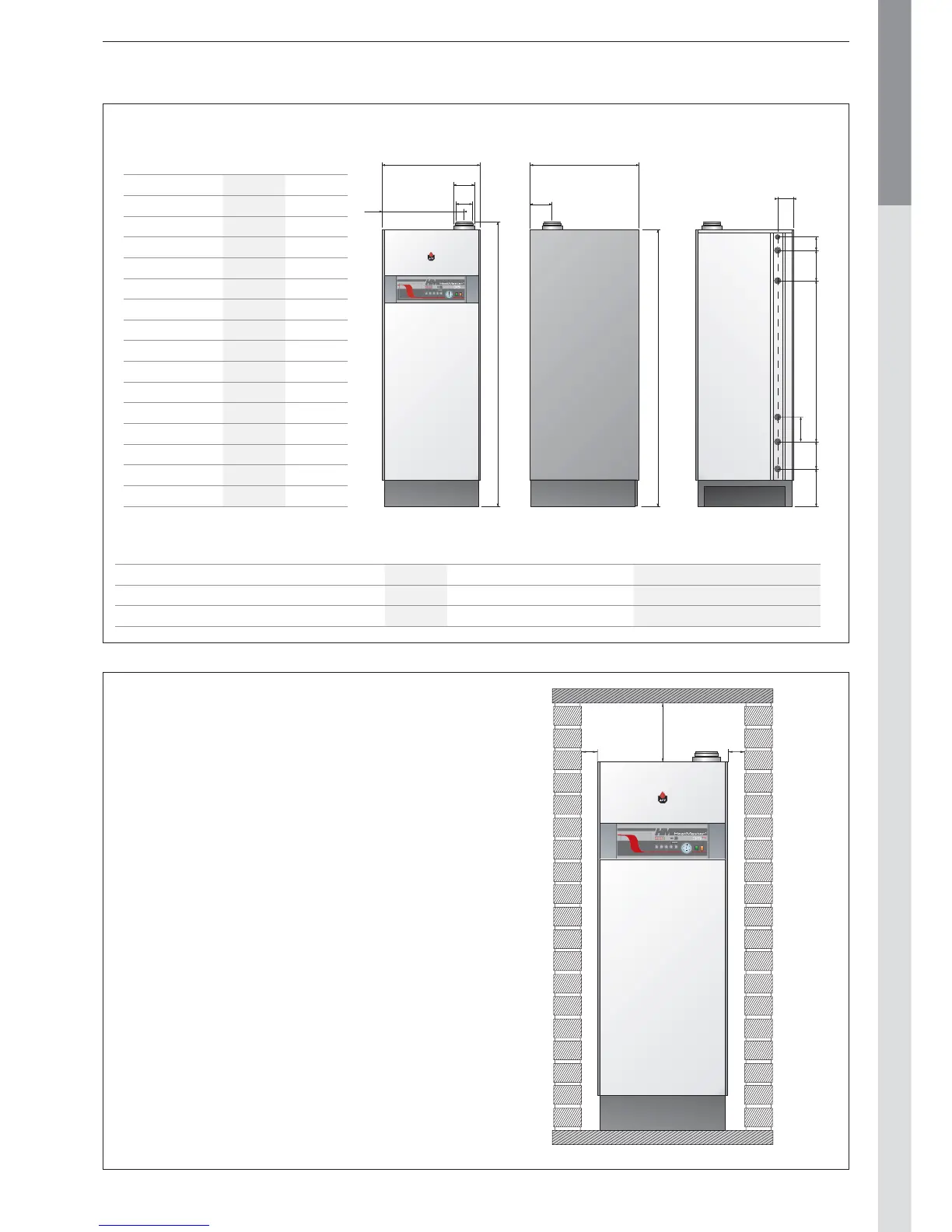

DIMENSIONS
HM
35 TC
HM
85 TC
A mm 1720 2145
B mm 600 690
C mm 500 580
D mm 80 100
E mm 125 150
F mm 140 160
G mm 1700 2095
H mm 670 725
I mm 110 125
J mm 100 105
K mm 200 270
L mm 960 1210
M mm - 200
N mm 170 235
O mm 230 240
Weight empty (kg] 174 284
bar
2
1
O
3
4
A
B
C
D
E
G
H
F
O
N
L
K
J
I
M
HYDRAULIC CONNECTIONS HeatMaster
®
35 TC HeatMaster
®
85 TC
Heating connection [F] Ø 1" 1"1/2
Domestic hot water connection [M] Ø 1" 1"1/2
Gas connection [M] Ø 3/4" 3/4"
