INTRODUCTION
4
6
8
1
5
2
3
9
11
16
17
12
14
13
15
18
7
10

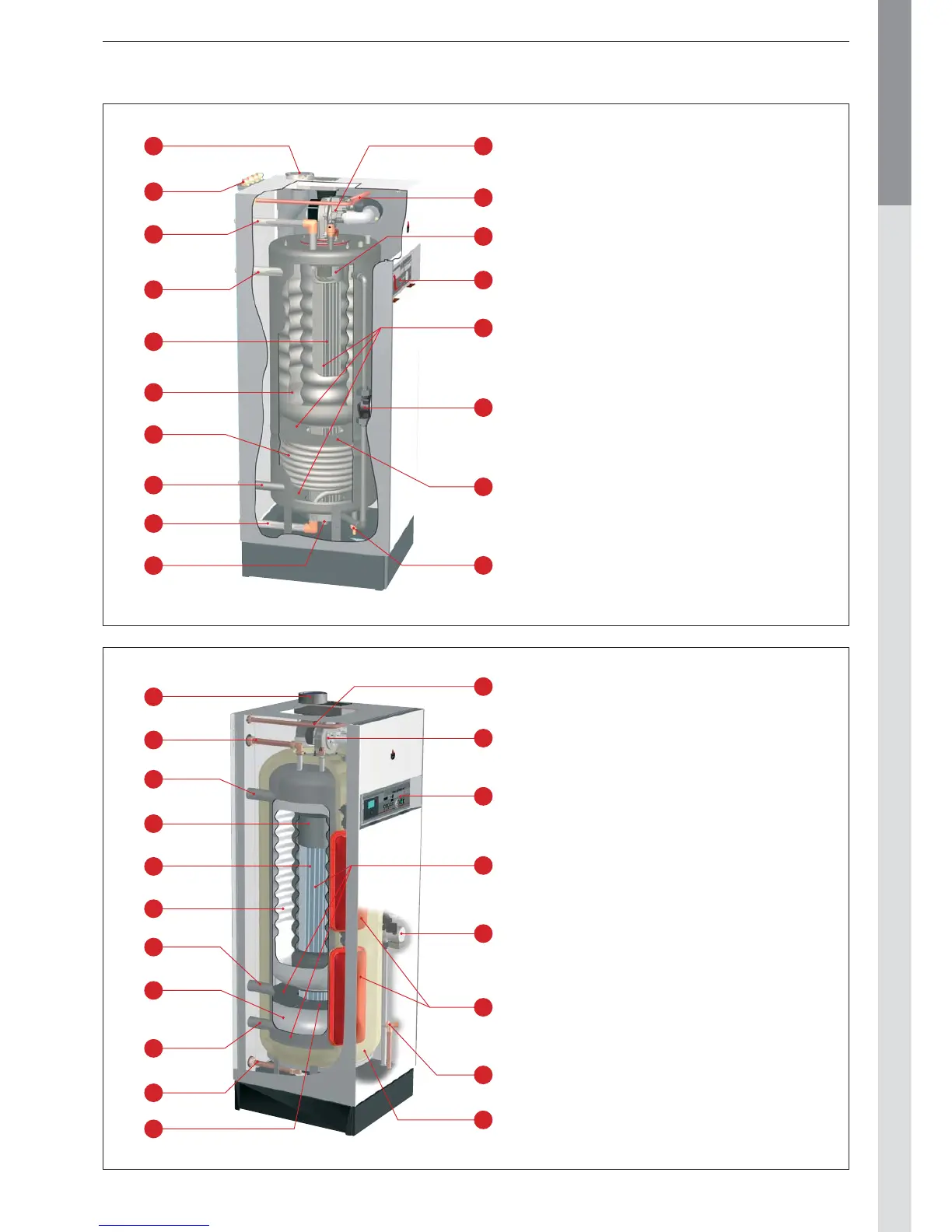

HeatMaster
®
35 TC
1. Flue connection concentric Ø 80/125 mm convertible to
parallel connection 80/80 mm
2. Connection frame [optional]
3. Domestic hot water outlet
4. Heating flow
5. Stainless steel heat exchanger
6. Stainless steel Tank-in-Tank hot water store
7. Stainless steel cold water inlet coil
8. Heating return
9. Cold water inlet
10. Condenstrap
11. Modulating premix gas burner
12. Gas connection
13. Combustion chamber
14. Control panel
15. Primary heating circuit
16. Boiler shunt pump
17. Separation plate
18. Drain cock
HeatMaster
®
85 TC
1. Flue connection concentric Ø 100/150 mm convertible to
parallel connection Ø 100/100 mm
2. Domestic hot water outlet
3. Heating flow
4. Combustion chamber
5. Stainless steel heat exchanger
6. Stainless steel Tank-in-Tank hot water store
7. Auxiliary tank primary return
8. Indirect water preheater
9. Heating return
10. Cold water inlet
11. Separation plate
12. Gas connection
13. Modulating premix gas burner
14. Control panel
15. Primary heating circuit
16. Boiler shunt pump
17. Primary expansion vessel (2x)
18. Primary safety valve (3 bar)
19. Polyurethane foam insulation
5
7
9
1
6
2
3
10
12
16
13
14
15
19
8
4
17
18
11
