Heatmaxx SRPH98 - Step 11: Glass Tube Placement; Step 12: Mesh and Guard Bracket Installation

10
Guard Bracket
$66(0%/<,16758&7,216
13
6WHS

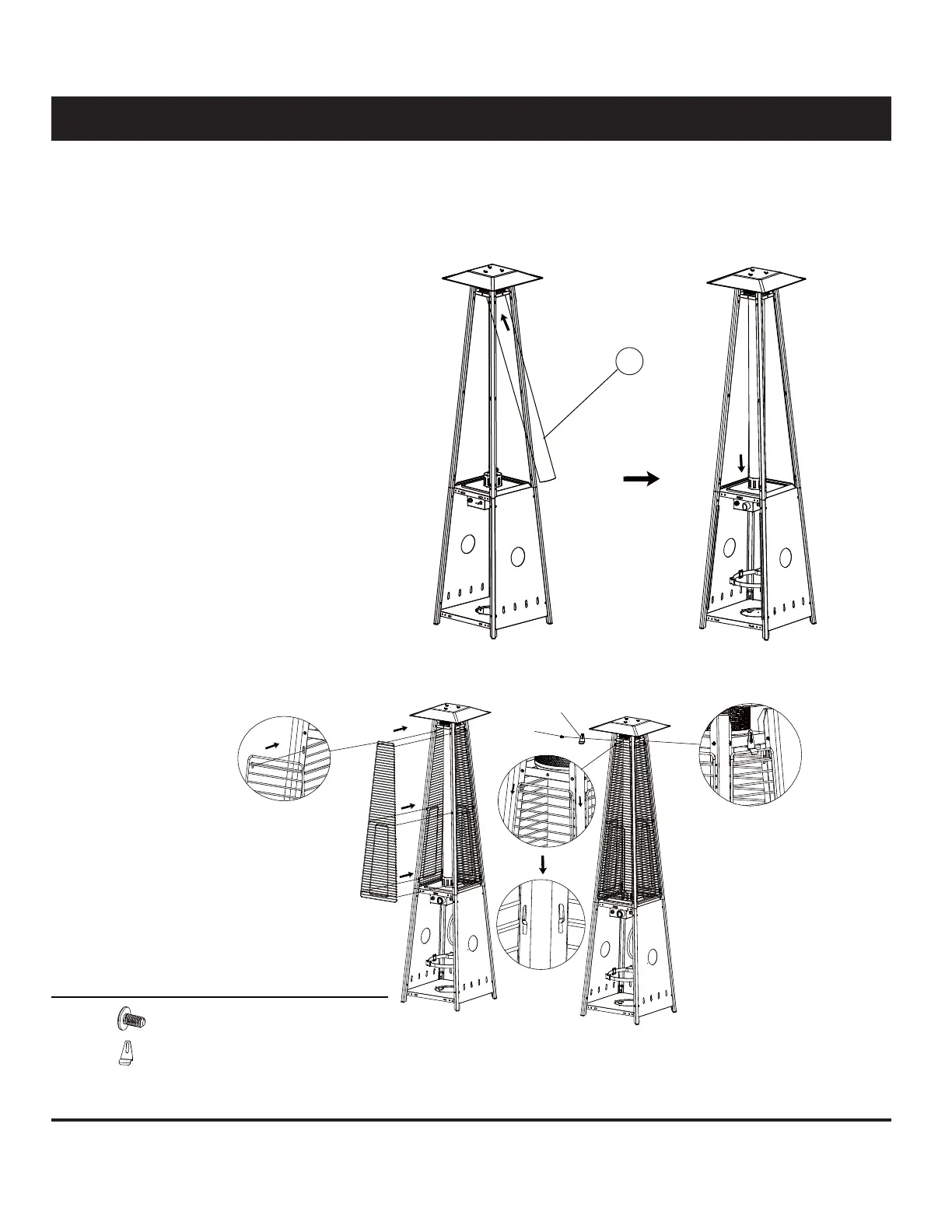

Place the glass tube (#10) by guiding it up to insert the upper end through the center hole in the upper plate.
Do not force the tube. Slide the bottom end into place and settle it into the hole in the glass tube base.
Ensure that the Glass Tube is positioned properly to cover the spiral.
6WHS
Attach (4) meshes (#3) to the upper supports with (4) M5 x 12 screws (CC) and (4) guard brackets (EE)
as illustrated.
+DUGZDUH8VHG
M5 x 12 Screw
4 pcs
CC
4 pcsEE
CC
EE
