Heatmaxx SRPH98 - Assembly Instructions; Step 1: Wheel Assembly; Step 2: Lower Supports Attachment

$66(0%/<,16758&7,216
II
KK
JJ
16
17

13
CC
16
6WHS

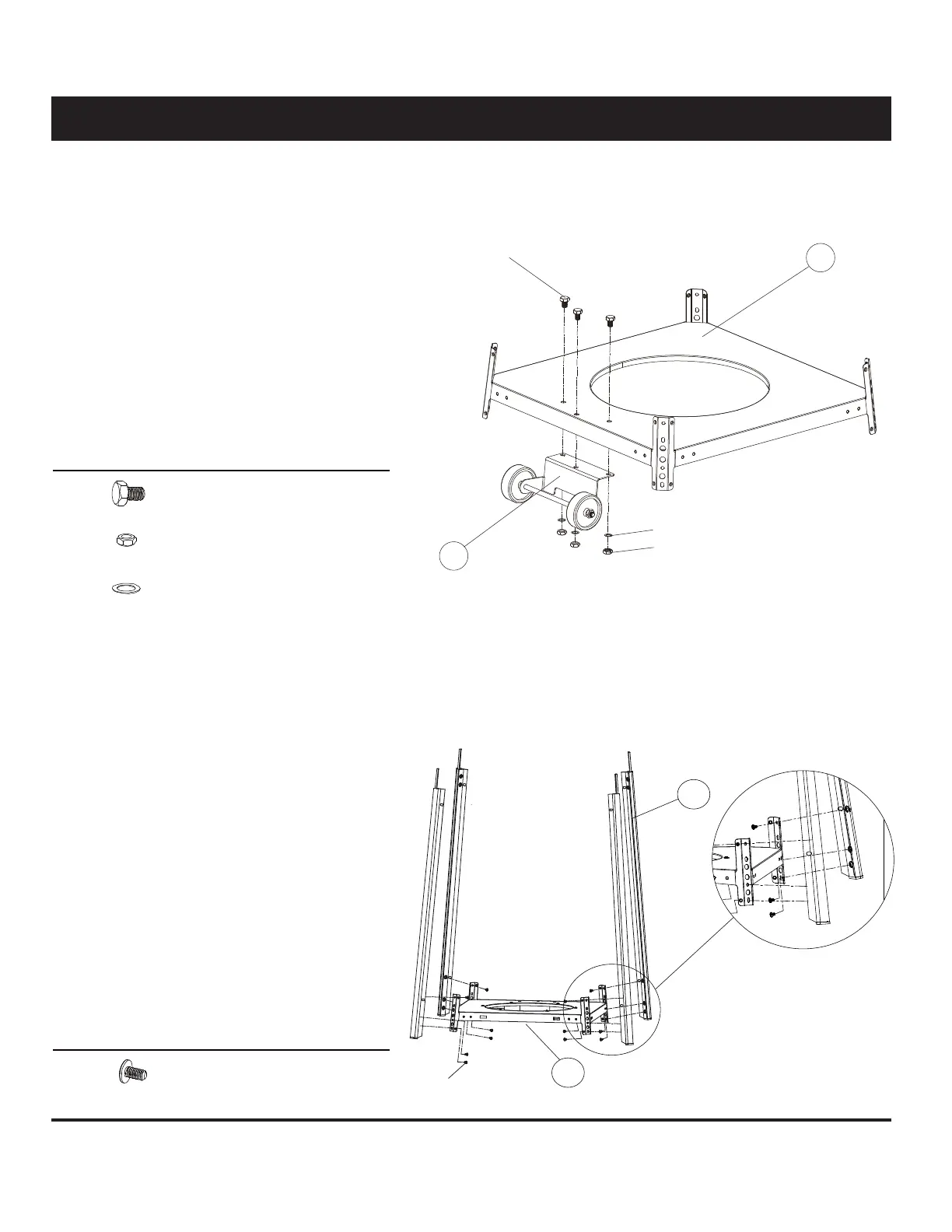

Unscrew the pre-assembled screws, nuts and washers on the wheel assembly (#17), then attach the wheel
assembly (#17) to the bottom plate (#16) with (3) M8 x 10 screws (II), (3) M8 nuts (JJ) and (3) 8.5 washers
(KK) as illustrated.
6WHS
Attach (4) lower supports (#13) to the bottom plate (#16) with (12) M5 x 12 screws (CC) as illustrated.
+DUGZDUH8VHG
M8 Nut
(pre-assembly)
M8 x 10 Screw
(pre-assembly)
3 pcs
3 pcs
II
JJ
8.5 Washer
(pre-assembly)
3 pcs
KK
+DUGZDUH8VHG
M5 x 12 Screw
12 pcs
CC
