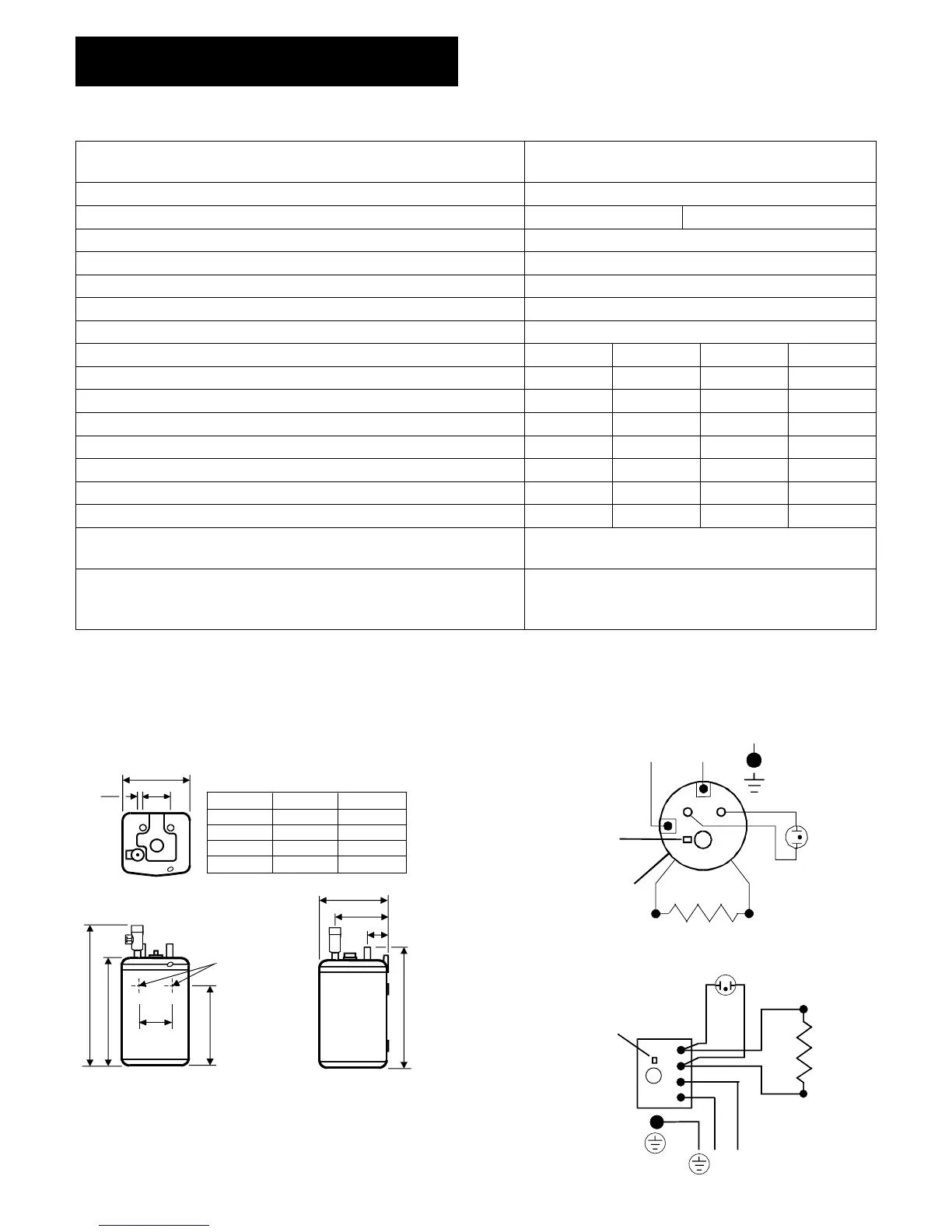

5
3.3 Electrical diagram(s)
3. Technical specication
3.1 Technical data
Supplier’s name or trade mark Multipoint
Supplier’s model identier 10L (3kW) 10L (4.5kW) 15L (3kW) 15L (4.5kW)
Storage volume V in litres 10.0 10.0 15.0 15.0
Mixed water at 40°C V40 in litres 19 19 27 27
The declared load prole XXS XXS XXS XXS
The water heating energy efciency class of the model C C C C
The water heating energy efciency in % 30.9 30.9 29.6 29.6
The annual electricity consumption in kWh 596 596 622 622
Daily fuel consumption in kWh 2.900 2.900 3.050 3.050
The thermostat temperature settings of the water heater, as
placed on the market by the supplier
60°C
Specic precautions that shall be taken when the water heater
is assembled, installed or maintained and disposed of at end
of life
See Section 3 - 11
Electrical rating
3kW@240V~/2.75kW@230V~
4.5kW@240V~/4.1kW@230V~
Capacities 10 or 15 litres
Weight (full) 10 litre - 16.9kg 15 litre - 23.8kg
Rated pressure 0.6MPa (6 bar)
Minimum recommended supply pressure 0.08MPa (0.8 bar)
Maximum supply pressure to PRV 1.6MPa (16.0 bar)
Temperature/Pressure Relief Valve 90°C/0.7MPa (7 bar)
3.2 Dimensions and connections
Reset
button
Reset
button
Combined
thermostat
and thermal
cut-out
Combined
thermostat
and thermal
cut-out
Element
(’stat / cut-out plugs
directly into element
terminations)
Neon
Neon
Earth
Post
Earth
Post
Element
N L
NL
Dimension 10 litre 15 litre
A
B
C
D
457
613
572
500
350
728
656
506
Top
view
267
100
12.5
A
B
C
D
190
Fixing centres
of mounting
bracket
252
171
59
Front view
Side view
Figure 2 – 3kW model
Figure 3 – 4.5kW modelFigure 1
Table: Technical parameters in accordance with European Commision regulations 814/2013
and 812/2013
