3.4 ELECTRICAL
WARNING: THIS APPLIANCE MUST BE EARTHED. IT IS SUITABLE FOR
A.C. SUPPLY ONLY. DISCONNECT THE ELECTRICAL SUPPLY BEFORE
REMOVING THE BASE COVER. INSTALLATION MUST BE IN ACCORD-
ANCE WITH THE CURRENT I.E.E. REGULATIONS.
The electrical supply to the property must be checked to ensure it is of 1.
sufcient current rating and voltage.
The immersion heater supply must include a 16A MCB in the circuit.2.
The circuit must incorporate a double pole isolating switch with a contact 3.
separation of at least 3mm in both poles.
The supply cable should be 2.5mm² 3 core HOFR sheathed and must be 4.
routed via the cable seal and entry provided with the outer sheath of the
cable rmly secured by tightening the screws on the cable clamp.
The wires are colour coded as follows:5.
Green and Yellow EARTH
Brown LIVE (L)
Blue NEUTRAL (N)

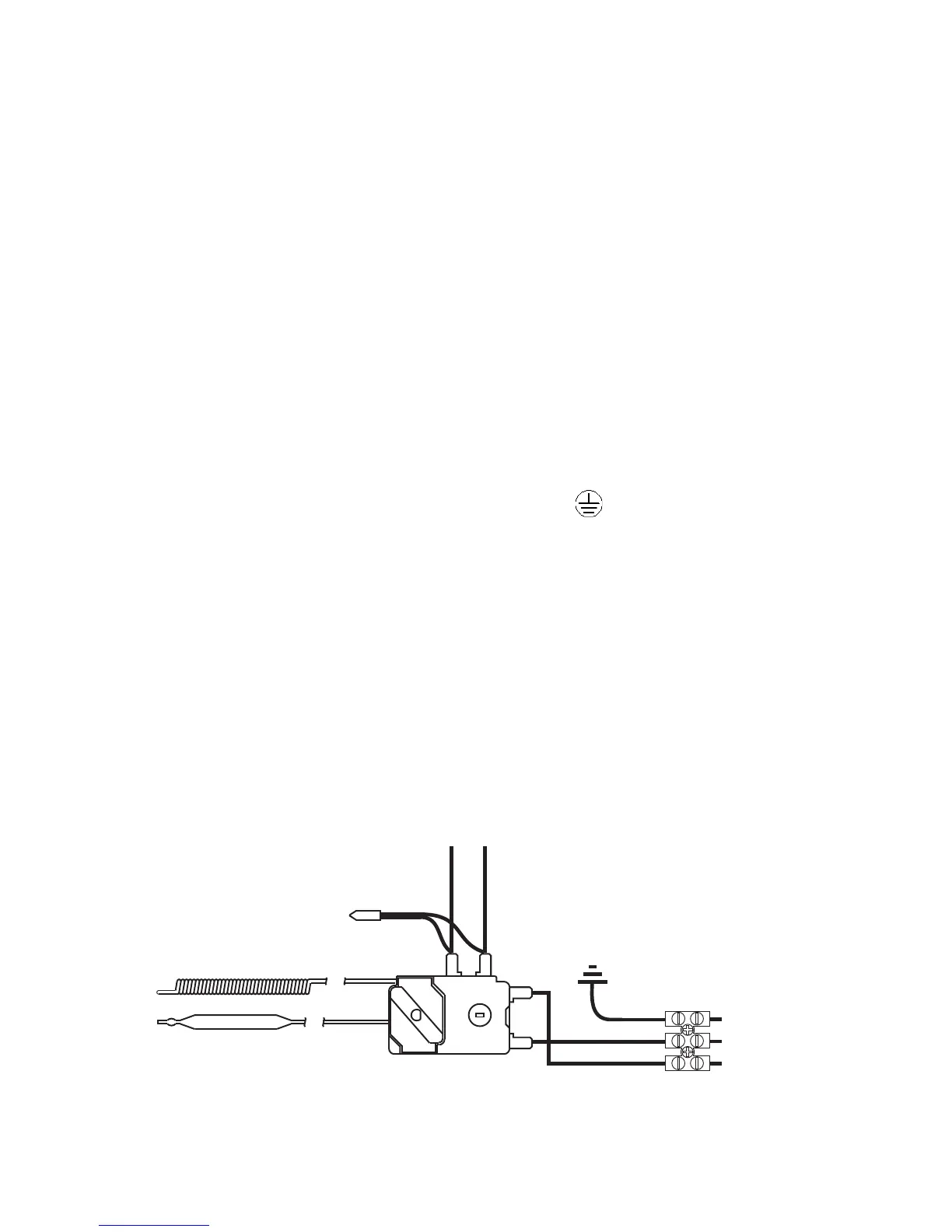

The Multipoint SS water heater has one heating element. The heating 6.
element is controlled by a combined themostat and thermal cut out, refer
to Diagram 04 for wiring details.
DO NOT OPERATE THE IMMERSION HEATER UNTIL THE MULTIPOINT 7.
SS HAS BEEN FILLED WITH WATER.
