12 | www.myheatworks.com Breaker must remain OFF until installation is complete.
11.0”
13.2”
12” MIN
CLEARANCE
HOT | OUTLET
3/4” NPT
10.0”
L2
L1
COLD | INLET
3/4” NPT
GROUND

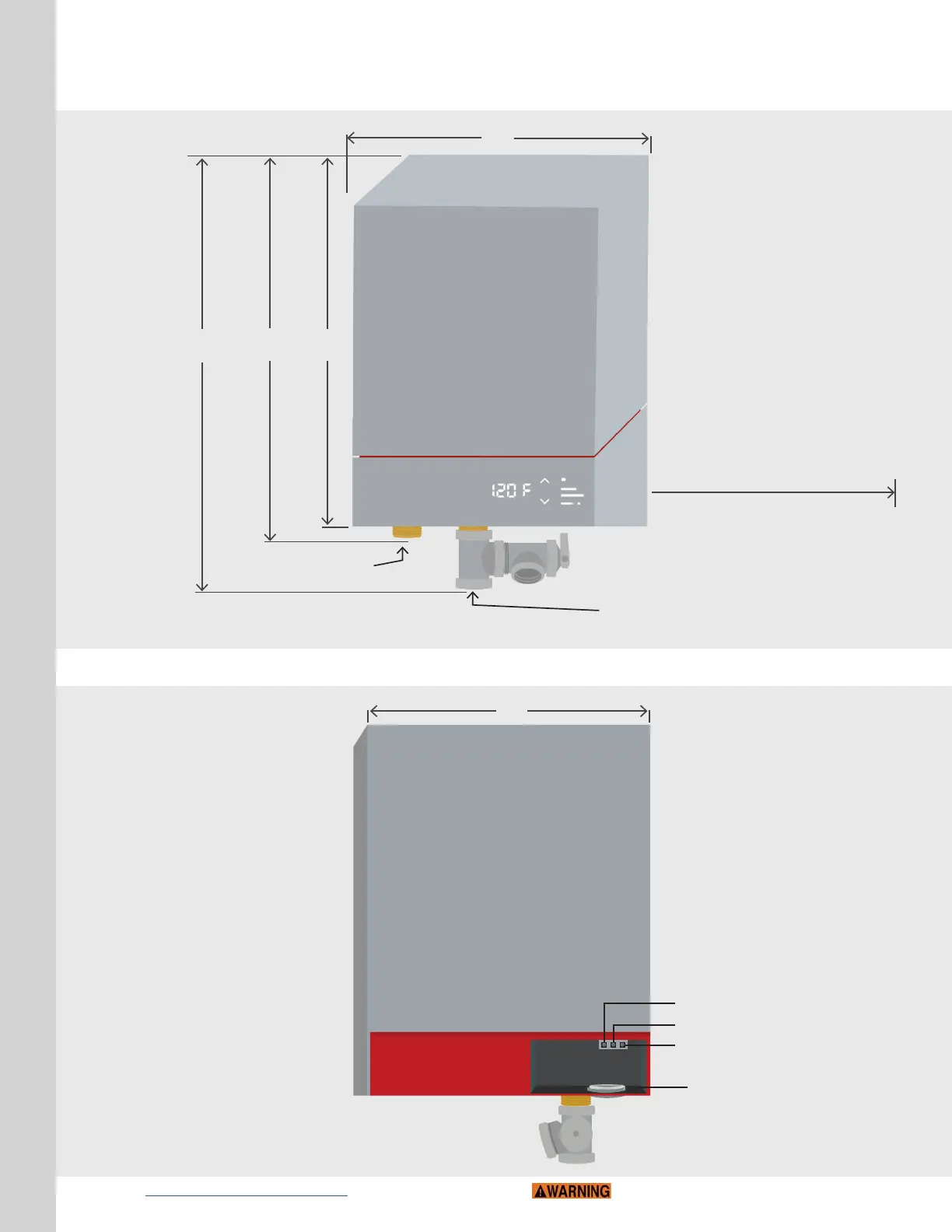

FRONT VIEW
SIDE VIEW
14.6”
16.5”
ELECTRICAL STRAIN
RELIEF NOT INCLUDED.
DIAMETERS - 1.35”, 1.7”
