36
FOOTRESTS EXHAUST MUFFLER CLUTCH PUMP TANK
The footrests are adjustable. By swapping the was-
hers you can move them forward or backwards
from 2.5mm to 5.00mm.
This allows you to customise the motorcycle for
greater eciency and comfort, depending on your
height or driving style.
The end of the muer is detachable and allows you
to easily replace the exhaust packing breglass in
order to improve the performance of the motorcycle.
It is necessary to periodically check the oil level in
the clutch pump tank. As is indicated on the lid,
only mineral oil may be used, in order not to dama-
ge the o-rings.
We recommend NILS mineral oil. If you need to
bleed the circuit, push down the lever repeatedly
until you note it has been bled, and then ll with oil
up to 2mm from the top.

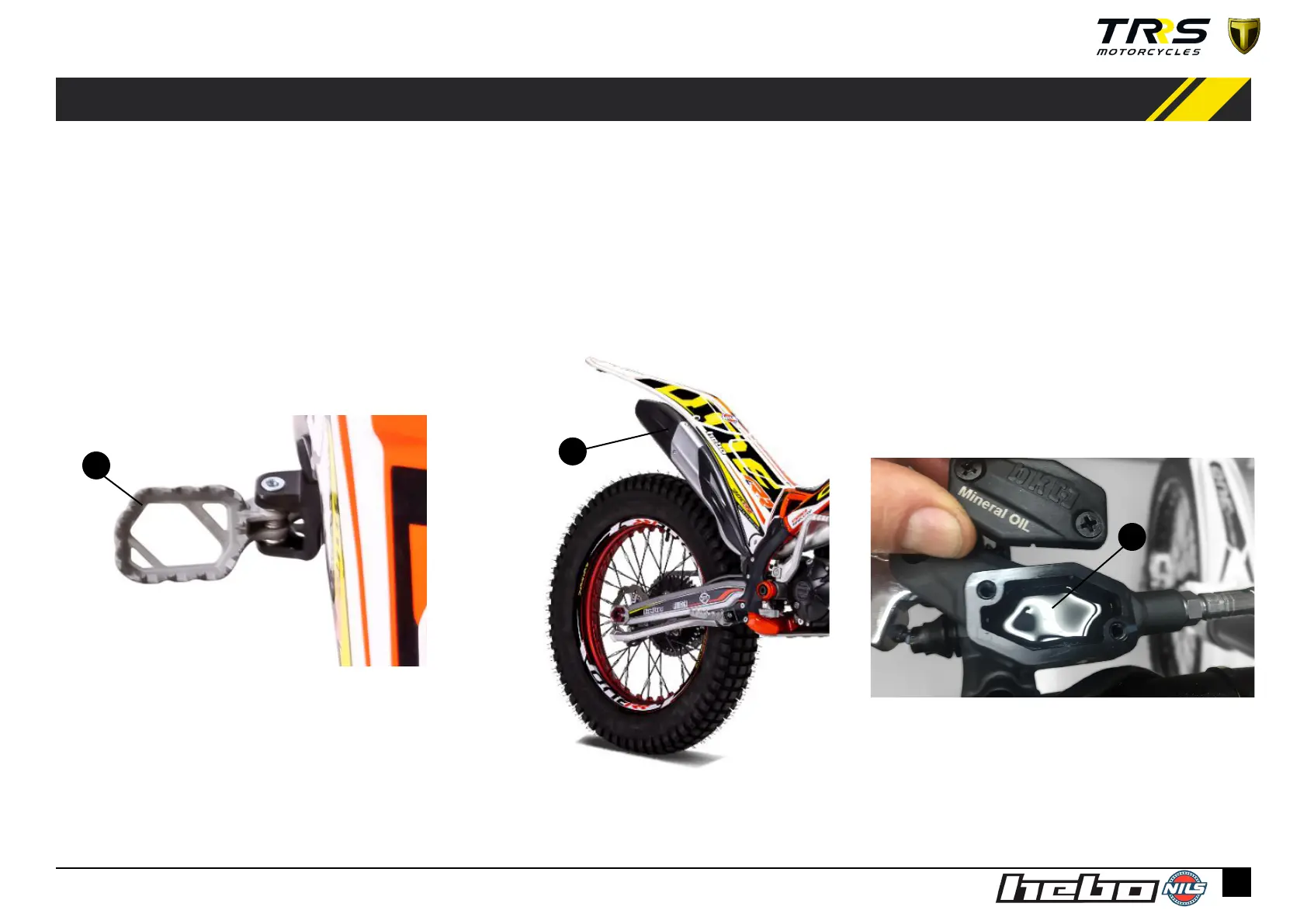

a) The footrests are adjustable, so that you can move them forwards
or backwards by moving the washers 2.5mm to 5.00mm in either
direction.
b) ) Important! Remember that when the motorcycle is turned on,
the exhaust get very hot.
c) Clutch pump tank. Only mineral oil may be used, in order not to
damage the o-rings
34 - Footrest 35 - Exhaust muffler 36 - Tank clutch pump
/ /
c
b
a
