HEDD BASS - Quick Guide to Controls; LED Indicators; Volume and Lineariser Control; DSP and Satellite Settings

VOL. [dB] LINEARISER
®
CoP
-6
-12 +12
+6
0
-1
-2 +2
+1
0
60
40 200
120*
100
80
*FOR LFE
EXTEND.
(less SPL)
NORMAL
+10 dB FOR LFE
/MONO
/LEFT
ANALOG
/RIGHT
-4 +4
0
-10
-90-270
0
-180
ON
OFF
(*)
Ported
Closed
SAT. OFFSET [m] X-OVER [HZ] LF RANGE
ANALOG/AES INP. SENS. [dB] PHASE [°]
ALL "0" and "↑" POSITION = FACTORY SETTING
1
2
3
5
6
4
7
8
9

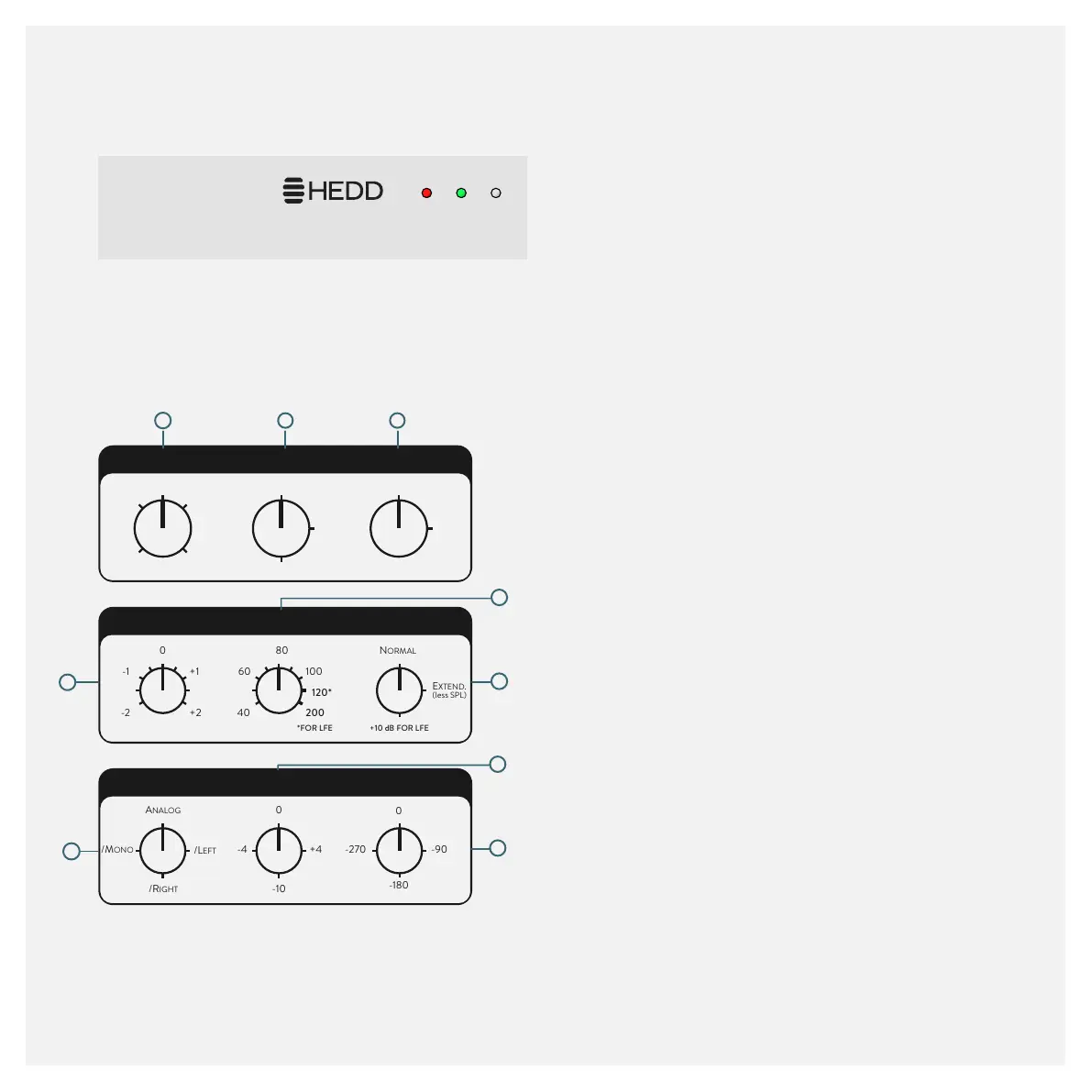

Q U I C K G U I D E
Red: Overload | Green: Power On | White: Stand-By
LED INDICATORS
1. Volume
/ adjust the output volume
2. HEDD Lineariser®
/ activate or deactivate the HEDD Lineariser® for full phase linearity
3. CoP
/ change the DSP settings according to whether you are using the
subwoofer ported (without plug) or closed (with plug)
4. Satellite Oset
/ correct the listening distance of the subwoofer in relation to the monitors
5. Crossover Frequency
/ adjust the high frequency limit. The low frequency extension (LFE) is
suitable for surround applications
6. Low frequency range
/ optionally extend the bass range (at the expense of a lower max. SPL)
or adjust the bass quantity as recommended for surround
7. Input selection
/ select your active input or stereo channel / please note that in analog
mode the stereo channel is dened by your pre-amp
8. Input sensitivity
/ adjust the input volume by increasing the input by up to 4 dB
(warning: clipping may occur) or lowering it by up to 10 dB
9. Phase
/ manually adjust the phase
Please download and read the full manual for more information.
