Spectralis OCT Installation Instruction
Art. Nr.: 97 223-003 vom 04.11.2009 Page 2 / 6 2009-11-04 Spectralis-OCT-Installation-Instruction.doc
Sage: 18128

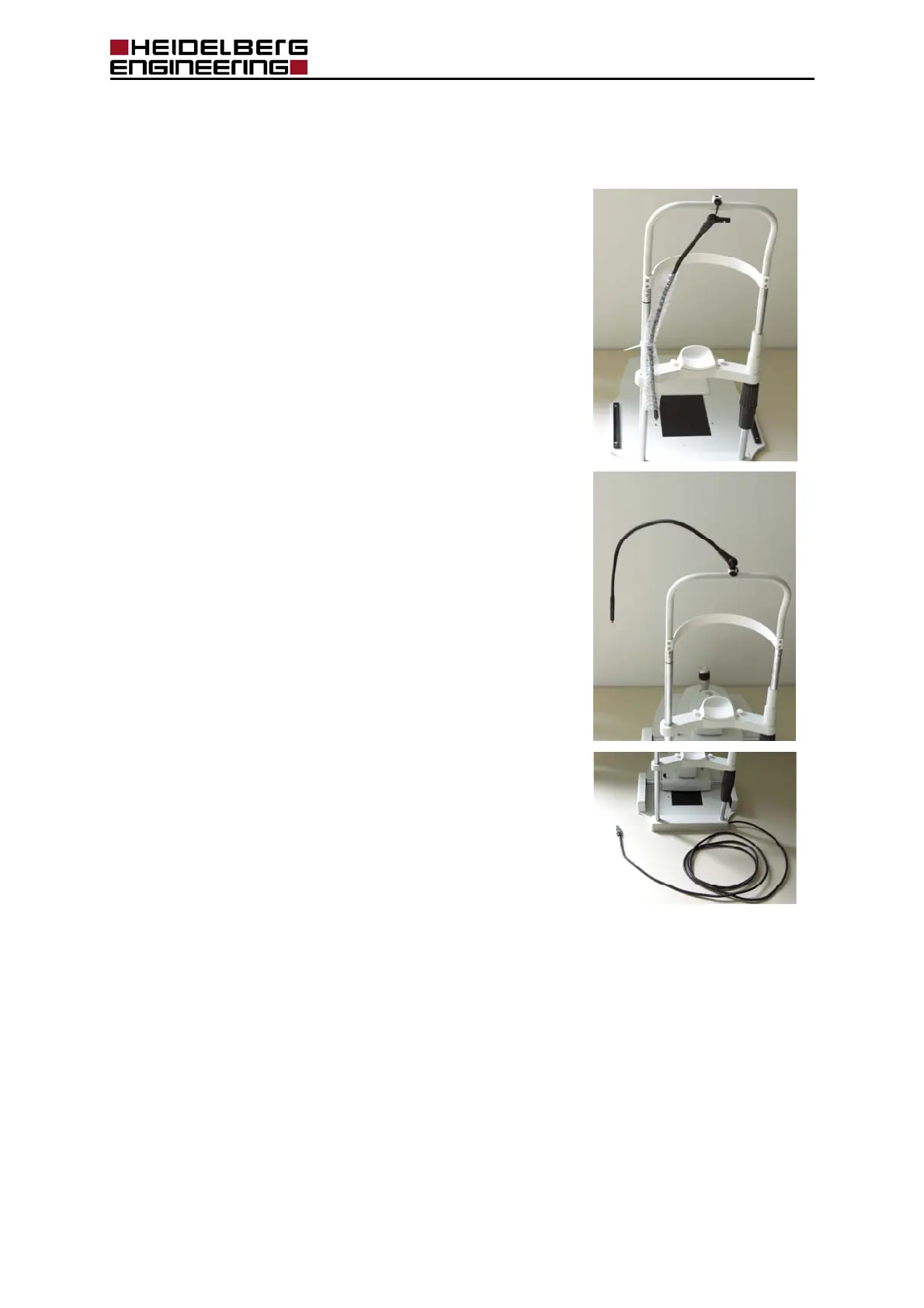

Installation of the external fixation light
For shipping
purposes the external fixation light is demounted
and fixed to the head rest.
Insert the base of the fixation light into the protruding plug-in on
top of the head rest. Screw on the external fixation light.
Connect the USB cable
*
to a port of the PC as power supply for the
external fixation lamp.
*
fire wire cable (optional)
Confidential - for internal and distributor use only
