Spectralis OCT Installation Instruction
Art. Nr.: 97 223-003 vom 04.11.2009 Page 3 / 6 2009-11-04 Spectralis-OCT-Installation-Instruction.doc
Sage: 18128

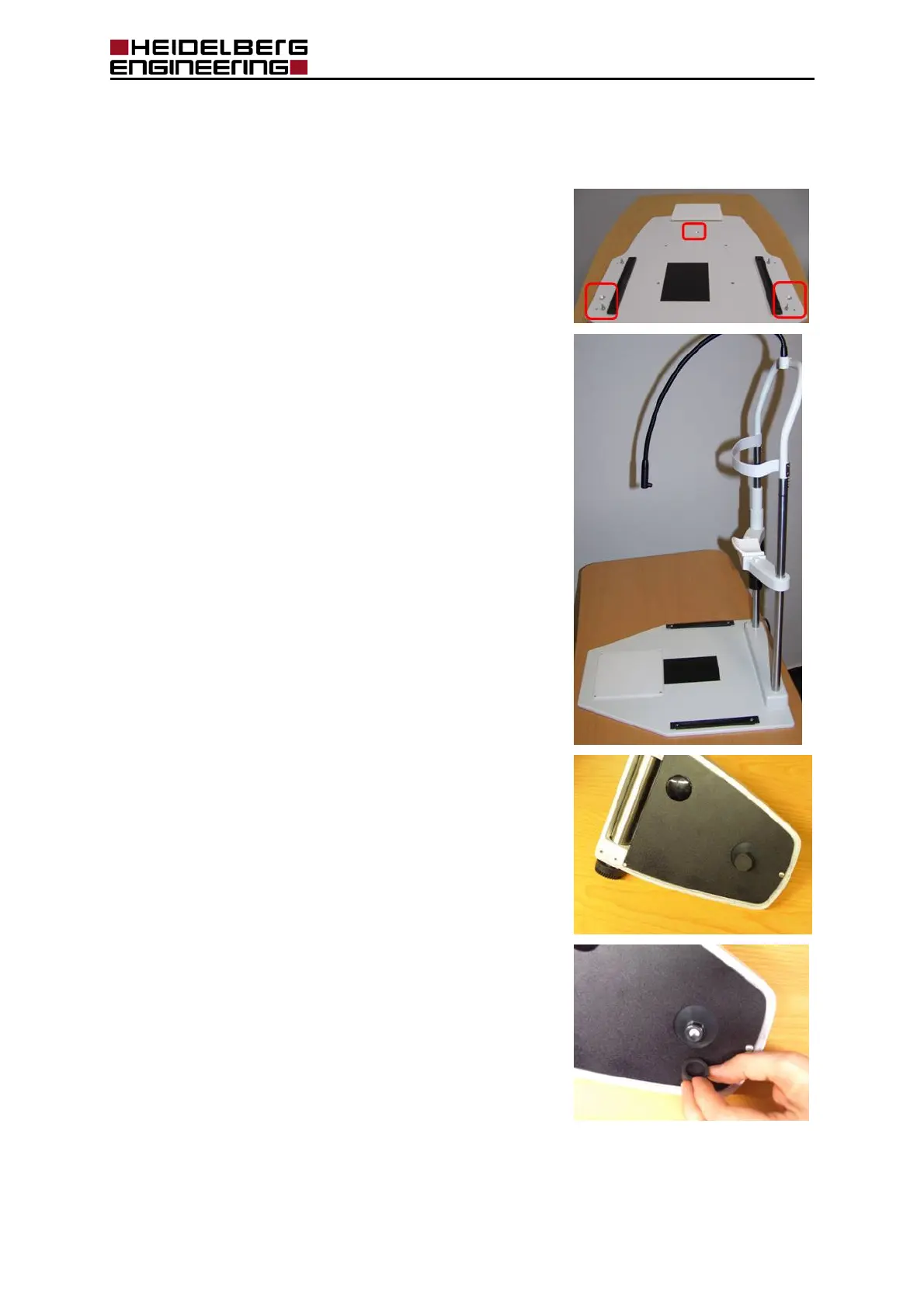

Mounting the base plate onto the table
The sc
rew holes for mounting the base plate onto the table are
located underneath the guide rails and the friction plate (see
image to the right). Remove both guide rails and the white
friction plate.
Mount the base plate onto the table using three recessed head
screws. These screws are part of the delivery.
The screws must not protrude out of the base plate. Then,
mount the guide rails and the friction plate back again.
The image to the right shows the bottom side of the camera
base.
Before installation on the base plate, remove the protective
rubber cap at the position of the joystick.
Confidential - for internal and distributor use only
