Spectralis OCT Installation Instruction
Art. Nr.: 97 223-003 vom 04.11.2009 Page 5 / 6 2009-11-04 Spectralis-OCT-Installation-Instruction.doc
Sage: 18128

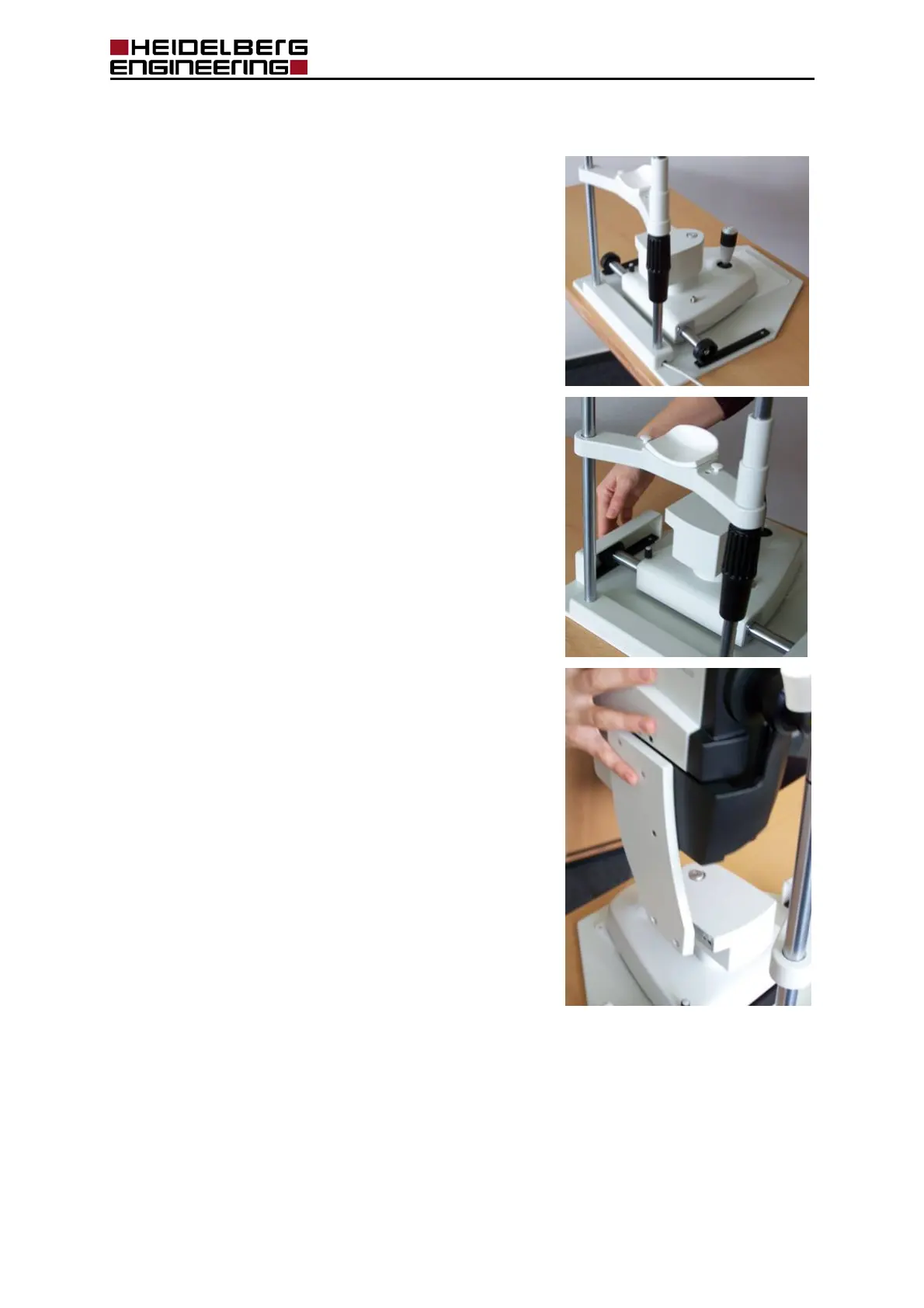

Position the head rest on the base plate so that the joystick is
located above the friction surface and the
gears rest on the
gear rails.
Fit one of the protective covers over the gear rail at the side
and slide the base forward up to the stop.
Check if the opposite gearwheel also rests on the last tooth of
the gear rail, i.e. if both gears are parallel.
Fit the second protective cover over the gear rail.
Mount the camera head to the base using two Allen screws.
Confidential - for internal and distributor use only
