A. UPFLOW INSTALLATION
If return air is to be ducted through a floor, set unit on floor
over opening and use 1/8 to 1/4 inch thick (3 to 6 mm thick)
fireproof resilient gasket between duct, unit, and floor.
Side return is a field option on slope coil models. Cut
opening per dimensions shown in Figure 2. A
field−supplied bottom closure is required.
B. MODULAR UNITS
FEM4X6000B and REM4X6000B fan coils are two−piece
modular units. This allows for modular units to be
disassembled and components moved separately to
installation area for reassembly. This process
accommodates small scuttle holes and limiting entrances to

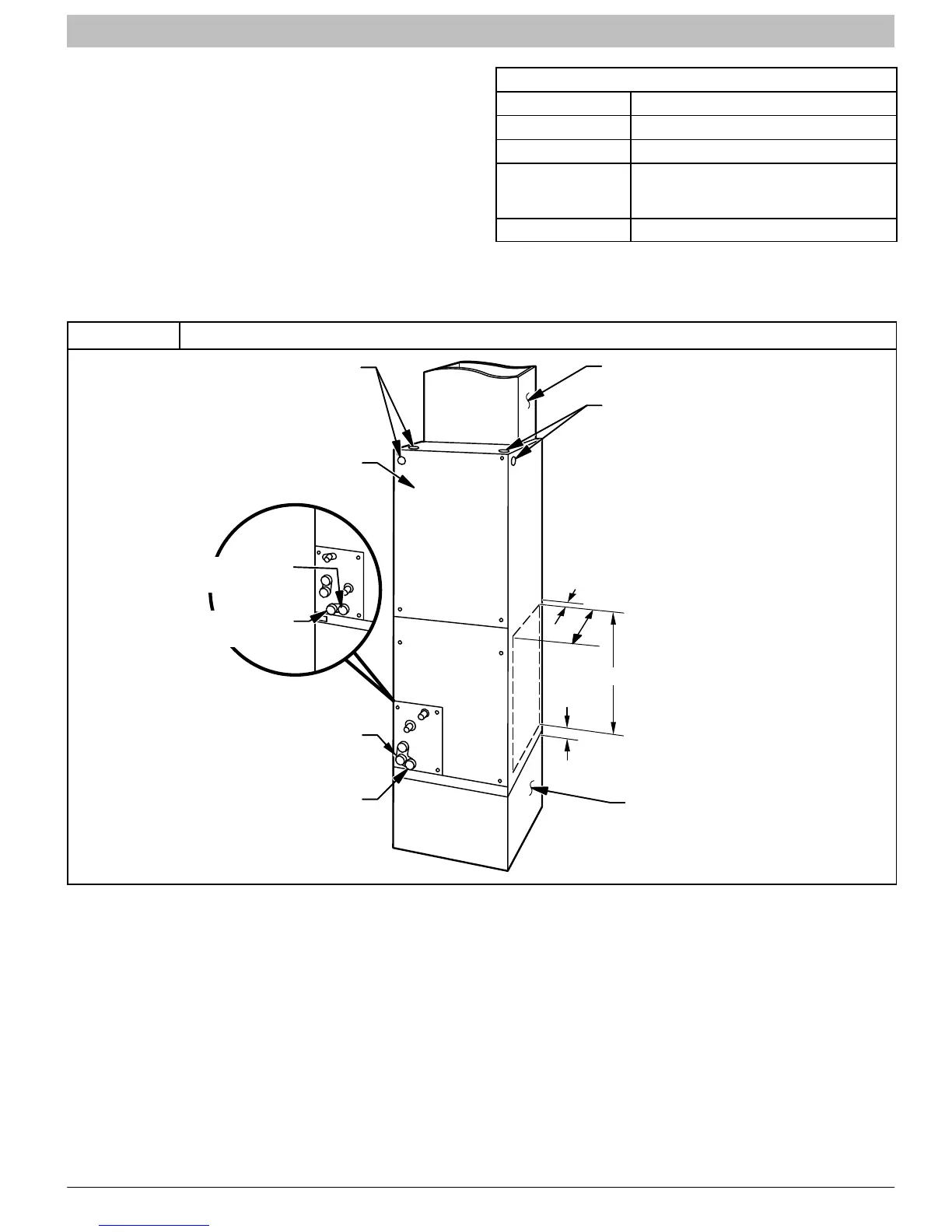

installation sites (Figure 1).
SLOPE COIL UNITS
MODEL A
18 12” (305mm)
FEM4P2400AL 12” (305mm)
ALL 30
FEM4X2400CL
REM4X2400BL
17” (432mm)
36 17” (432mm)
Figure 2 Upflow Installation
FRONT SERVICE CLEARANCE
18 − 48 models = 21” (533 mm)
60 model = 24” (610 mm)
A−COIL
UNITS
POWER ENTRY
OPTIONS
LOW VOLT
ENTRY
OPTIONS
FIELD MODIFIED
SIDE RETURN
LOCATION FOR
SLOPE COIL
UNITS ONLY
FIELD SUPPLIED
RETURN PLENUM
UPFLOW/DOWNFLOW
SECONDARY DRAIN
UPFLOW/DOWNFLOW
PRIMARY DRAIN
A
FIELD SUPPLIED
SUPPLY DUCT
UPFLOW/DOWNFLOW
SECONDARY DRAIN
UPFLOW/DOWNFLOW
PRIMARY DRAIN
1½”
2½”
(64mm)
19” (483mm)
