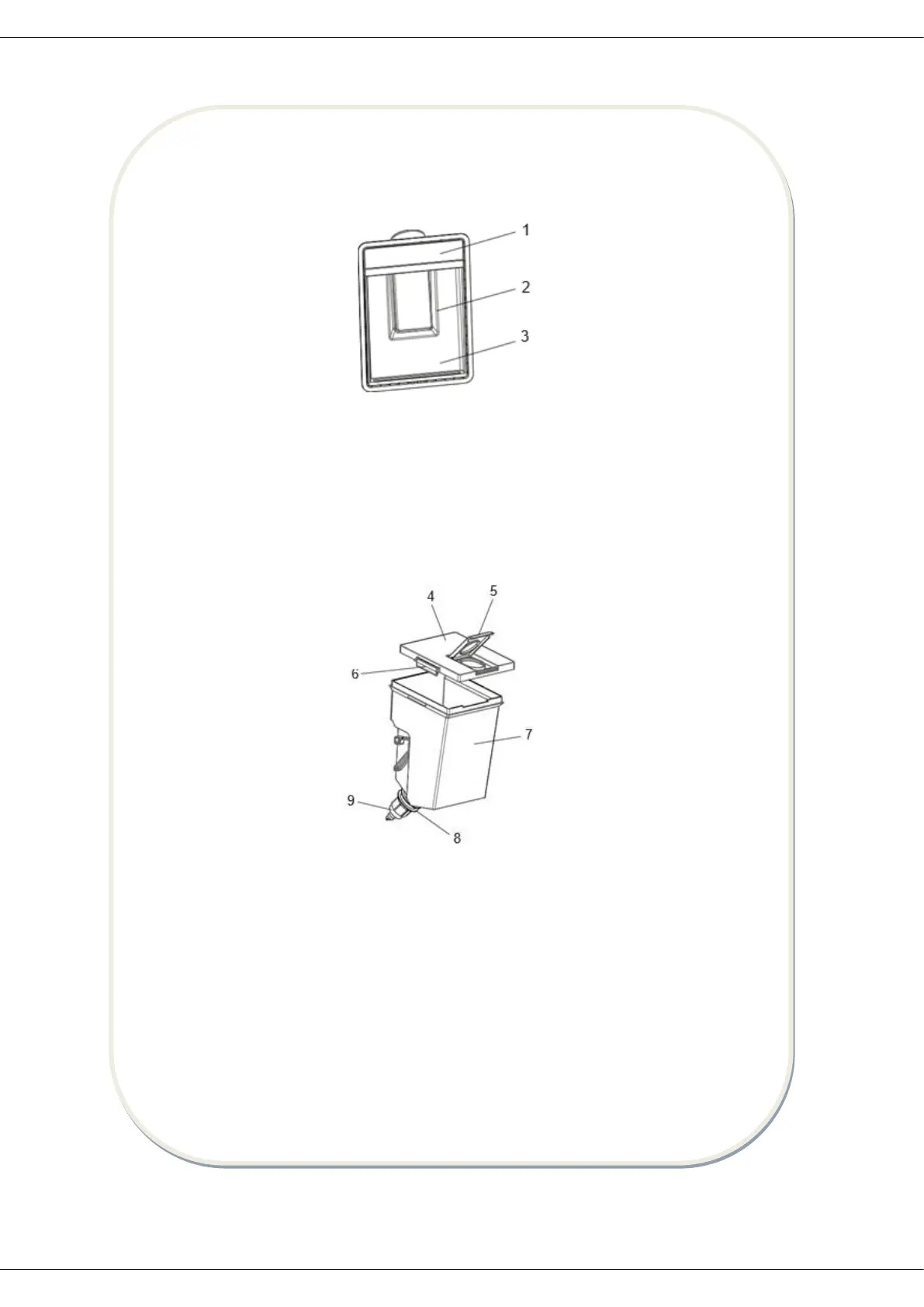

Parts of the water dispenser
(A ) Outside the door (water dispenser’s tank group)
1)Top cover of the water dispenser
2)Valve lever
3)Water dispenser casing
(B) Inside the door (Water dispenser’s tank group)
4)Top cover of the water tank
5)Tank cover
6) Side locking covers
7)Water tank
8)Gasket ring
9) Tap detail
