Heinner HMF-18GREY User Manual

www.heinner.com 95W, 50Hz, 220-240V
16

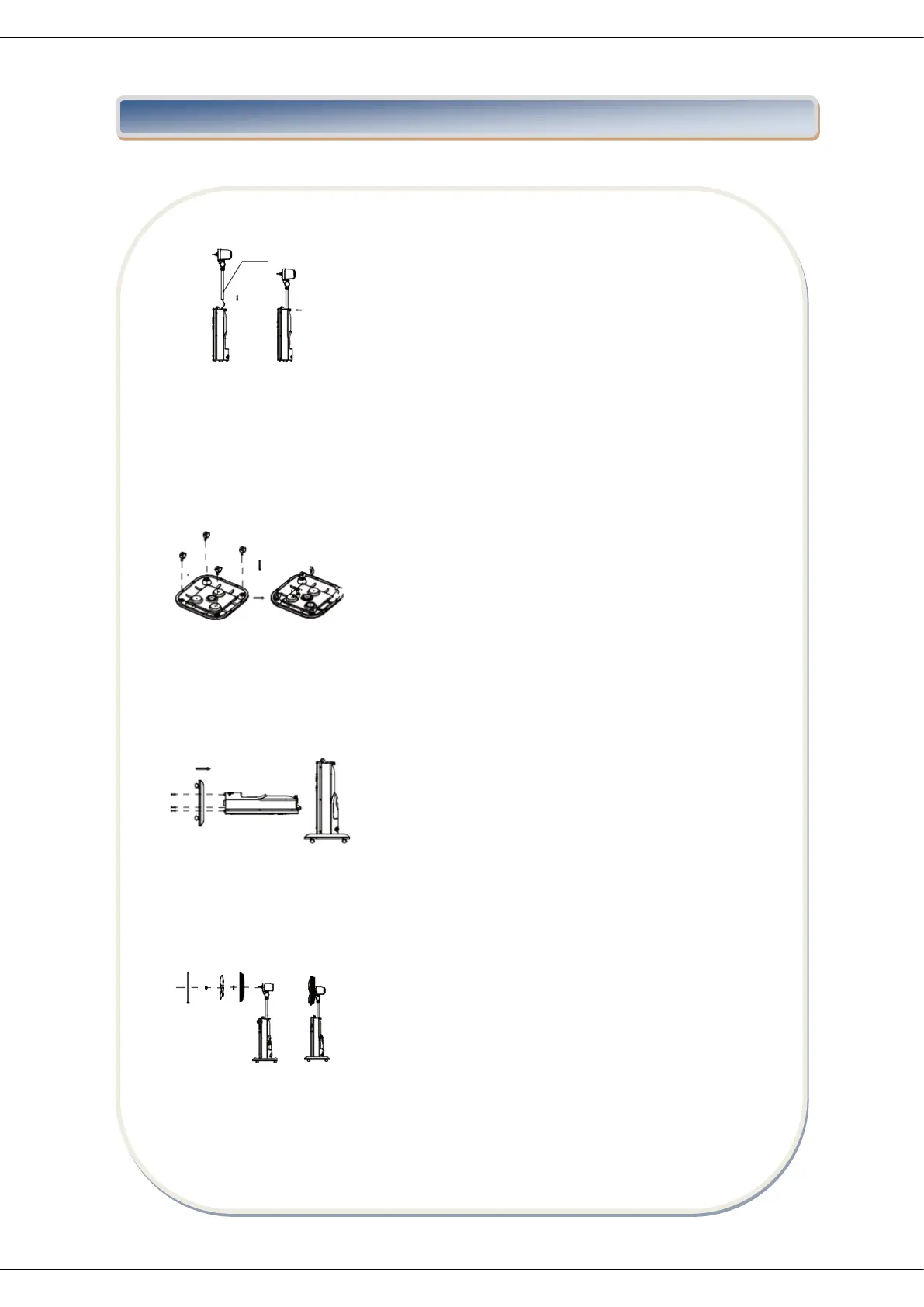

V. INSTALATION METHOD
1. Assembly of host
Take out the motor assy and host assy from the package, as is shown in Figure 1,
insert the connecting wire and the column into the host, then tighten the fastening
knob and ensure to drive the screw into the positioning hole.
2. Mounting the casters
Take out the base and casters from the package, as is shown in Figure 2, and press
the casters into the base mounting hole.
3. Mounting the base in the host
As is shown in Figure 3, put 3 screws (M5 * 20) through the base, and fix the base
host in the nuts embedded in the host bottom.
4. Mounting the rear guard and blade
As is shown in Figure 4, in sequence, mount the rear guard, guard nut, blade, blade
nut and net clamp.
Fig. 1
pilot hole
Fig. 2
Fig. 3
Fig. 4

Heinner HMF-18GREY Specifications

General

Brand	Heinner
Model	HMF-18GREY
Category	Fan
Language	English
