5. Assembling the chassis

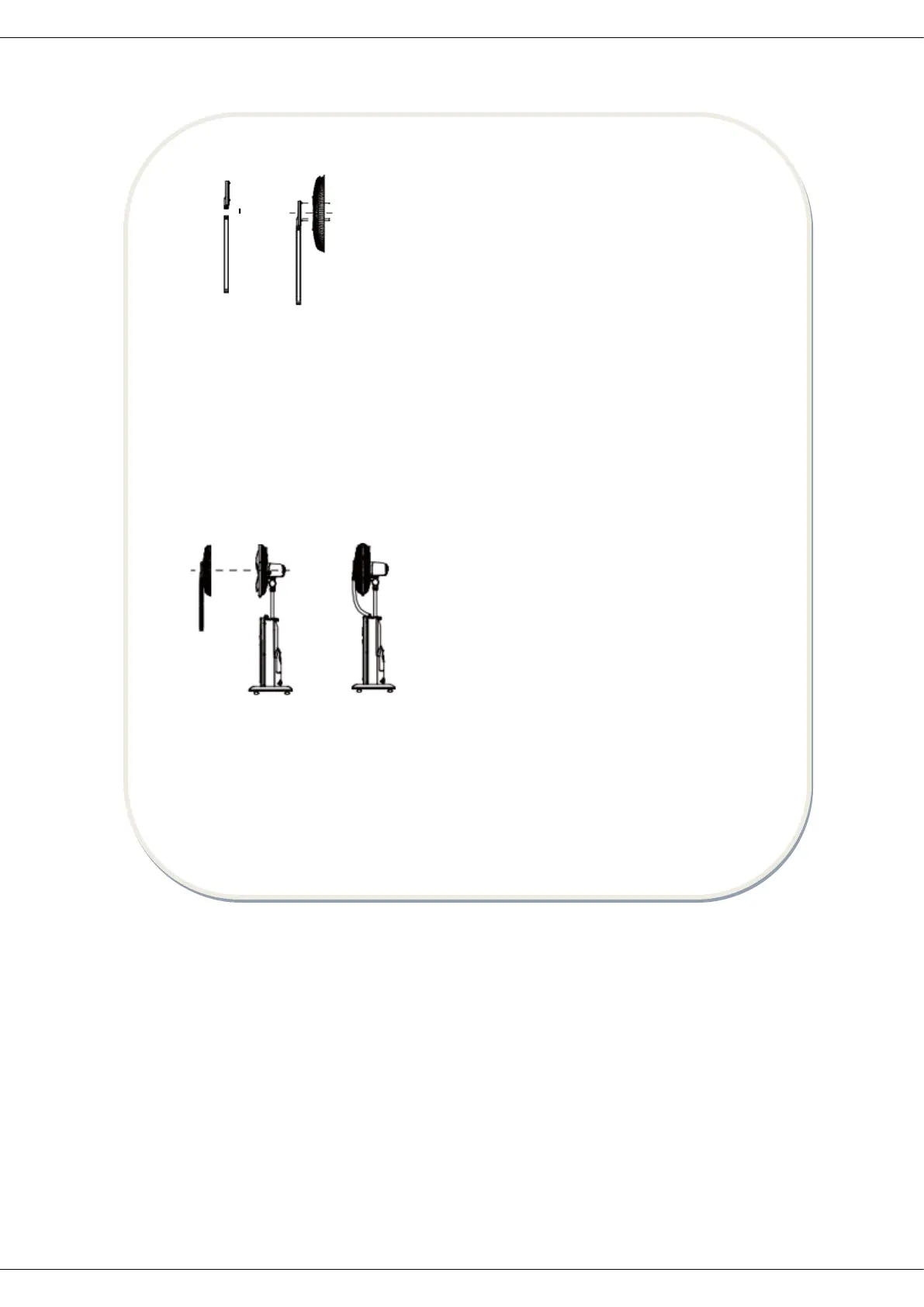

As is shown in Figure 5, press the spray cap into a corrugated hose, during assembly,
perform pressing while rotating, and then with screws, fix the spray cap on the front
guard.
6. Mount the components of front guard into the net clamp
As is shown in Figure 6, mount the front guard into the net clamp, screw in the net
clamp and then tighten the screws; then mount the corrugated hose on the top of
host.
Fig. 6
Fig. 5
