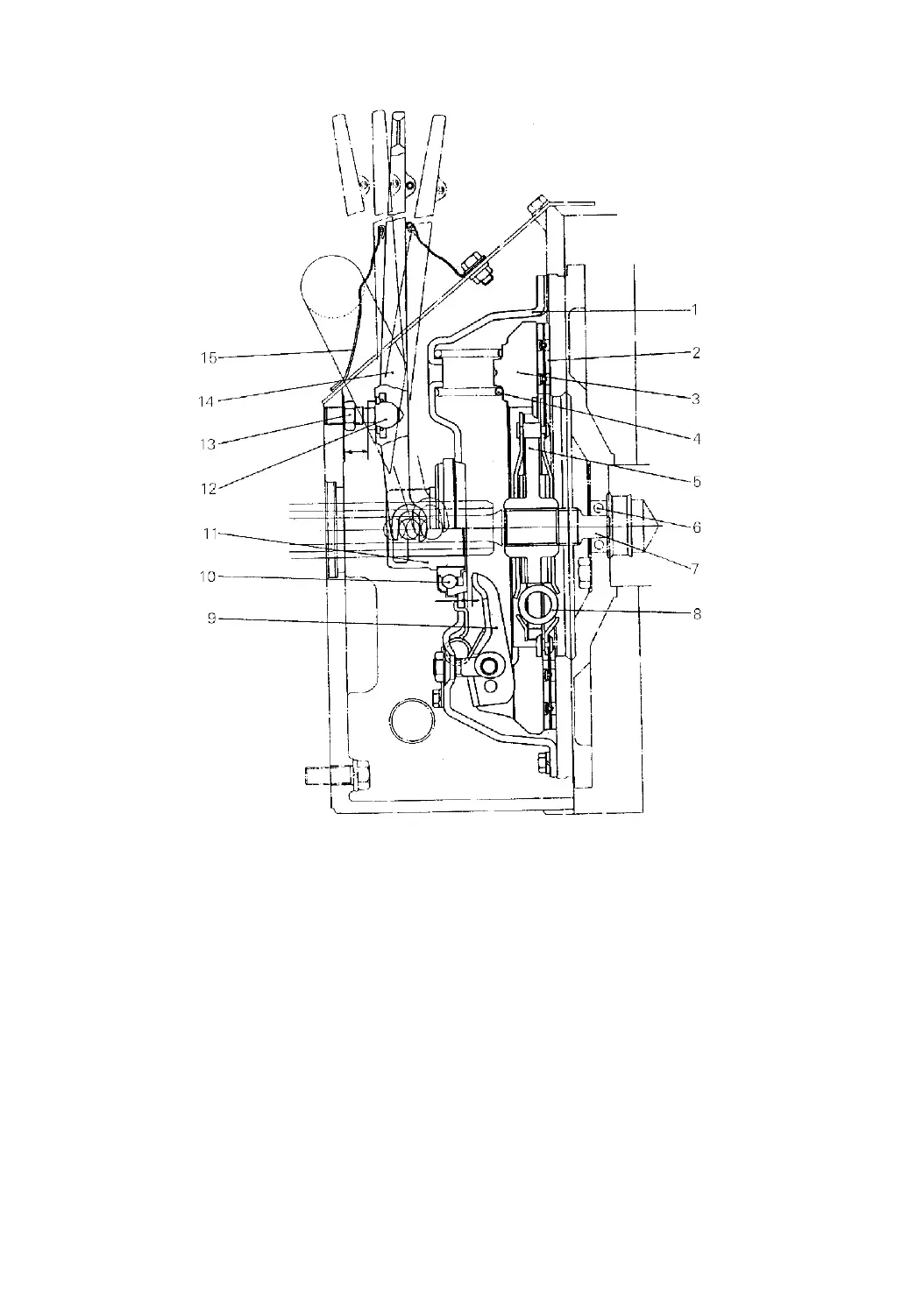

(1) Pressure plate case (2) Friction piece (3) Pressure plate (4) Pressure spring
(5) Hub (6) Bearing (7) Driving shaft (8) Coil spring (9) Release lever
(10) Release bearing (11) Release bearing block (12) Bolt (13) Lock nut
(14) Release yoke (15) Cover
Fig.2-1 Clutch
(6) After making certain that the driving shaft end has entered the middle
bearing of the flywheel, tighten the slide lead screw to the torque of 107-119N.m
(10.9-12.1kgm).
(7) Install the pressure plate case on the flywheel.
-15-
