(8) Press the clutch pedal and remove the three spacers.
(9) Adjust the travel of the clutch pedal. (See Fig.2-2)
2.3 Clutch Pedal
The clutch pedal and the brake pedal are fitted on the same bracket. The clutch
pedal is secured on the transmission.
2.4 Adjustment of Clutch Pedal Travel (See Fig.2-2)
(1) Loosen clutch pedal stopper bolt (a).
(2) Using stopper bolt (a) to get a pedal height from the floor of 111mm. Spare
travel is 30-40mm.
(3) Detach the spring at the end of the clutch pedal and loosen the nut (b).
(4) Press the clutch pedal about 30 to 40mm. At this time, pull the release yoke
forward. When resistance is felt, turn spherical nut (b) until it comes into contact with
release yoke and then lock with lock nut (c).
(5) Install the pedal spring properly.
Spare travel
Pedal height 115mm
Stopper bolt (a)
Spherical bolt (b)
Lock nut(c)
Clutch pedal

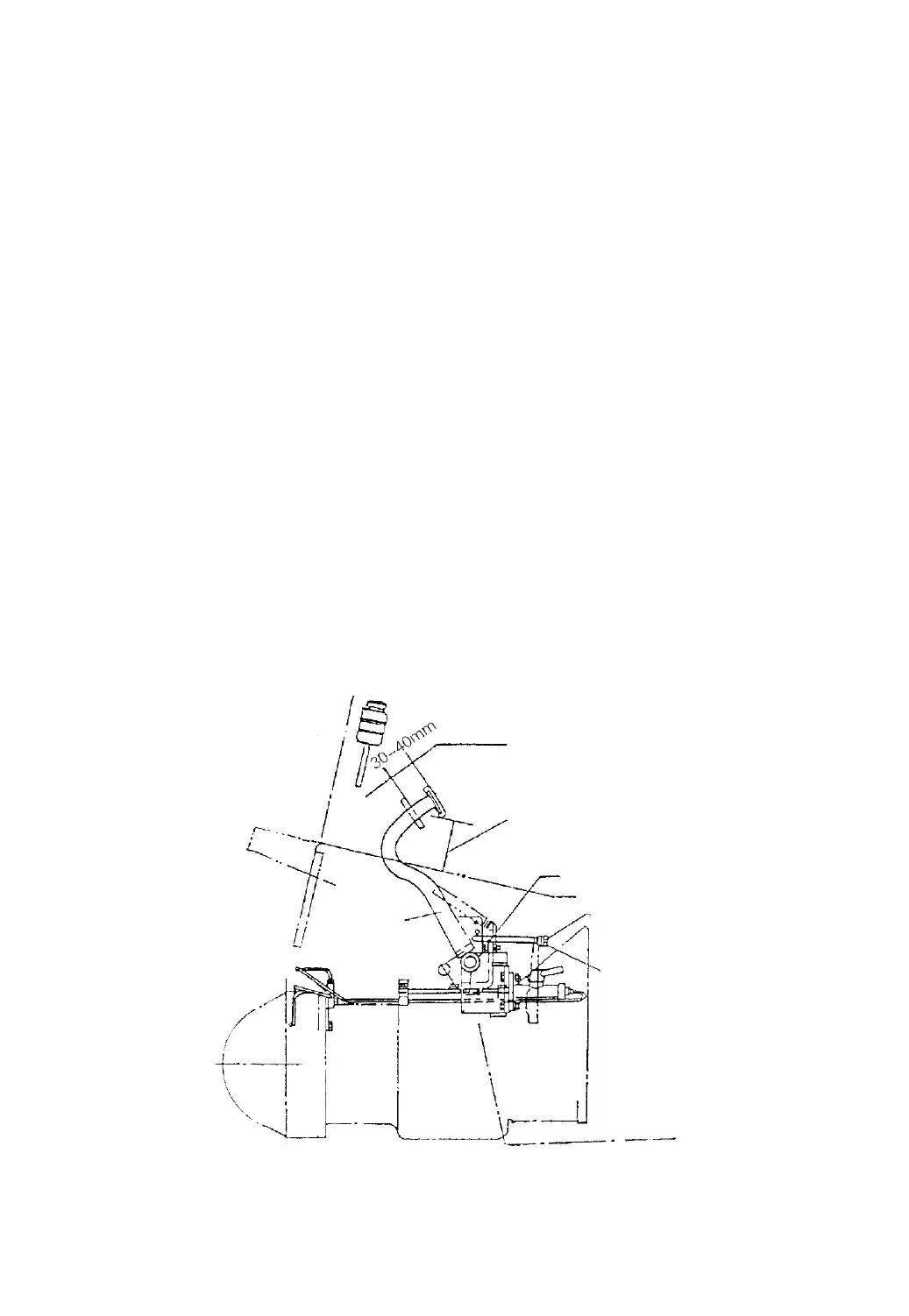

Fig.2-2 Clutch pedal
-16-
