(7)Knock at the end of the rotating
rod slightly but not heavily and remove
the rod (See Fig. 3-19).
(8)Remove the shift forks together
with the shift rod.
Note: Take down the position of
the shift forks then. (See Fig.3-20)
3.6Remounting of Shift Fork
The remounting of the shift forks is contrary to the removal of them in operation
order. Besides these, the followings should be noticed in the course of the remounting:
(1) The remounting should be done in a clean place to prevent dust and foreign
matters from going into the transmission.
(2) Check all parts for wear and damage and replace the parts excessively worn
or damaged.
(3) As a rule, each of O-ring and other seals removed should be replaced with
new ones.
The remounting procedures of the shift forks are as follows:
a) Place the spring and the steel ball into the hole of the shift forks and put the
shift lever in and then slightly knock at the lever to fit them properly (See Fig.3-21).
Note: ●The shift forks position should be the same as the position before
the removal above.

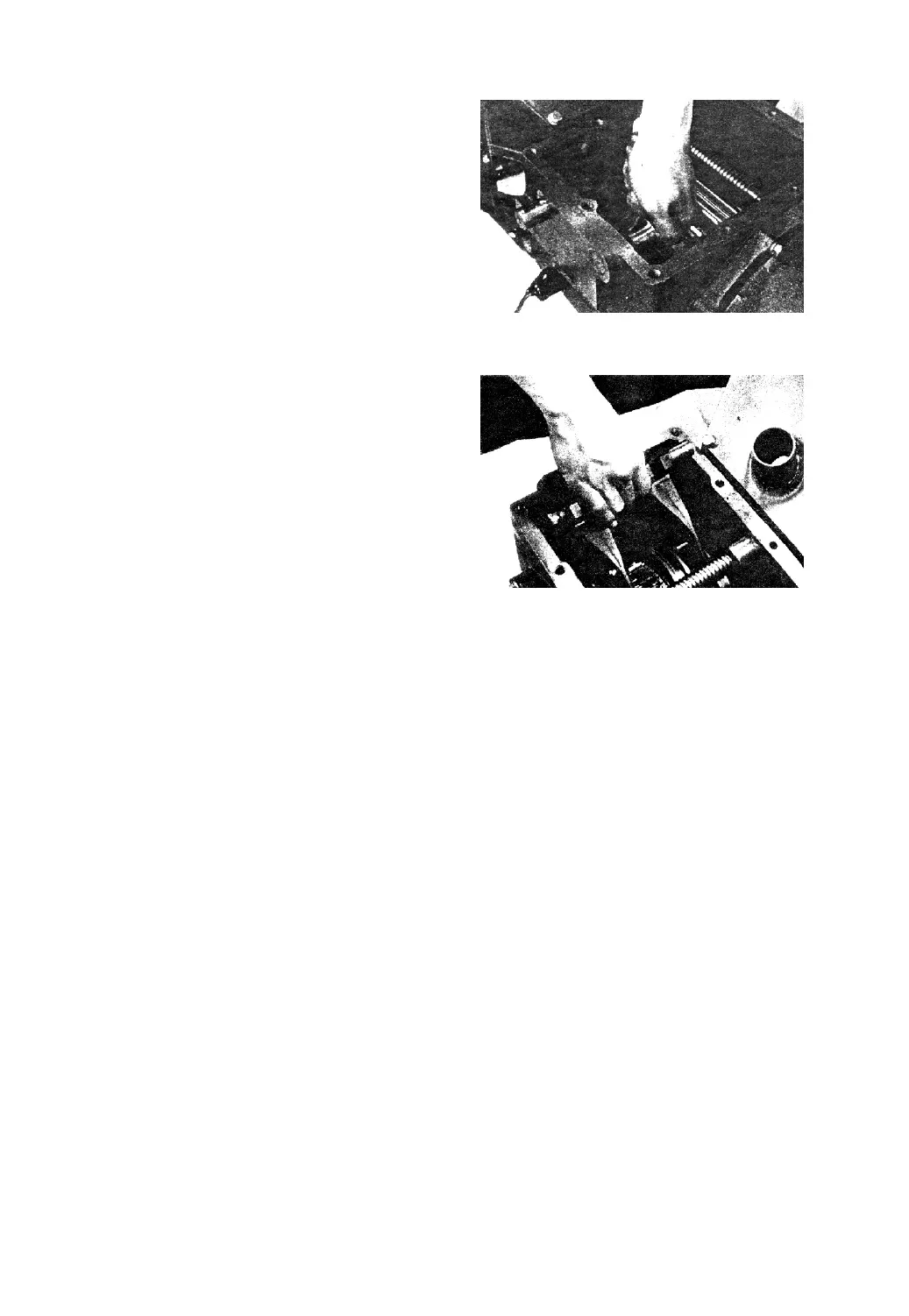

Fig. 3-19
Fig. 3-20
-28-
