HELI CPC 25 User Manual

●The steel ball in the shift fork
should fall into relative midchannel of
the shift lever.
b) Align the shift forks with the
channel of mesh sleeve and put the shift
forks and the direction shift lever into
the transmission. (See Fig.3-22)
c) Properly fix the shaft arm (See
Fig.3-23) and notice the position of the shift rod. (See Fig.3-24)
d) Two mounting bolts should be
tightened to a torque of 28.4-44N.m
(2.9-4.5kgm) before tightening the stop
screw at the end of the shaft arm (See
Fig.3-25).

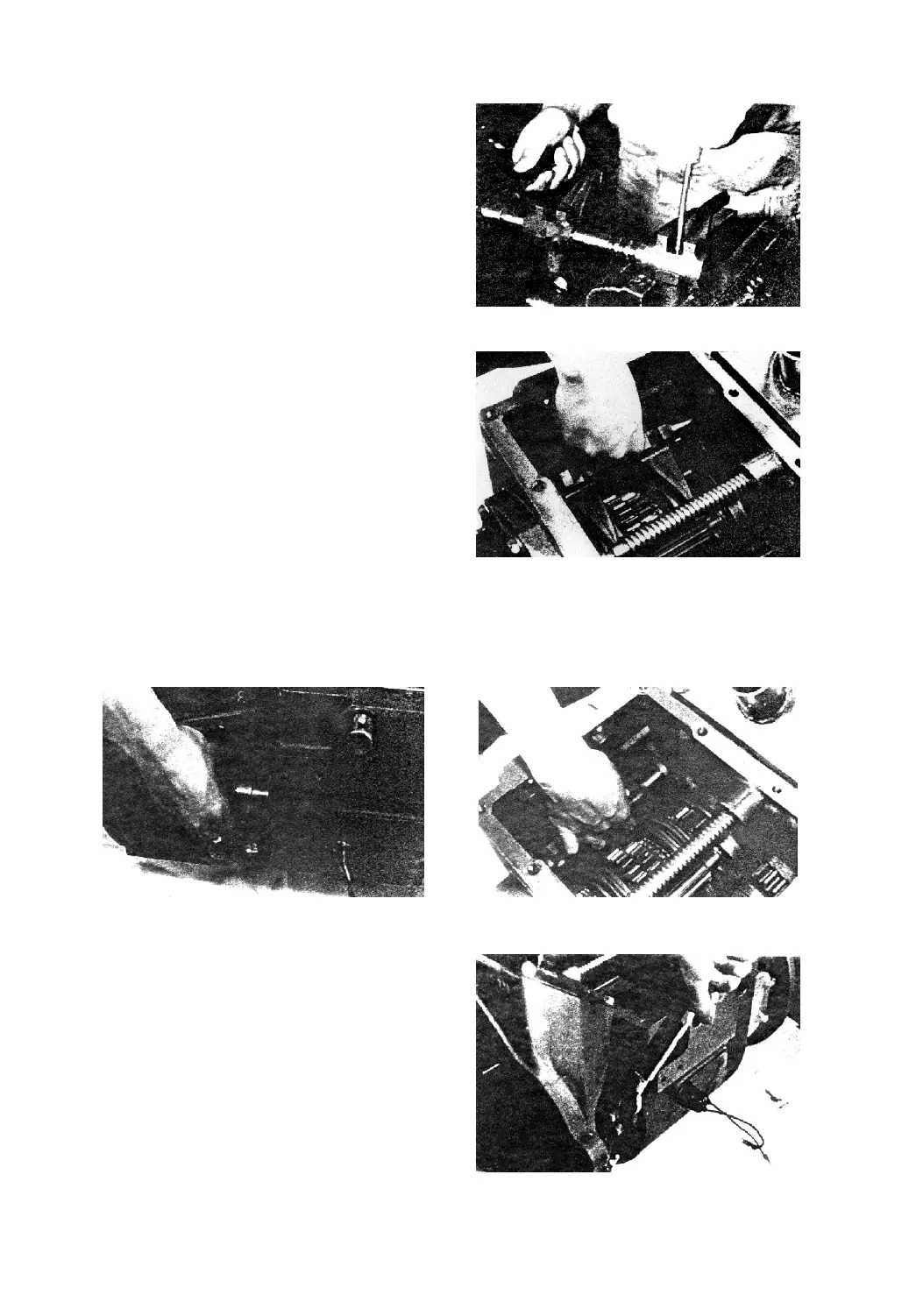

Fig. 3-21
Fig. 3-22
Fig. 3-23 Fig. 3-24
Fig. 3-25
