(5) Install the brake cable
assembly on the backing plate with
and E-retainer.
(6) Install shoes on the backing
plate with hold-down springs.
However, hold-down spring at the
secondary shoe lower part should be
fitted only after the spring seat and
adjusting lever are properly mounted.
Make sure the spring seat settles
snugly in the shoe and the adjusting
lever holes. (See Fig.8-23)
(7) Put the spring on the
parking push rod and then install the
rod on the shoe.
(8) Install the shoe guide plate
on the anchor pin, and install the shoe
return spring. (See Fig.8-24)
(9) Install the clearance self-
adjuster, adjuster spring, and push
rod and its return spring. (See Fig.8-
25)
Pay attention to the following points:
a) Adjuster thread direction and its mounting direction (In the 2 ton trucks, right-

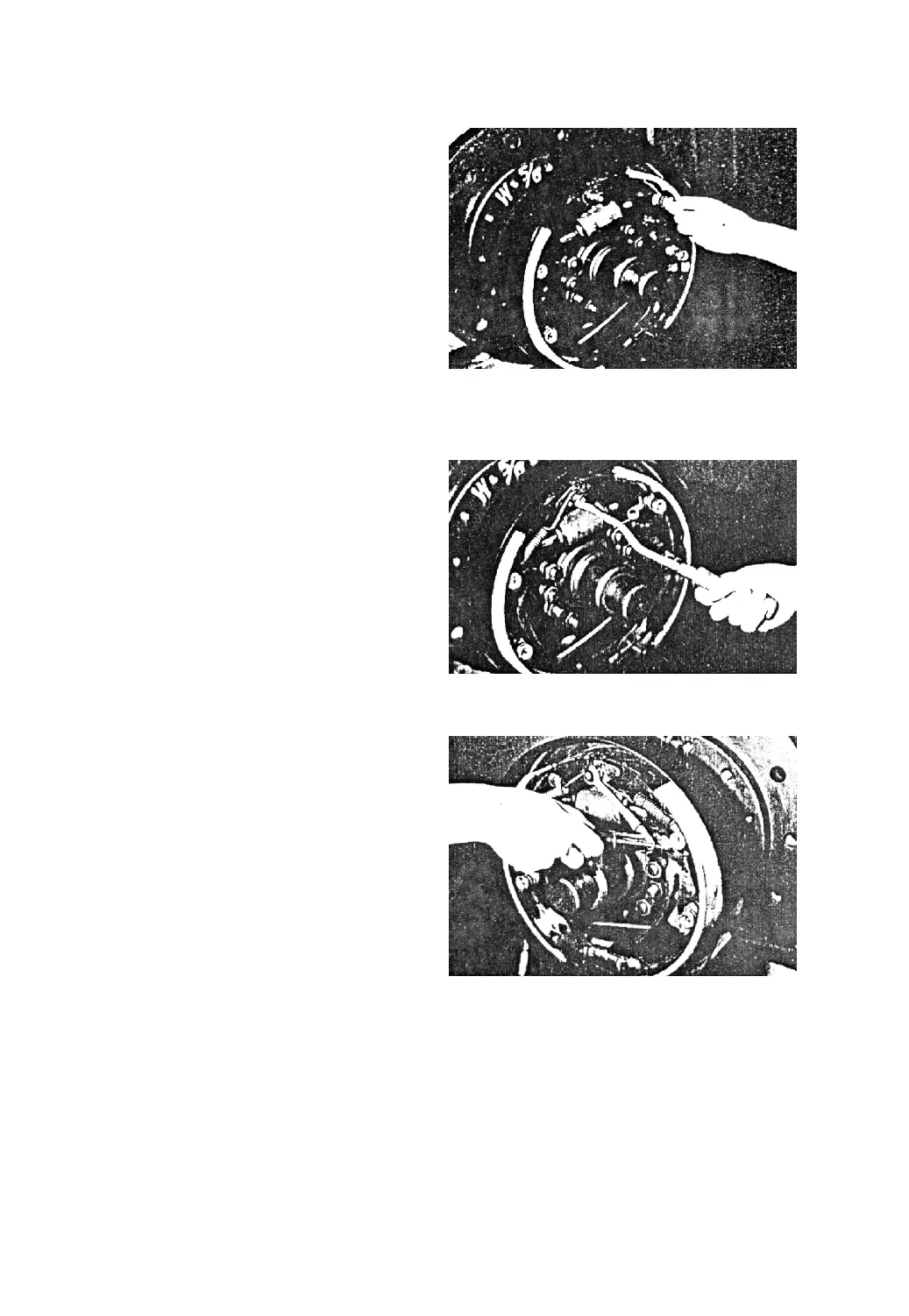

Fig. 8-23
Fig. 8-24
Fig. 8-25
-66-
