EN EN
MultiVent
®
– MV EC
Installation and Operating Instructions
7
height, e.g. in suspended ceilings.

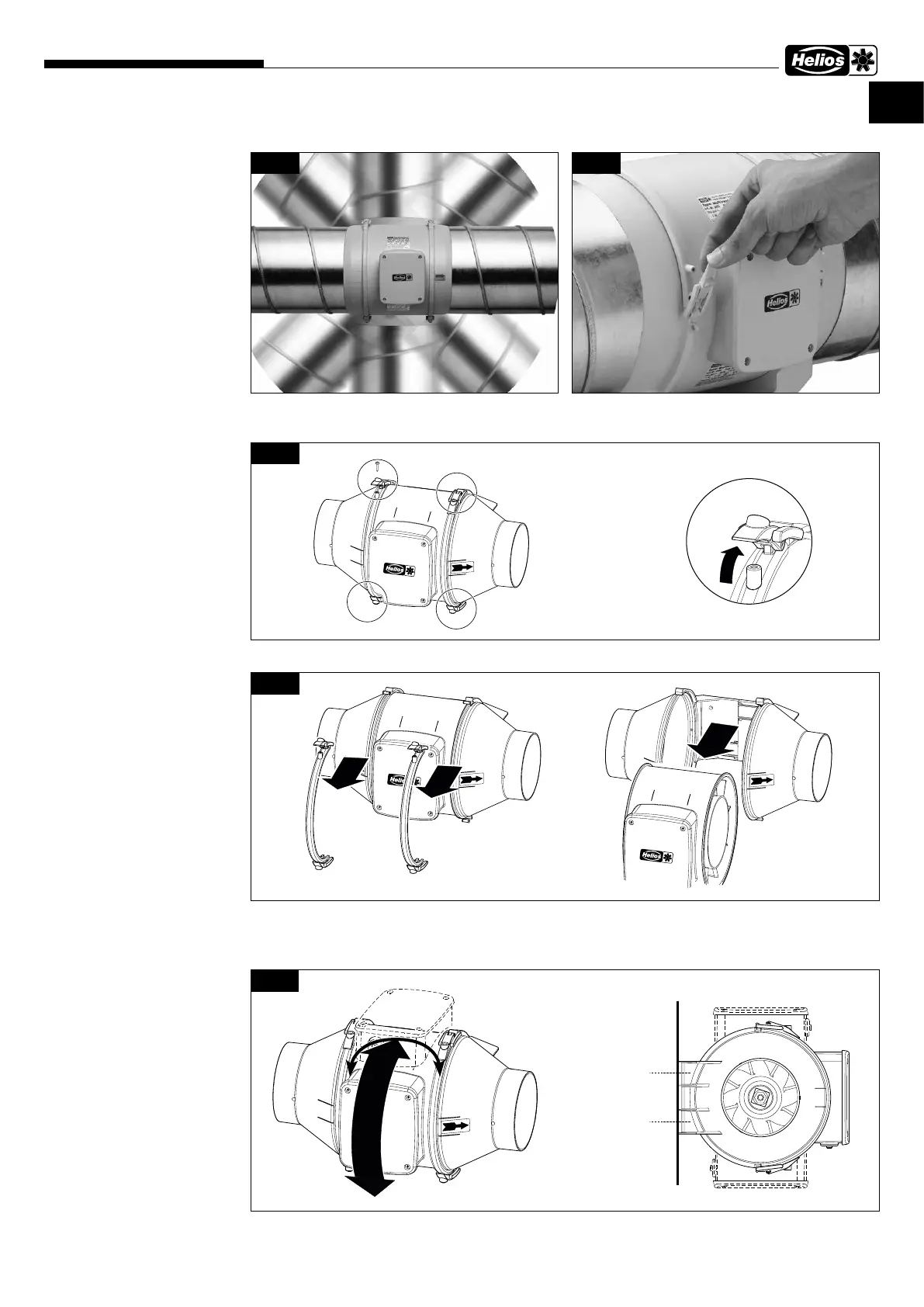

Wall and ceiling installation takes place with the mounting bracket integrated in the fan.
For this purpose press lock upwards (see Fig.15).
Remove clamp and fan unit from the mounting bracket (see Fig.16).
Mark mounting position and drill holes and fasten with dowels and screws (in scope of delivery). Then replace the fan
unit and mount the clamp with screws (4x; included in delivery).
Assembly
Variable positioning of the fan or terminal box is possible, depending on installation conditions (see Fig.17).
Structure-borne sound transmission
It must be ensured that structure-borne sound transmission to the building and duct system is prevented!
Fig�13 Fig�14
Fig�15
Fig�16
Fig�17
Wall
