Speed Potentiometer PU/A ..
Helios Ventilatoren
2
12.0
Accessories, switch and
control elements
The use of accessories which are not
recommended, offered or approved by
HELIOS is not permitted.
Any potential damage is not covered
by warranty.
13.0 Technical data
Plastic casing, white,
Protection class IP 40
Potentiometer:
approx. 7.9 - 16.5 kOhm
(depending on setting of min. Potis)
Max. 24 V DC
Switch:
Max. 24 V DC / 0.5 A
LED:
PU/A 10
Power supply 10 V DC min. 6 mA
PU/A 24
Power supply 24 V DC min. 6 mA
Connection terminals:
single-wire 0.5 - 1.5 mm²
with wire-end ferrule 0.25 - 1.0 mm²
Stripping length 9 - 10 mm
Permissible ambient temperature:
0 - 40 °C
Dimensions:
W 80 x H 80 x D 65
Wiring diagram no.:
SS-1000
Dimensions in mm

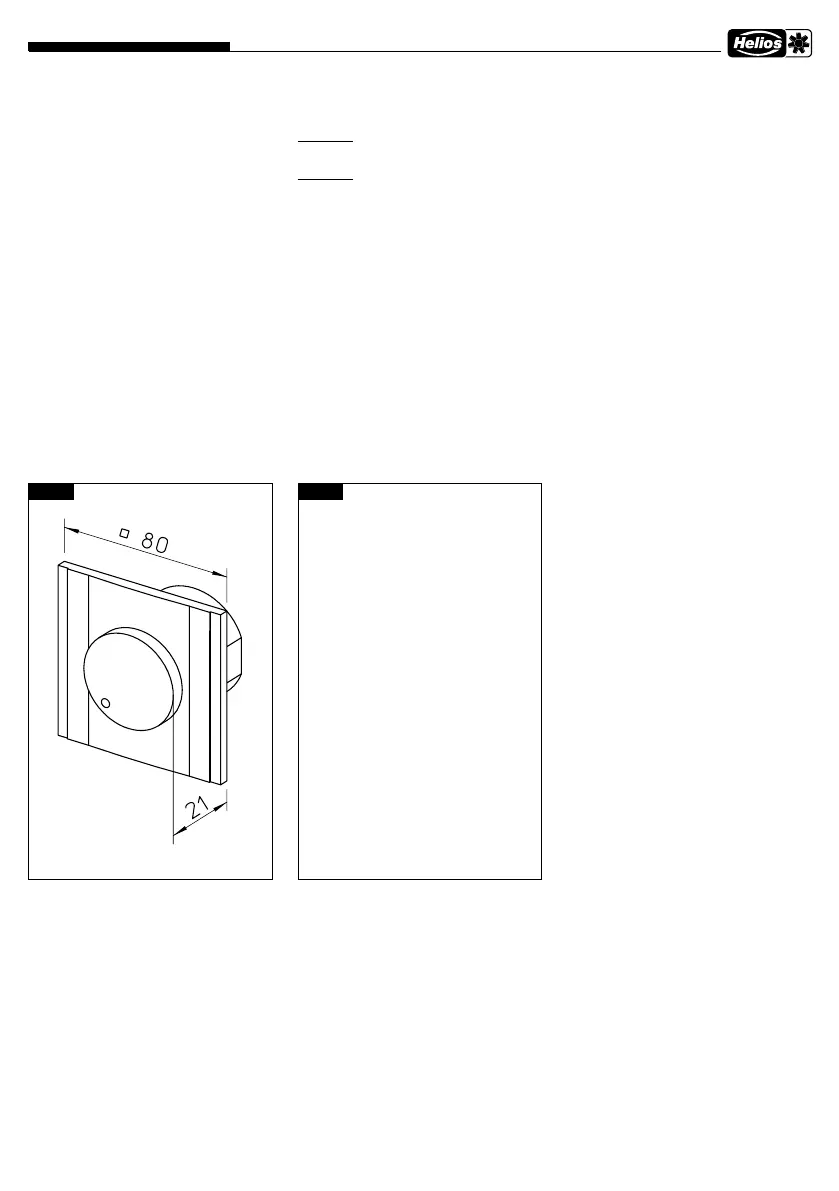

Fig.3Fig.2
Installation dim. surface-mounting
Installation dim. flush-mounting
Dimensions in mm
