Helix Broadcaster 100 Touch Screen User Guide CHAPTER 2: Inputs
10

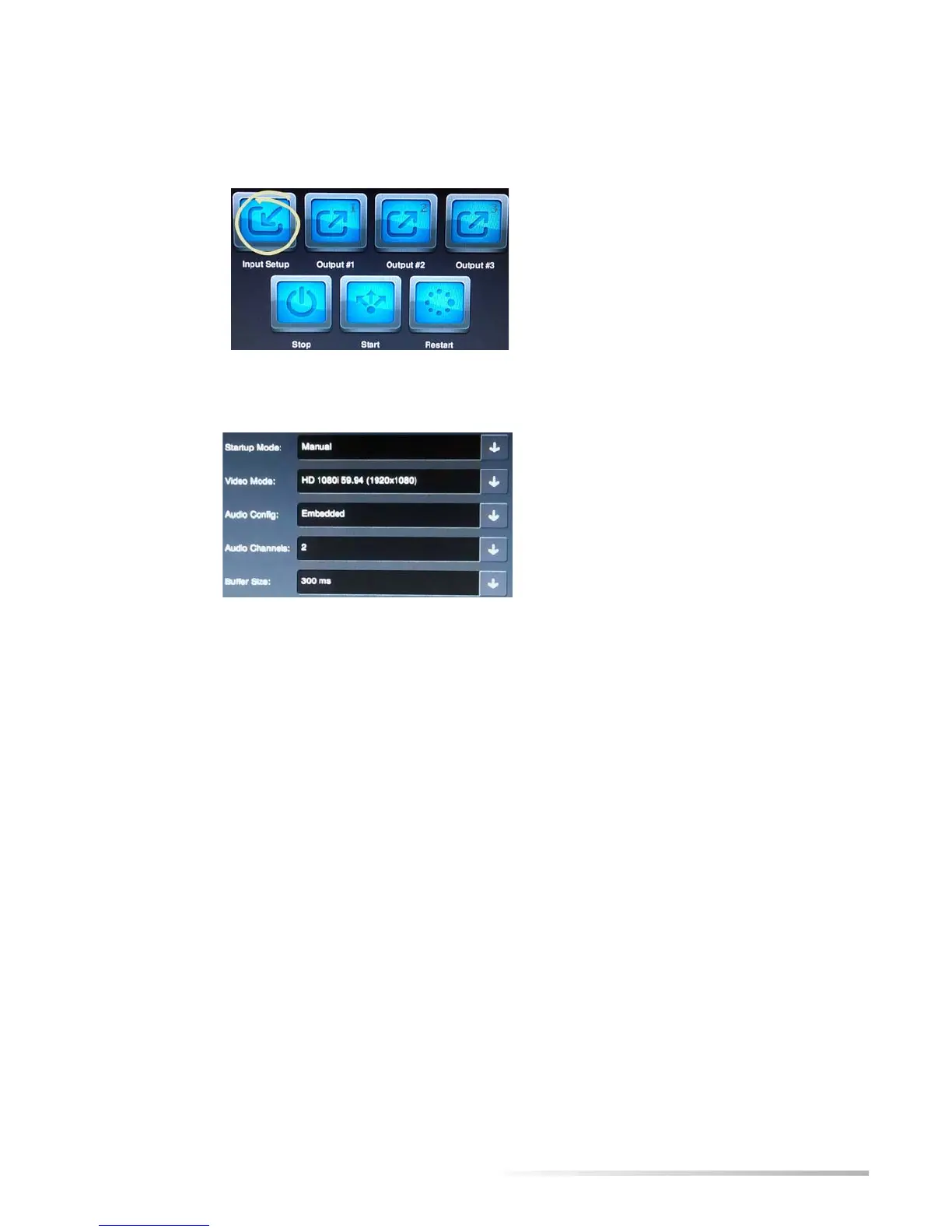

On the Stream Setup screen that appears, tap Input Setup to define the input characteristics.
Input Setup Selection
The Input Setup screen defines the characteristics of the input stream.
Capture Input Setup Screen
Startup Mode
For Startup Mode, the default is Manual, which means that you start the encoding process as
described in the section “Stream Control” on page 31. The
Automatic value is currently not
functional, although you can set
Always On in the browser interface (see page 7). In this case, the
encoding process begins when you define the output and start the stream manually. After that,
it restarts automatically if Helix Broadcaster is rebooted.
Video Mode
Under Video Mode, select the specifications of the incoming video, including the frame size
(such as
1920x1080) and the frame rate (such as 59.94). The drop-down lists the common
output formats for NTSC, PAL, and HD video. Drag the slider to view all of the options. Tap an
input format description to highlight the radio button for that input format.
