HELLER HPAC12 User Manual

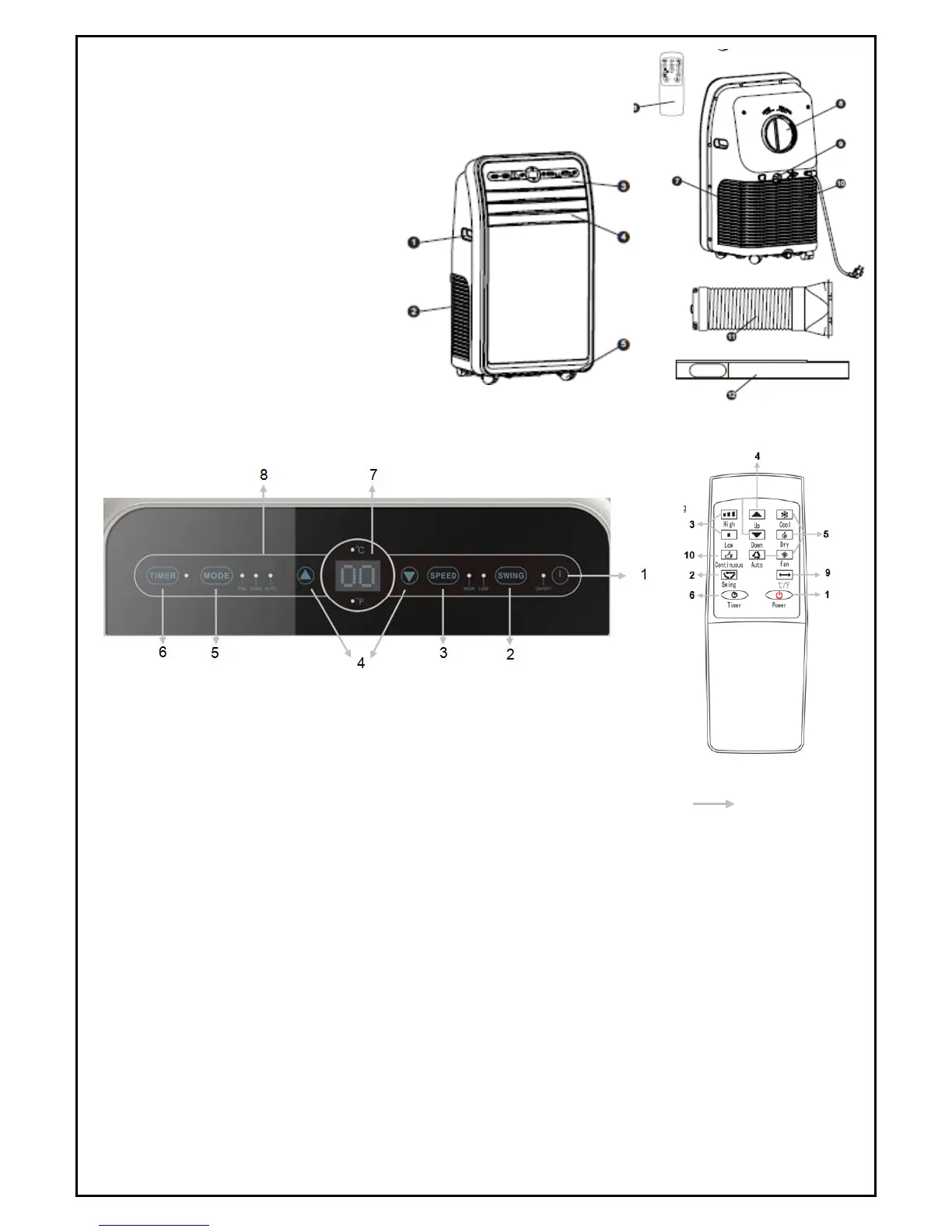

Identification
1. Handle
2. Air inlet (L)
3. Control panel
4. Louver
5. Castor
6. Remote control
7. Air inlet (R)
8. Air outlet
9. Dehumidification drainage nozzle
10. Air inlet grille
11. Exhaust pipe assembly
12. Window slider kit
Control Panel & Remote Control
1. Power On/Off button: Press the button to turn On/Off.
2. Auto-swing button: Press this key at any time after turning on the
appliance to swing the louvers automatically.
3. Speed button: Press the key to choose high/low fan speed.
4. Temperature/time adjusting button: Press the key at cooling mode to increase/reduce the setting
temperature; press it at timing mode to adjust timing ON/OFF time; press Up and Down keys
simultaneously to switch Fahrenheit and Centigrade degree temperature.
5. Mode button: Press the key to choose cooling, fan, dehumidifying and auto-mode
6. Timer button: Press the key at standby mode to set TURN-ON time. Press this key set TURN-OFF time
when the unit is on.
7. Temperature/ time display window: This window displays the adjusted temperature and time.
8. Remote controller receiving window: This window is used to receive signal of remote control.
9. °C/℉ button: Press the key to switch from ℃ to ℉ and vice versa.
10. Max. Cool: Press this button in cooling mode to achieve maximum cooling.

HELLER HPAC12 Specifications

Operating Pressure

permissible excessive operating pressure (suction)	1.0 MPa
permissible excessive operating pressure (discharge)	3.5 MPa
maximum allowable pressure (low pressure side)	1.7 MPa
maximum allowable pressure (high pressure side)	5.5 MPa

Performance

cooling capacity	3.5 kW
air flow	420 m3/h
noise	55 dB(A)
rated input (cooling)	1450 W

Refrigerant

refrigerant type	R410a
refrigerant charge	565 g

Power Supply

power supply voltage	220-240 V
power supply frequency	50 Hz
fuse voltage	250 VAC

Weight and Dimensions

net weight	28.5 kg
gross weight	33 kg
dimensions (WxHxD)	443x830x340 mm
