Hemisphere GPS Crescent Vector H220 - Mechanical Layout

H220 Integrator Guide Chapter 2
–
Board Overview
Page 10 of 28
Mechanical Layout

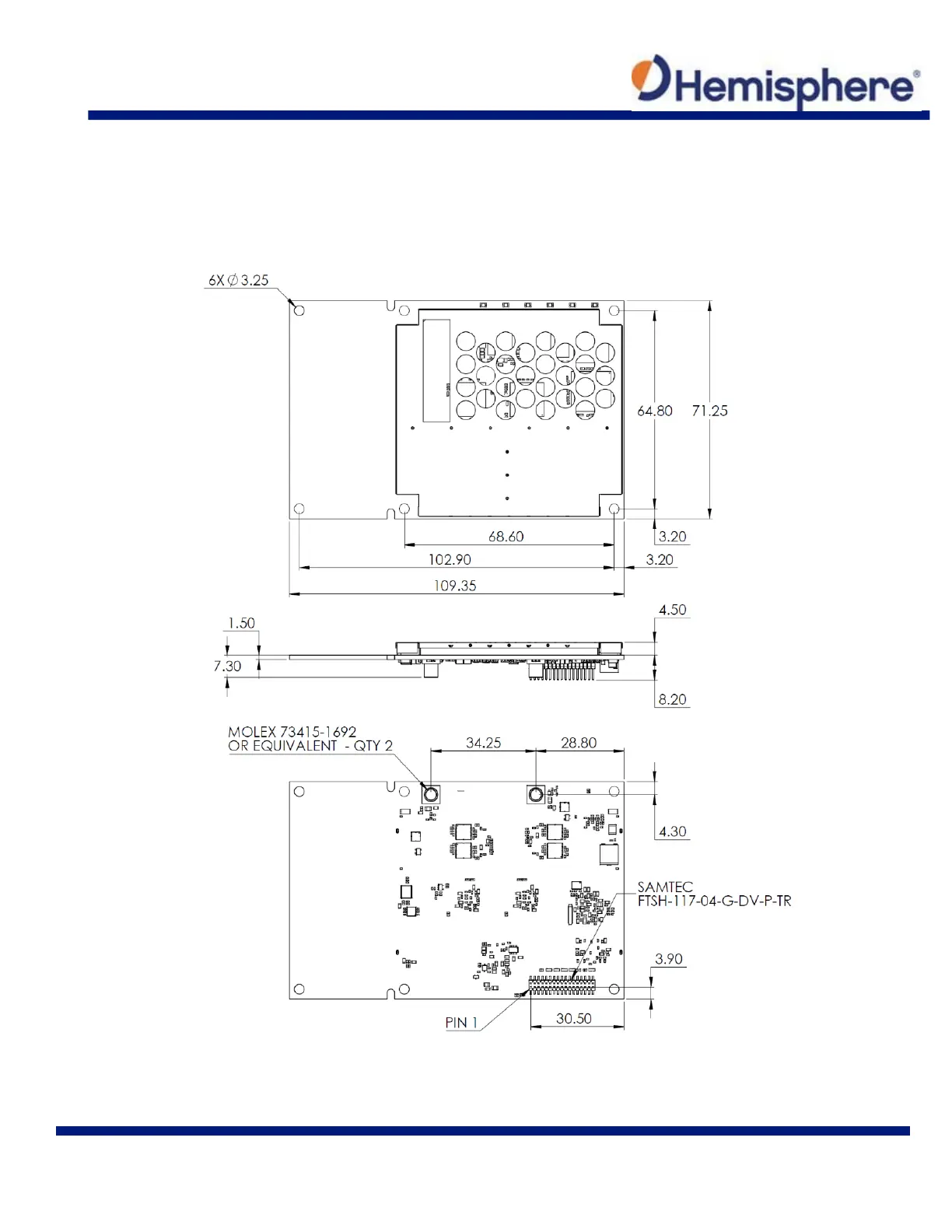

Figure 2-1 shows the mechanical layout for the H220 OEM board. All dimensions are in
millimeters.
Figure 2-1: H220 Mechanical Layout
