Henley BLASKET - Page 9

Installation Instructions
www.henleystoves.com | 9
Gravity Radiator
Pipe Stat
Gravity Return
28mm Pipe
Drain Cock at
Lowest Point
Circulating Pump
Central Heating Return 22mm Pipe
Radiators
Radiators
22mm Open Vent
Gravity Flow
28mm Pipe
Feed and Expansion Tank

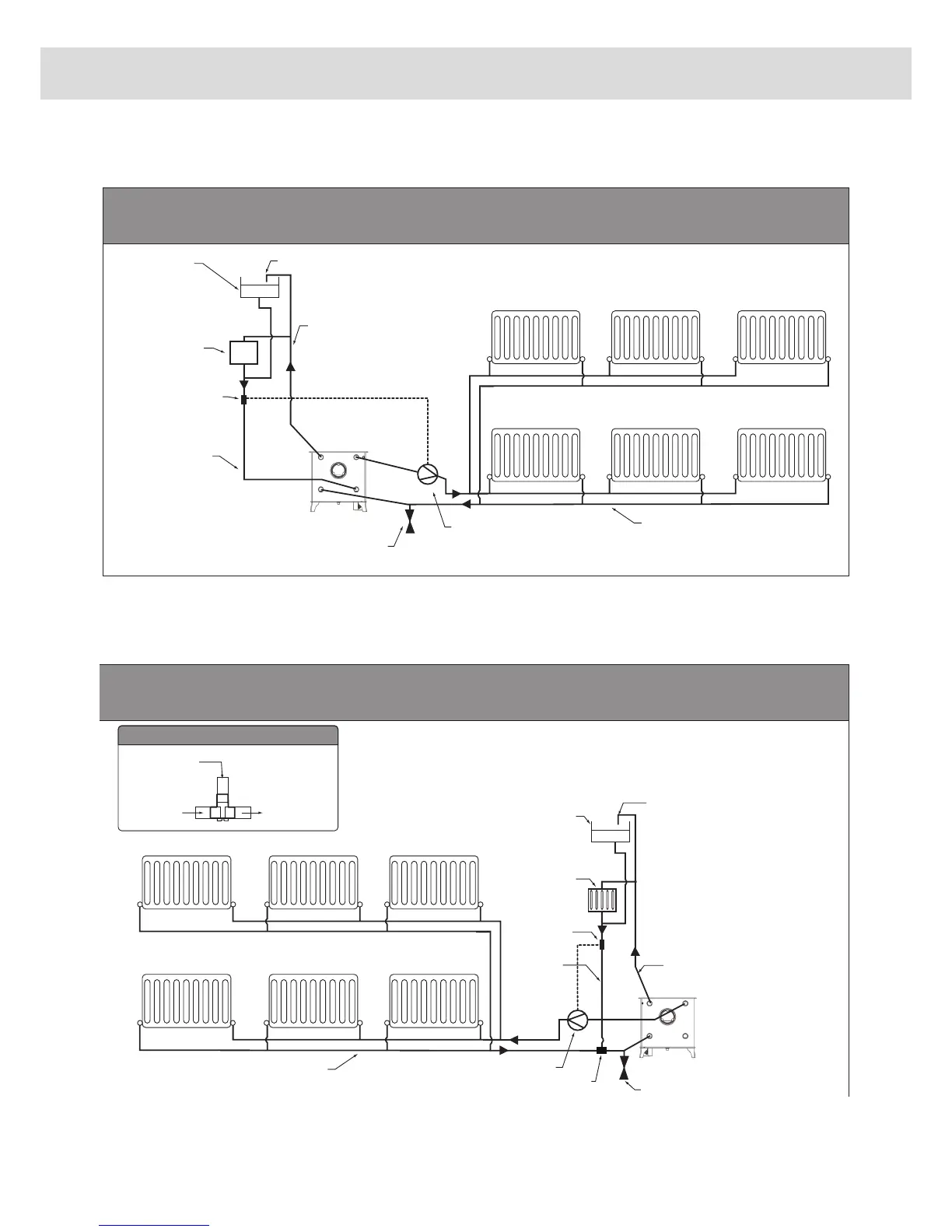

Central Heating Without Domestic Hot Water System using four boiler tapings.
Circulating Pump
Circulating Pump
Radiators
Radiators
Gravity
Radiator
Central Heating Without Domestic Hot Water System using three boiler tapings.
22mm Open Vents
Feed and
Expansion Tank
Pipe Stat
Garvity Return
28mm Pipe
Injector Te e
Drain Cock at Lowest Point
Gravity Flow
28mm Pipe
Central Heating
Return
Common Return to
Boiler 28mm Pipe
Domestic Hot Water
Return 28mm Pipe
Injector T e e
The appliance needs to be installed by a HETAS approved fitter and in accordance of Building Regulations.
