Chapter 3 Ignition and Starting System
III-5

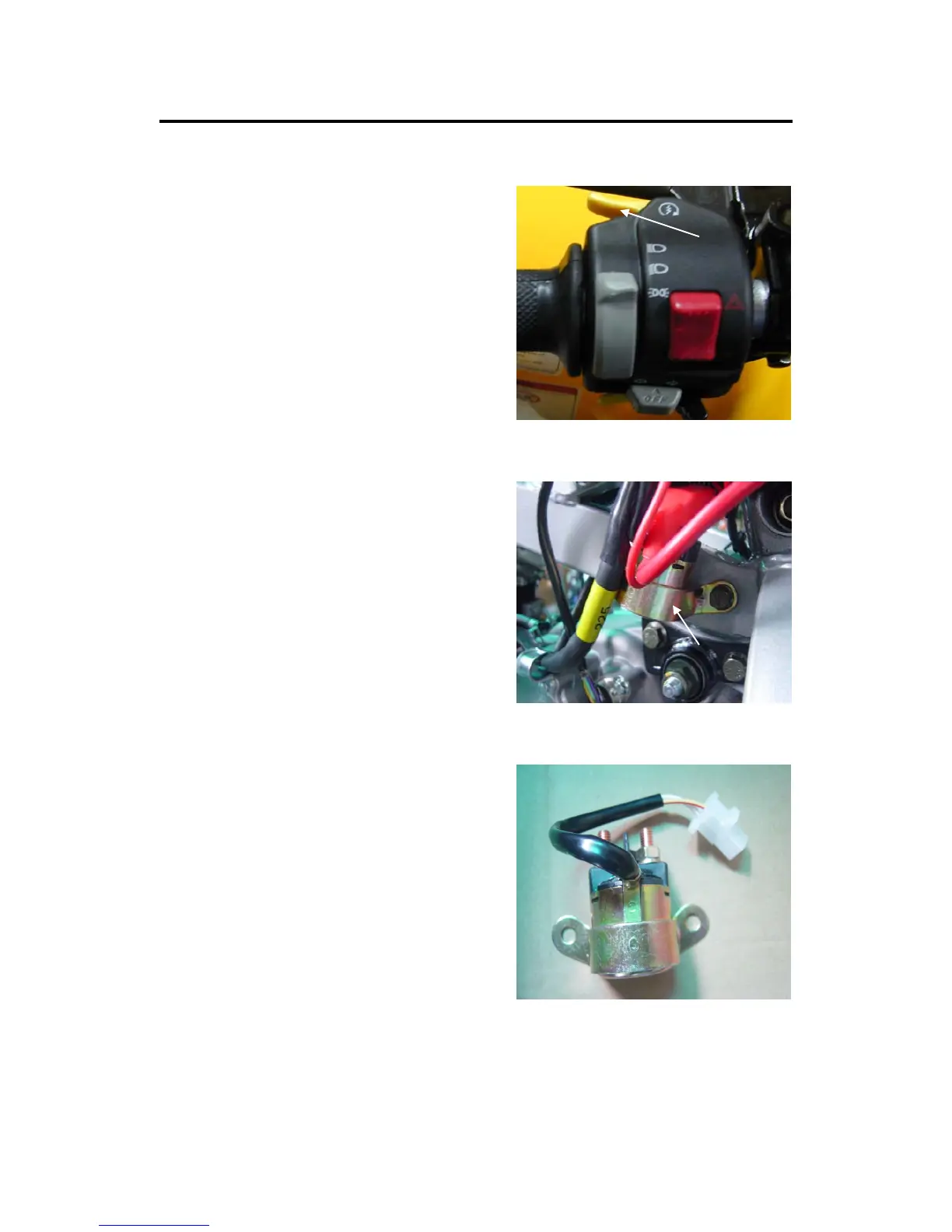

Starter Relay
GENERAL
The relay coil is normal if you hear a click when
starter button is depressed with the ignition
switch ON and brake lever pressed.
REMOVAL/INSPECTION
Remove the seat.
Disconnect the negative battery cable from the
battery.
Disconnect the positive cable and starter motor
cable from the starter relay.
Disconnect starter relay terminal and remove the
starter relay.
Connect an ohmmeter between the positive and
starter motor terminal.
Connect the yellow/red wire terminal to the
positive battery terminal and green wire to the
negative battery terminal by using a jumper wire.
Check for continuity between the starter relay
terminal.
Replace the starter relay with a new one if there
is no continuity.
INSTALLATION
Install the ignition coil in the reverse order of
removal.
Starter switch
Starter relay
