for the technician
Installation instructions
Fixing the boiler
For the installation proceed as follows:
Appliance size and clearances for maintenance: 50mm from both sides and 300mm from the
bottom are reccommended.
— Attach template to the wall (see figure below) with two brackets suitable to carry boiler weight;
— fix up electrical connections and all ducts for heating flow and return, cold water, hot water and
gas, as indicated on template;
— remove template and hang boiler;
Remark: The template is only used as a guide to align the pipework.
— remove plastic caps and their relevant gaskets from boiler connections. Remove bottom
plastic supports by unscrewing their relevant screws. Keep these screws since you will need
them to install bottom grid;
Remark: We suggest not to fix grid until the boiler is definitively commissioned.
— Connect boiler to the pipework installing a cold
water inlet cock. We also suggest to install
cocks on heating flow and return.

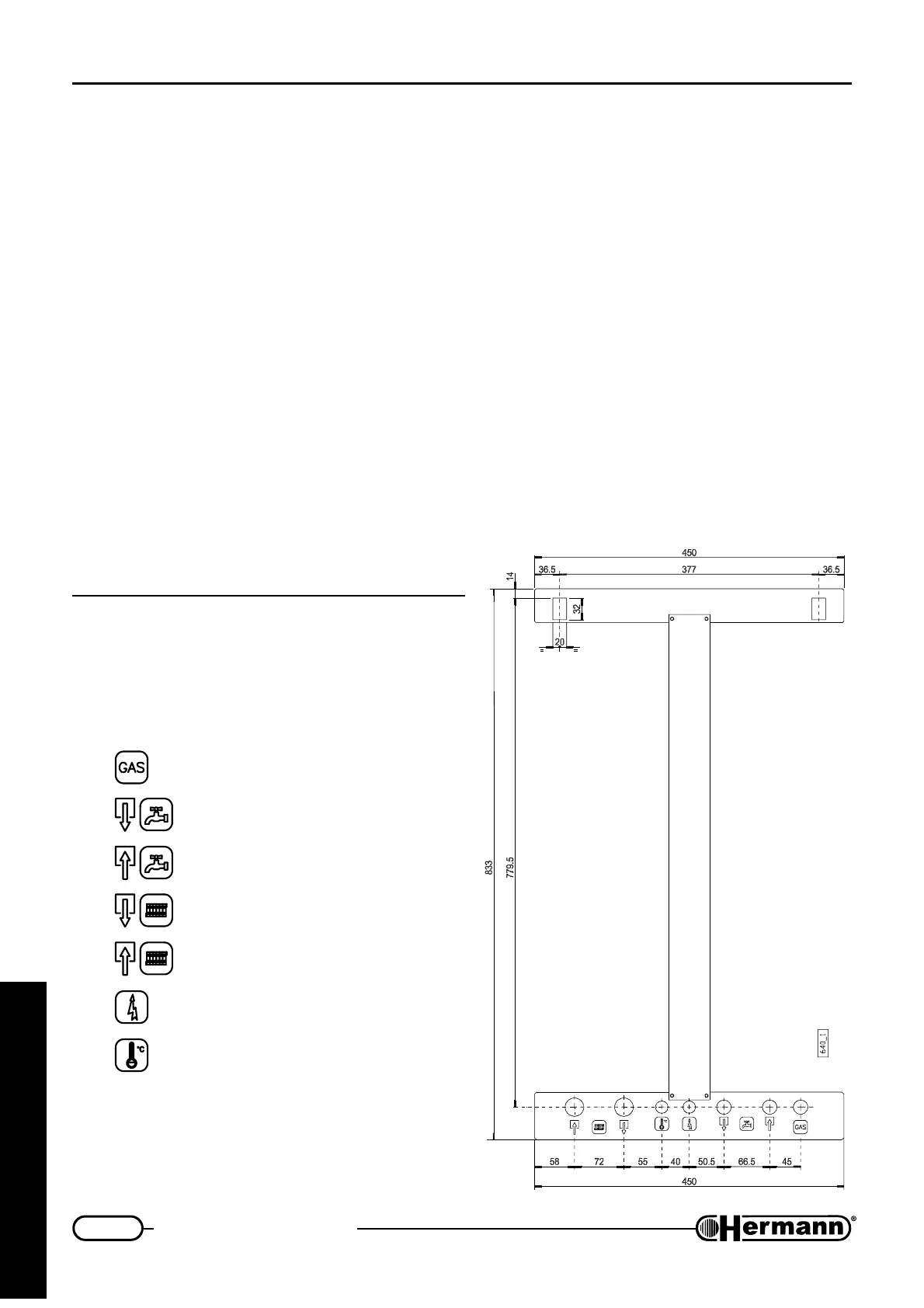

Boiler template
Gas (1/2")
Hot water OUTLET (1/2")
Cold water INLET (1/2")
Heating FLOW (3/4")
Heating RETURN (3/4")
Electrical power supply
Room thermostat
