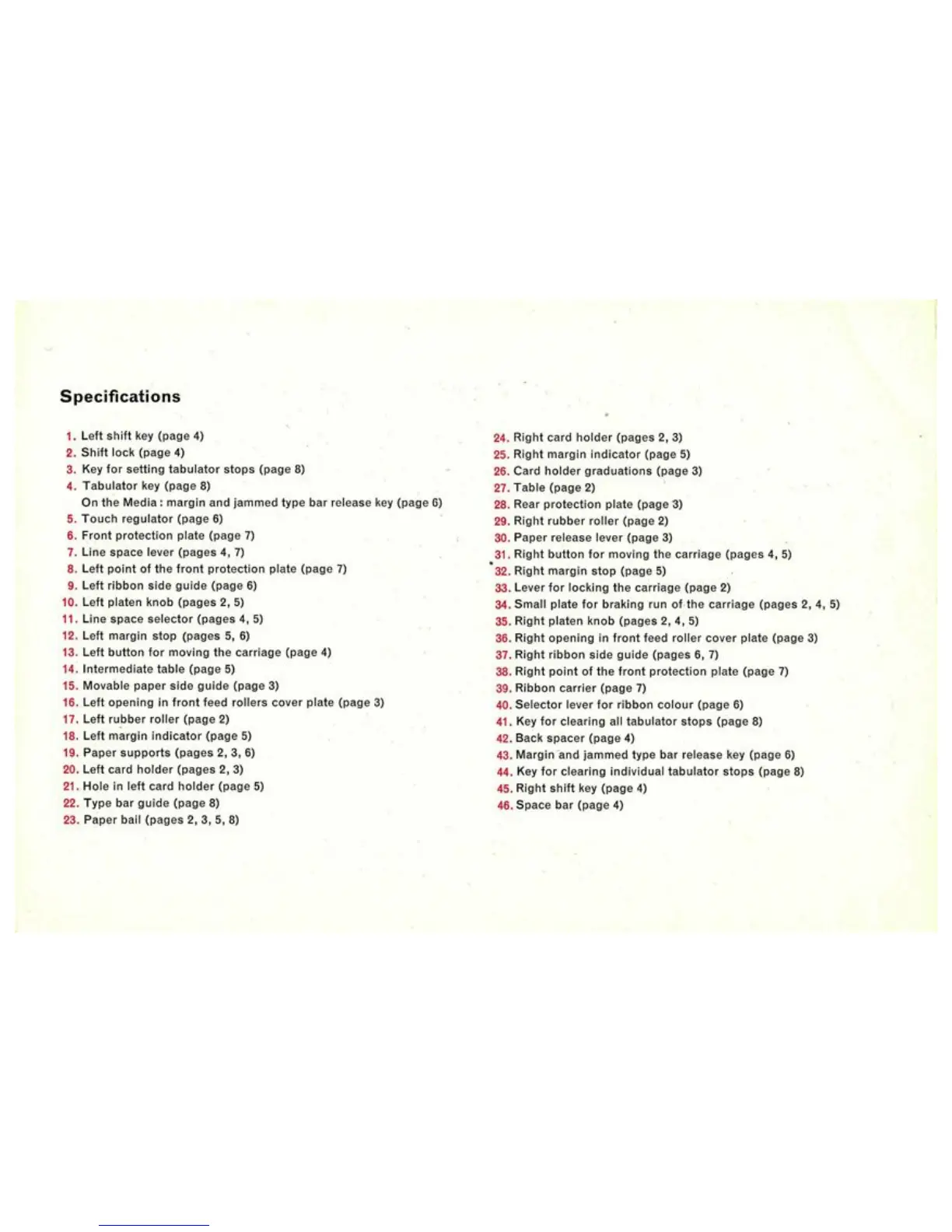

Specifications
1.
Left shift key (page 4)
2.
Shift lock (page 4)
-
3. Key for setting tabulator stops (page
8)
4. Tabulator key (page
8)
On the Media
:
margin and jammed type bar release key (page
5. Touch regulator (page 6)
6. Front protection plate (page 7)
7. Line space lever (pages 4, 7)
8. Left point of the front protection plate (page 7)
9.
Left ribbon side guide (page 6)
10.
Left platen knob (pages 2,5)
11.
Line space selector (pages 4, 5)
12.
Left margin stop (pages 5, 6)
13.
Left button for moving the carriage (page 4)
14.
Intermediate table (page 5)
15.
Movable paper side guide (page 3)
16.
Left opening in front feed rollers cover plate (page 3)
17.
Left rubber roller (page 2)
m
•
I
18.
Left margin indicator (page 5)
19.
Paper supports (pages 2, 3, 6)
20.
Left card holder (pages 2, 3)
21.
Hole in left card holder (page 5)
22.
Type bar guide (page 8)
23.
Paper bail (pages 2, 3, 5, 8)
i-
f
24.
Right card holder (pages 2, 3)
25.
Right margin indicator (page 5)
26.
Card holder graduations (page 3)
-
27.
Table (page 2)
28.
Rear protection plate (page 3)
29.
Right rubber roller (page 2)
30.
Paper release lever (page 3)
31.
Right button for moving the carriage (pages 4, 5)
«
32.
Right margin stop (page 5)
33.
Lever for locking the carriage (page 2)
34.
Small plate for braking run of the carriage (pages 2,
4,
5)
35.
Right platen knob (pages 2, 4, 5)
36.
Right opening in front feed roller cover plate (page 3)
37.
Right ribbon side guide (pages 6, 7)
38.
Right point of the front protection plate (page 7)
39.
Ribbon carrier (page 7)
40.
Selector lever for ribbon colour (page 6)
41.
Key for clearing all tabulator stops (page 8)
42.
Back spacer (page 4)
43.
Margin and jammed type bar release key (page 6)
44.
Key for clearing individual tabulator stops (page 8)
45.
Right shift key (page 4)
46.
Space bar (page 4)
