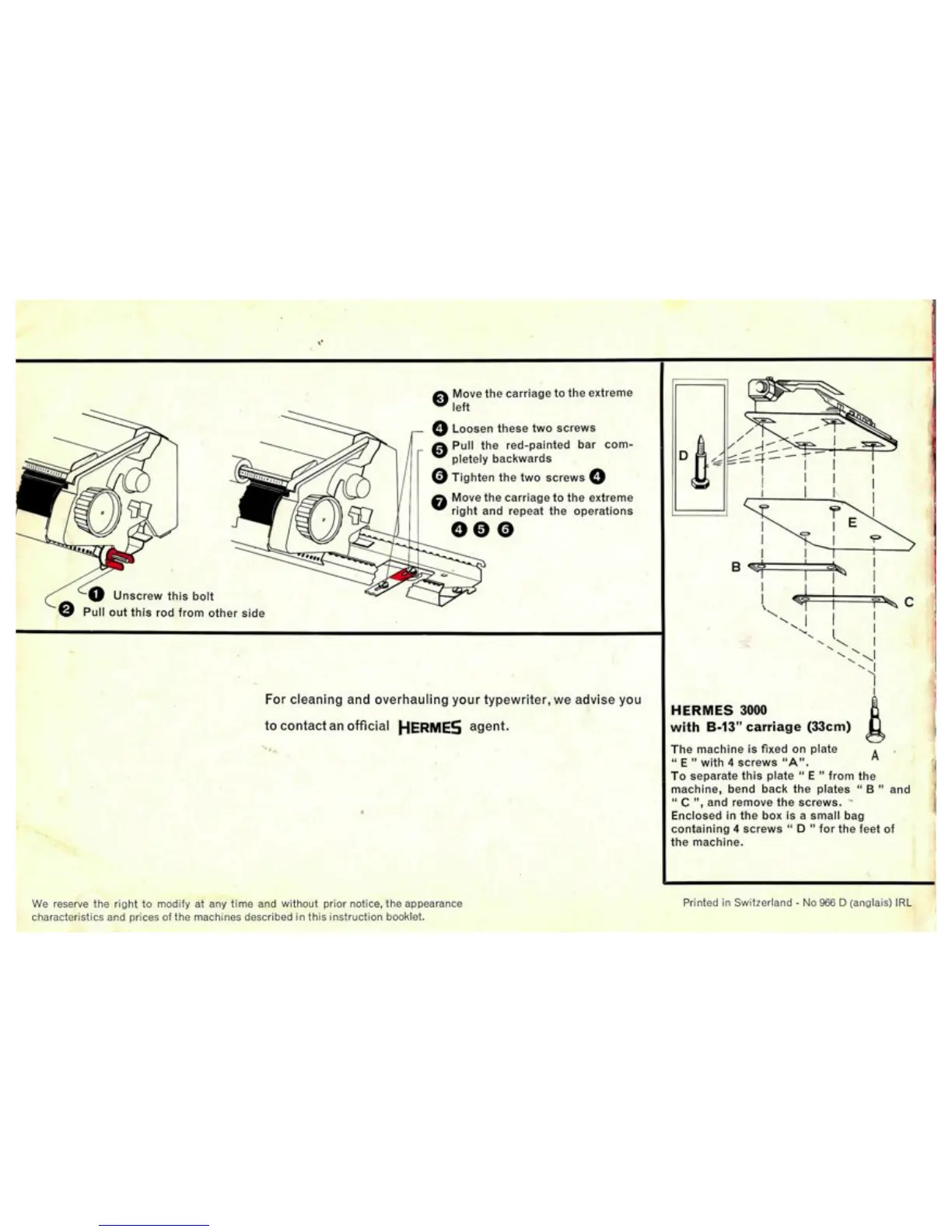

Unscrew this bolt
0
Pull out this rod from other side
g\
Move the carriage to the extreme
^left
Q
Loosen these two screws
Q
Pull the red-painted bar
com-
™
pletely backwards
Q
Tighten the two screws
Q
A
Move the carriage to the extreme
™
right and repeat the operations
oo
o
'
For cleaning and overhauling your typewriter, we advise you
-
to contact
an
official HERMES
agent.
.
i
A
3
I
I
A
.'
HERMES 3000
with
B-13"
carriage (33cm)
The machine is fixed on plate
"
E
"
with 4 screws
"A".
To separate this plate
"
E
"
from the
machine, bend back the plates
"
B " and
"
C ", and remove the screws. *•
Enclosed in the box is a
small
bag
containing 4 screws
"
D " for the feet of
the machine.
I
m
i
We reserve the right to modify at any time and without prior notice, the appearance
characteristics and prices of the machines described in this instruction booklet.
