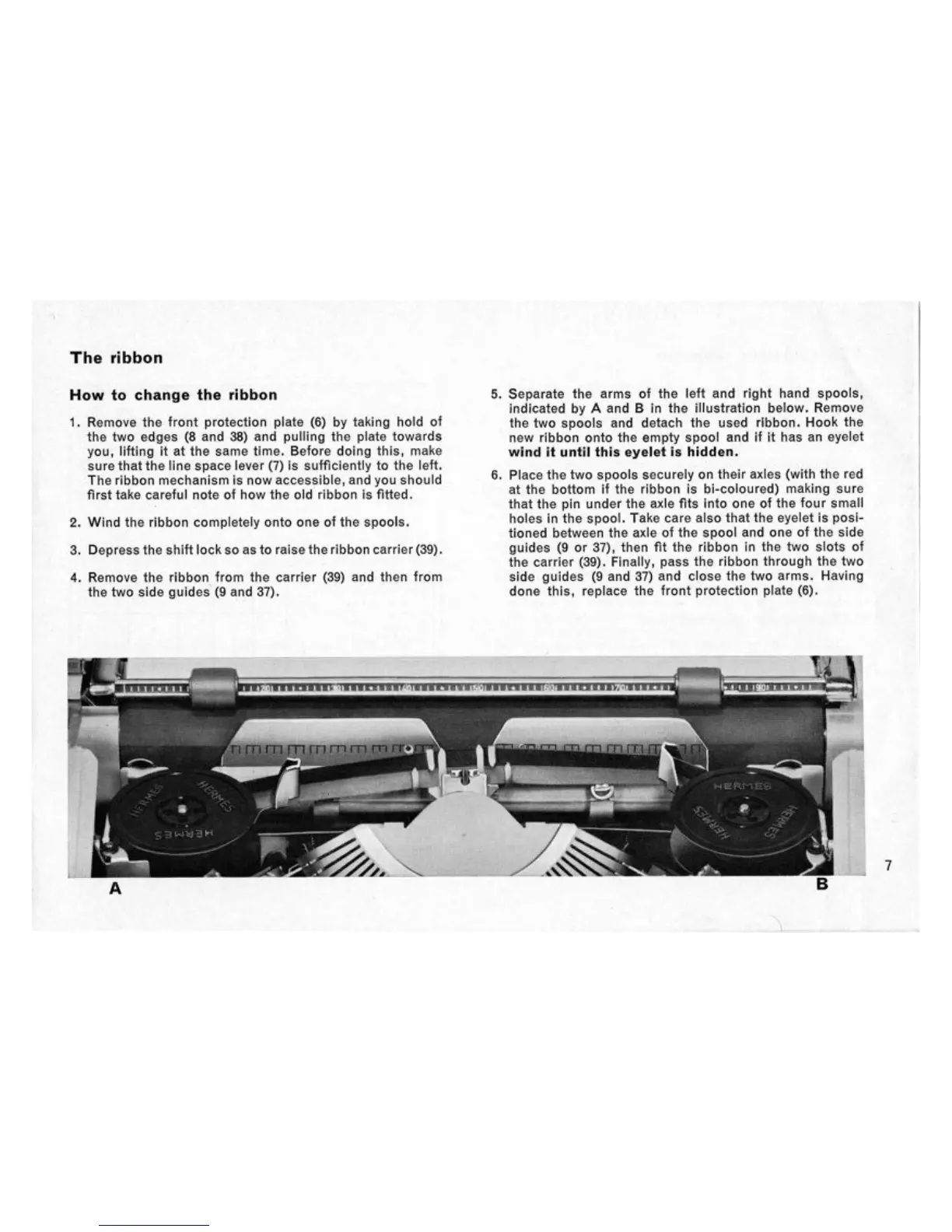

The ribbon
How
to
change
the
ribbon
1.
Remove
the
front protection plate
(6) by
taking hold
of
the
two
edges
(8 and 38) and
pulling
the
plate towards
you,
lifting
it at the
same time. Before doing this, make
sure that
the line space lever
(7) is
sufficiently
to the
left.
The ribbon mechanism
is now
accessible, and you should
first take careful note
of how the old
ribbon
is
fitted.
*
2.
Wind
the
ribbon completely onto
one of the
spools.
3. Depress
the
shift lock
so as t o
raise the ribbon carrier (39).
4.
Remove
the
ribbon
from
the
carrier
(39) and
then from
the
two
side
guides
(9 and 37).
5. Separate
the
arms
of the
left
and
right hand spools,
indicated
by A and B in the
illustration below. Remove
the
two
spools
and
detach
the
used ribbon. Hook
the
new ribbon onto
the
empty spool
and if it has an
eyelet
wind
it
until this eyelet
is
hidden.
6. Place
the t wo
spools securely
on
their axles (with
the red
at
the
bottom
if the
ribbon
is
bi-coloured)
making sure
that
the pin
under
the
axle fits into
one of the
four small
holes
in the
spool. Take care also that
the
eyelet
is
posi-
tioned between
the
axle
of the
spool
and one of the
side
guides
(9 or 37),
then
fit the
ribbon
in the two
slots
of
the carrier
(39).
Finally, pass
the
ribbon through
the tw o
side guides
(9 and 37) and
close
the two
arms. Having
done this, replace
the
front protection plate
(6).
::•:-:;>-:
