VTPH-2 Vacuum Tube Phono Preamplifier Owners Manual
10
Power switch: On / Off
AC polarity: Allows the user to select the AC polarity offering
the best performance. Used during set-up of
the unit, and whenever changes are made to the
AC source.
IEC power jack: Used to connect the AC power cord to the unit.
Ground connectors: Used to connect the phono ground bleed wire to
the unit. Connects to the star ground system in
the unit.
MC inputs RCA jacks: Used to connect to moving coil cartridge.
MC load RCA jacks: Used to connect Male RCA plugs with load
resistors for moving coil cartridge
Moving coil/ Used to change from moving coil
Moving magnet to moving magnet mode
Mode switch:
MM inputs RCA jacks: Used to connect to moving magnet cartridge
Outputs RCA jacks: Used to connect the unit to a line stage
preamplifier

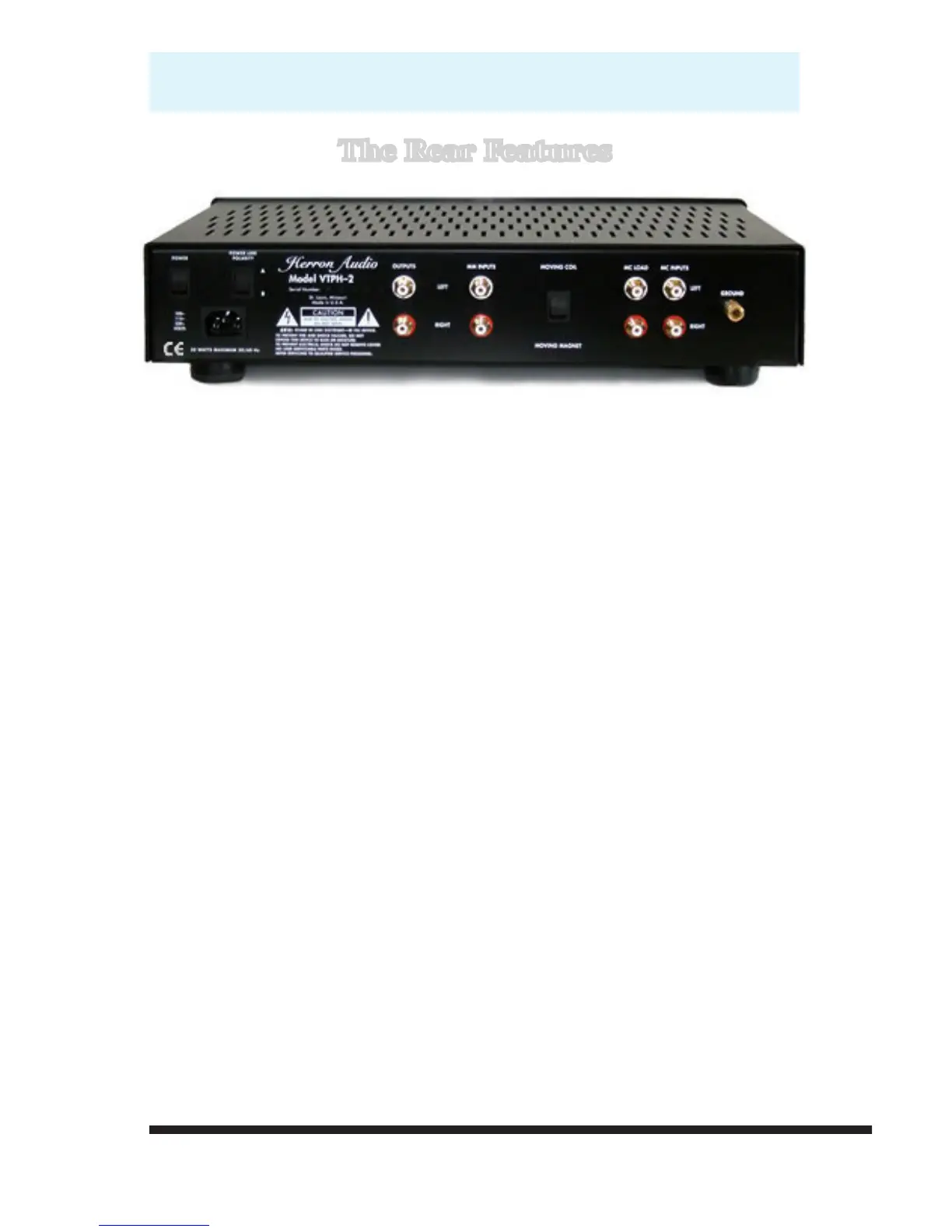

The Rear Features
